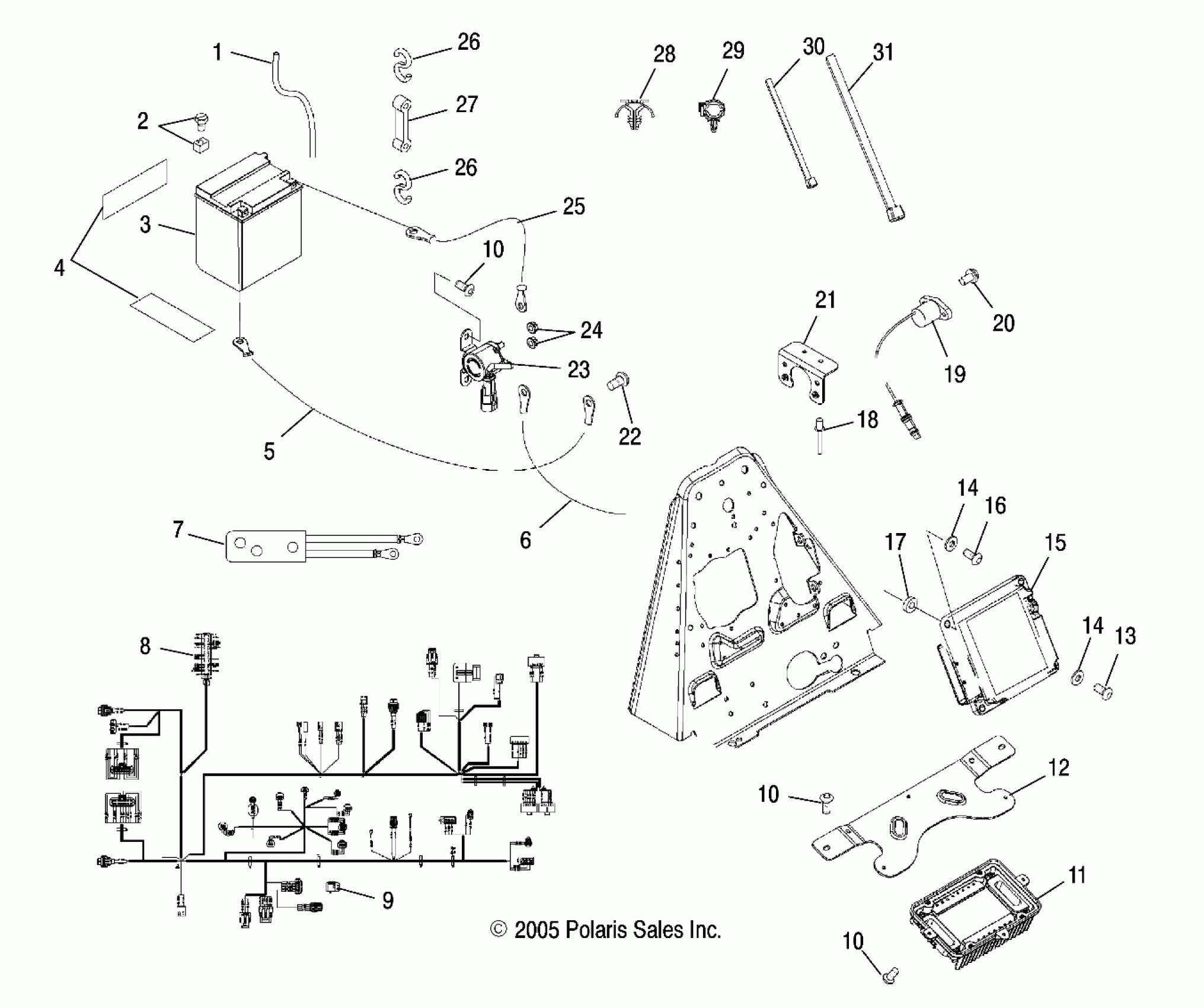

Polaris SPORTSMAN 500 EFI - A06MH50AQ ELECTRICAL - A06MH50AQ/AX/AY/AZ/AL/AT (4999200139920013C11) Diagram

#

Description
Price

1

Tube, Battery Vent

5432077

Unavailable

2

Kit, Battery Bolt

2202099

$5.99

3

BATTERY

4010630

$147.60

4

PAD-BATTERY

5810290

$7.27

5

Cable, Battery/Frame

4011481

$19.68

6

Cable, Solenoid/Starter

4010093

$47.99

7

Harness, Winch

2410765

$103.19

8

Kit, Fusible Link, 1.0mm

2202670

$35.99

8

KIT, HARNESS, TPS

2878498

$113.32

8

Kit, Harness, Engine Air Temp

2875900

$123.19

8

Kit, Harness, Engine Map Sensor

2876315

$139.99

8

Kit, Harness, Engine Injector

2875901

$123.19

8

Harness, Main [Incl. 9, Fuse Link Kit, Harness Kits]

2410625

Unavailable

8

Kit, Harness

2203193

$144.99

9

Kit, Harness, Resistor Module

2204890

$127.99

10

SCREW

7512024

$4.79

10

SCREW

7512024

$4.79

10

SCREW

7512024

$4.79

11

Module, Controller

4011226

Unavailable

12

Bracket, Module

5249459

Unavailable

13

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

15

ECM, Service

4012443

Unavailable

16

Screw

7518552

$3.99

17

Washer, Nylon

7555932

$2.39

18

RIVET-3/16-.090-.290

7661637

$1.49

19

Coil, Ignition

4011487

Unavailable

20

Screw

7518196

$1.49

21

Bracket, Coil Mount

5249815

$6.39

22

Bolt

7512232

$1.49

23

Solenoid, Starter

4010947

Unavailable

24

NUT, FLANGE

7547270

$3.99

25

Cable, Battery/Solenoid

4010471

Unavailable

26

Hook, Battery Strap

7010032

$1.59

26

Hook, Battery Strap

7010032

$1.59

27

STRAP, BATTERY HOLDDOWN

5412499

$4.62

28

MOUNT, CABLE TIE

7080965

$7.19

29

CLIP, ROSEBUD

4020139

$4.79

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41
