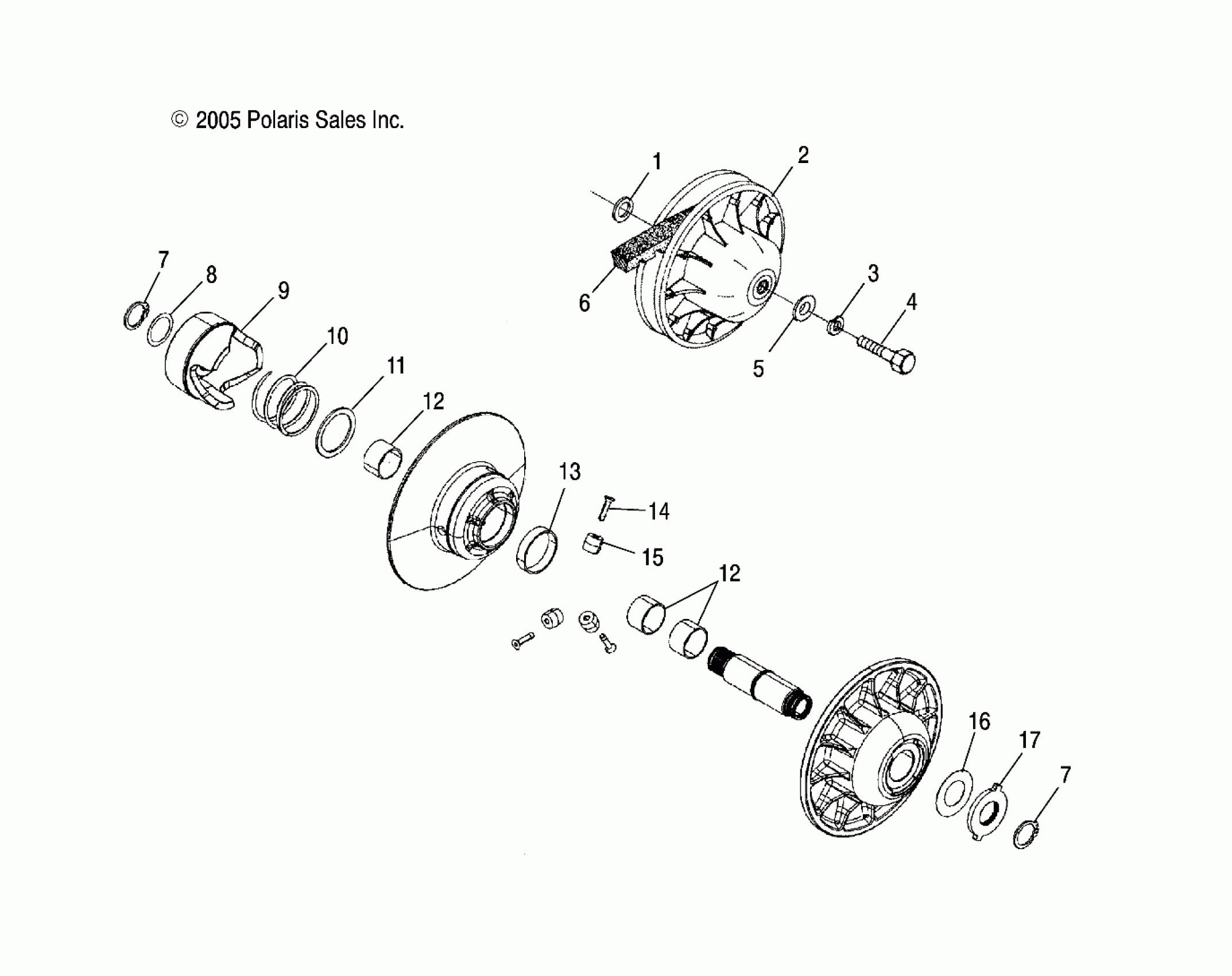

Polaris SPORTSMAN 500 EFI - A06MH50AQ DRIVEN CLUTCH - A06MH50AQ/AX/AY/AZ/AL/AT (4999200139920013C06) Diagram

#

Description
Price

1

BUSHING

7556120

Unavailable

2

Asm., Driven Clutch [Incl. 7,8,11-17]

1322408

Unavailable

3

WASHER, SPRING LOCK

7552901

$1.49

4

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

5

Washer, Domed

5220646

$2.39

6

Belt, Drive

3211091

$79.99

7

Ring, Retaining

7710448

$3.19

7

Ring, Retaining

7710448

$3.19

8

SPACER, .020

5210752

$1.59

9

Ramp, Stationary, Brake

5131674

$83.99

10

Spring, Driven, White/Yellow

7041635

$47.99

11

WASHER-2.06X2.62X.105-Y

5211115

$3.99

12

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

13

Bearing

3585710

$19.99

14

Screw

7517323

$13.59

15

Roller, Taper

1321977

$31.99

16

Washer

7556203

Unavailable

17

Plate, Driven Clutch

5247804

$11.19
