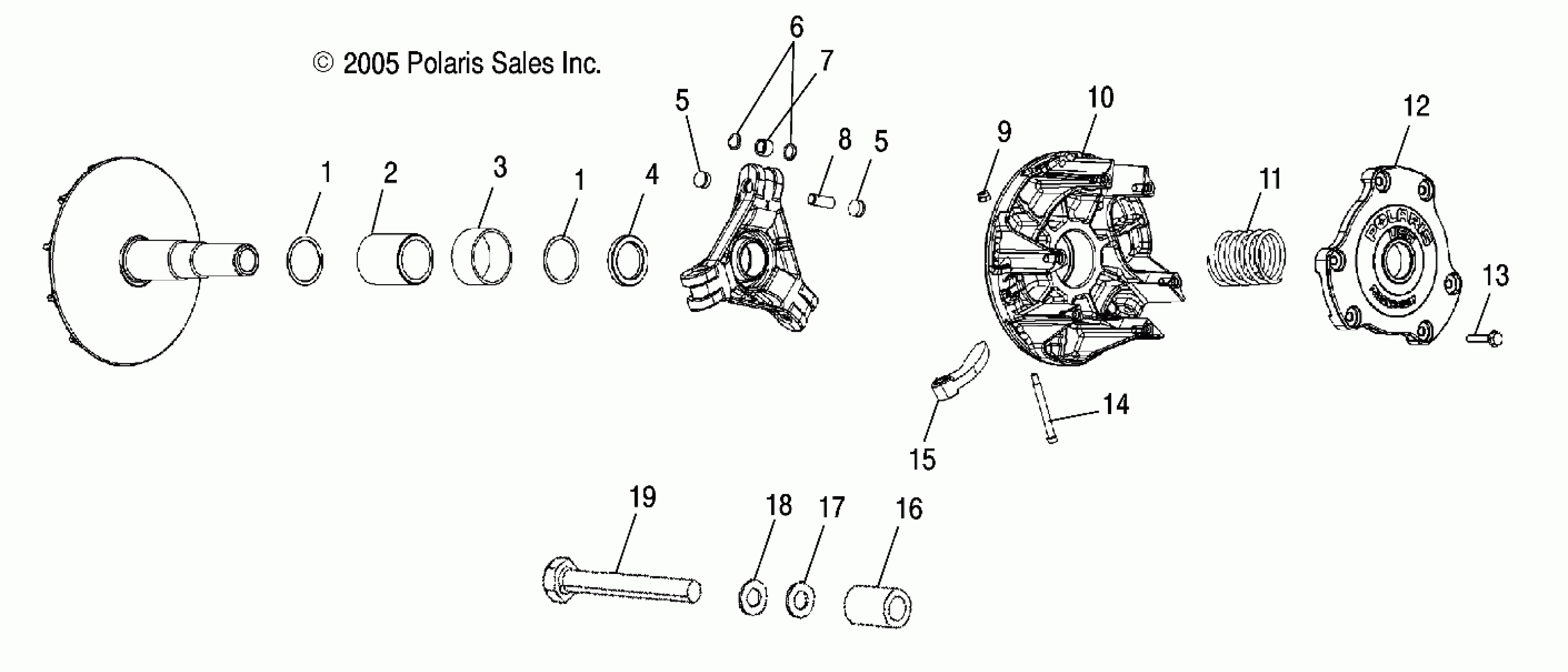

Polaris SPORTSMAN 500 EFI - A06MH50AQ DRIVE CLUTCH and MOUNTING - A06MH50AQ/AX/AY/AZ/AL/AT (4999200229920022C05) Diagram

#

Description
Price

-

Asm., Drive Clutch [Incl. All Less 11,15]

1322555

$562.31

1

WASHER-CLUTCH,VESPEL

7556335

$6.39

1

WASHER-CLUTCH,VESPEL

7556335

$6.39

2

ASM., CLUTCH

1520836

$139.99

3

BEARING

3514492

$31.99

4

Spacer

5631674

Unavailable

5

BUTTON, CLUTCH

5431936

Unavailable

5

BUTTON, CLUTCH

5431936

Unavailable

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

PIN-ROLLER

5020422

$2.39

9

NUT, FLEXLOC

7541906

$3.19

10

ASM., SHEAVE

-------

Unavailable

11

SPRING, CLUTCH

7041157

$47.99

12

Bearing, Cover

3576510

$9.59

13

SCREW

7518062

$4.79

14

BOLT, SHOULDER

7512266

$3.19

15

WEIGHT, SHIFT, 10-WHF

5632283

$41.79

16

BUSHING-.437 X.770 X.50

5430261

$7.19

17

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

18

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

19

BOLT

7512566

$30.79
