- SPORTSMAN 500 EFI - A06MH50AQ
CYLINDER - A06MH50AQ/AX/AY/AZ/AL/AT (4999204069920406D13)

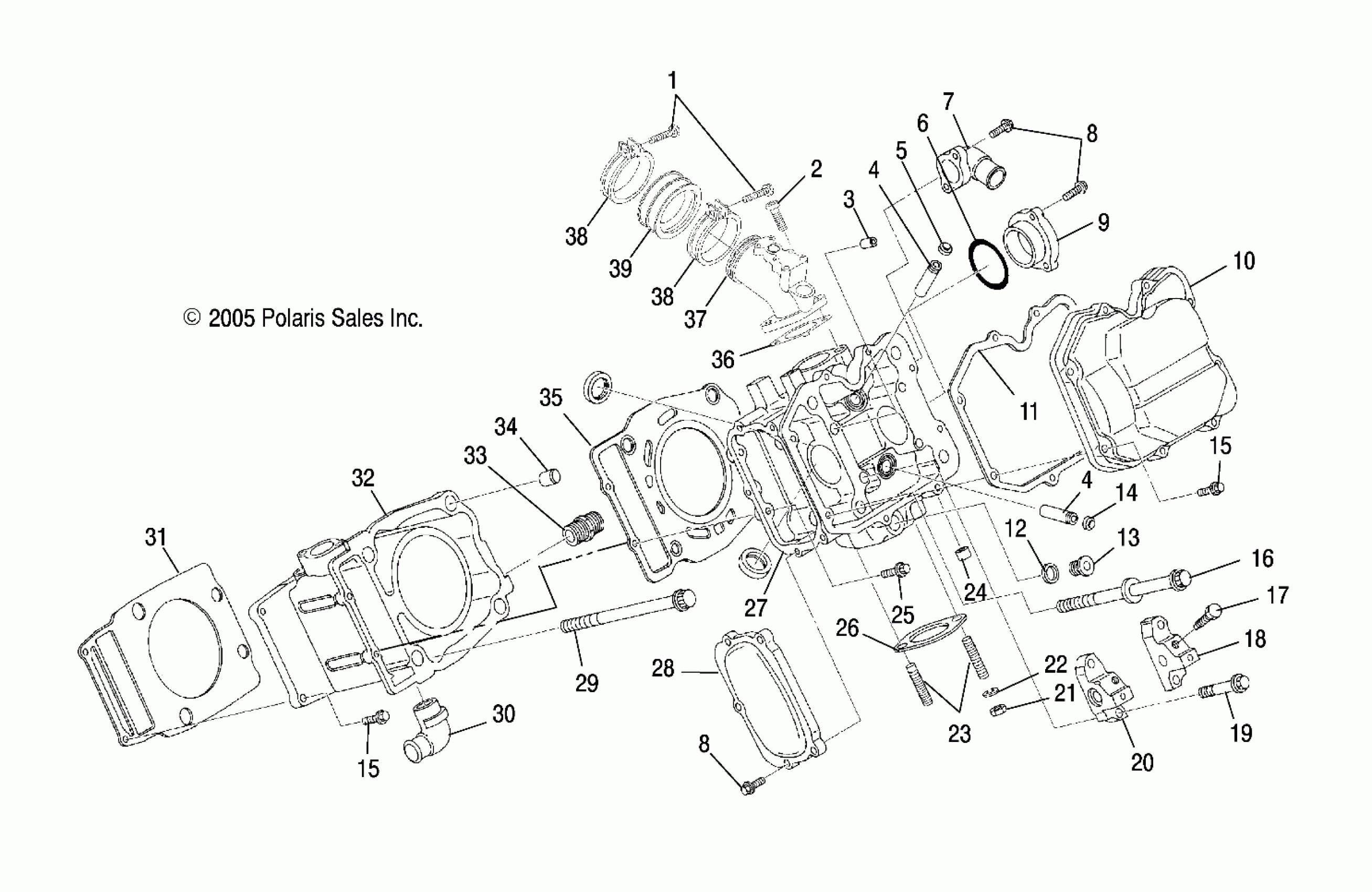

Polaris SPORTSMAN 500 EFI - A06MH50AQ CYLINDER - A06MH50AQ/AX/AY/AZ/AL/AT (4999204069920406D13) Diagram
#
1
ASM., SCREW AND WASHER
3081497
$2.39
2
BOLT, SOCKET HEAD
3081330
$3.99
3
Pin, Straight
3084857
Unavailable
4
GUIDE, VALVE
3084994
$39.99
4
GUIDE, VALVE
3084994
$39.99
5
Seal, Intake Valve
3084858
$13.59
6
O-RING
3084867
$23.99
7
ADAPTER
3084870
$59.99
8
BOLT, FLANGE
3084877
Unavailable
8
BOLT, FLANGE
3084877
Unavailable
9
ADAPTER, CAMSHAFT
3084866
Unavailable
10
COVER, ROCKER
3085073
$75.99
11
GASKET, ROCKER COVER
3085074
$31.99
12
GASKET
3084861
$4.79
13
PLUG
3084860
$7.19
14
SEAL, EXHAUST VALVE
3084859
$23.99
15
Bolt, Flange
3087158
Unavailable
15
Bolt, Flange
3087158
Unavailable
16
BOLT
3084875
Unavailable
17
BOLT, ROCKER SHAFT
3085854
Unavailable
18
SUPPORT, VALVE ROCKER SHAFT
3084864
Unavailable
19
BOLT
3084876
$4.79
20
SUPPORT, VALVE ROCKER SHAFT
3084863
$91.99
21
Nut
3087199
Unavailable
22
Washer, Spring
3080051
Unavailable
23
Stud
3085326
Unavailable
24
PLUG, BLIND
3084862
Unavailable
25
Bolt, Flange
3086781
$4.79
26
GASKET
3085075
$39.99
27
Head, Cylinder [Incl. 3-5,12-14,23,24]
3085527
$712.79
28
COVER, CAMSHAFT
3089242
$55.99
29
BOLT, FLANGE
3084873
Unavailable
30
Pipe, Elbow, 2
3084130
Unavailable
31
Gasket, Cylinder
3085370
$38.60
32
Asm., Cylinder [Incl. 30]
3089256
$417.29
33
Union
3084849
Unavailable
34
PIPE, KNOCK
3087266
Unavailable
35
GASKET, HEAD
3085371
$55.99
36
Gasket, Intake Adaptor
3085655
$35.99
37
Pipe, Intake
3089898
Unavailable
38
Band
3084045
Unavailable
38
Band
3084045
Unavailable
39
Adapter
3089748
Unavailable
