CRANKSHAFT and PISTON - A06MH50AQ/AX/AY/AZ/AL/AT (4999205499920549D06)

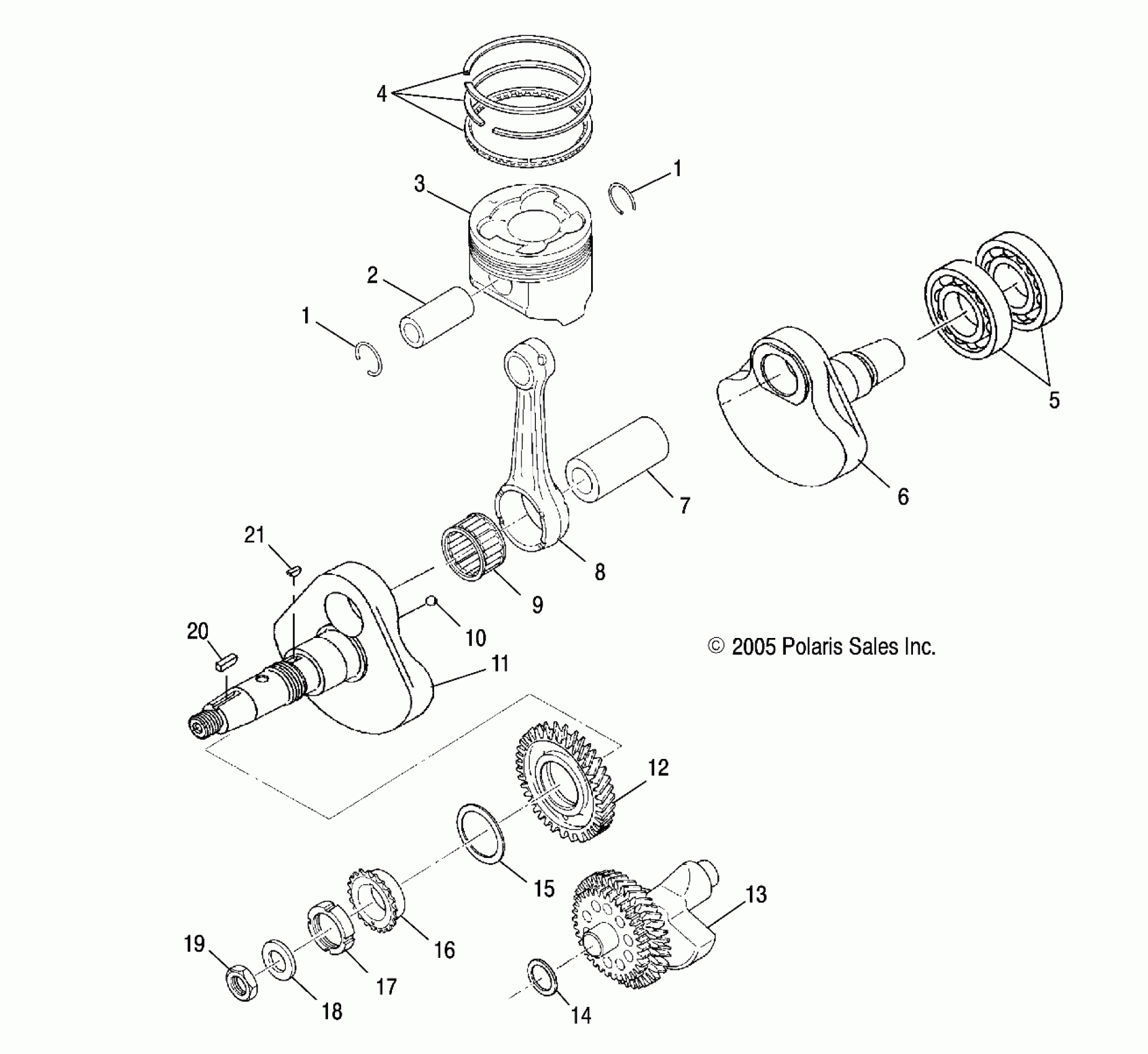

Polaris SPORTSMAN 500 EFI - A06MH50AQ CRANKSHAFT and PISTON - A06MH50AQ/AX/AY/AZ/AL/AT (4999205499920549D06) Diagram
#
Description
Price
1
CLIP
3085534
Unavailable
1
CLIP
3085534
Unavailable
2
PIN, PISTON
-------
Unavailable
3
Set, Piston, .010 Inch/.25MM O/S [Incl. 1]
3087222
$143.99
3
Set, Piston, .020 Inch/.50MM O/S [Incl.1 ]
3087223
$143.99
3
Set, Piston, Standard [Incl. 1]
3087221
Unavailable
4
SET, PISTON, RING, STANDARD
3087224
$59.99
4
SET, PISTON, RING, .010 INCH/.25MM O/S
3087225
$63.99
4
SET, PISTON, RING, .020 INCH/.50MM O/S
3087226
$63.99
5
BEARING, BALL
3085815
$43.99
6
CRANKSHAFT 2
3085812
$690.79
7
Pin, Crank
3085341
Unavailable
8
Rod, Connecting
3085813
Unavailable
9
Bearing, Large End
3085400
$78.56
10
BALL, STEEL
3085024
$5.59
11
CRANKSHAFT 1
3089678
$231.99
11
Asm., Crankshaft [Incl. 6-12]
3089570
Unavailable
12
BALANCE, GEAR 1
3089245
Unavailable
13
Shaft, Balancer
3089773
Unavailable
14
SPACER, 1.2
3084897
$6.39
14
SPACER, 0.8
3084895
$6.39
14
SPACER, 1.0
3084896
$6.39
15
SPACER, 1.2
3084894
$19.99
15
SPACER, 0.6
3240088
$10.39
15
SPACER, 1.0
3084893
$19.99
15
SPACER, 0.8
3084892
$12.79
16
SPROCKET 1
3084882
Unavailable
17
NUT, SLIT
3085528
$35.99
18
WASHER
3086767
Unavailable
19
NUT, LOCK
3083905
Unavailable
20
KEY
3081447
Unavailable
21
KEY, WOODRUFF
3240168
$19.99
