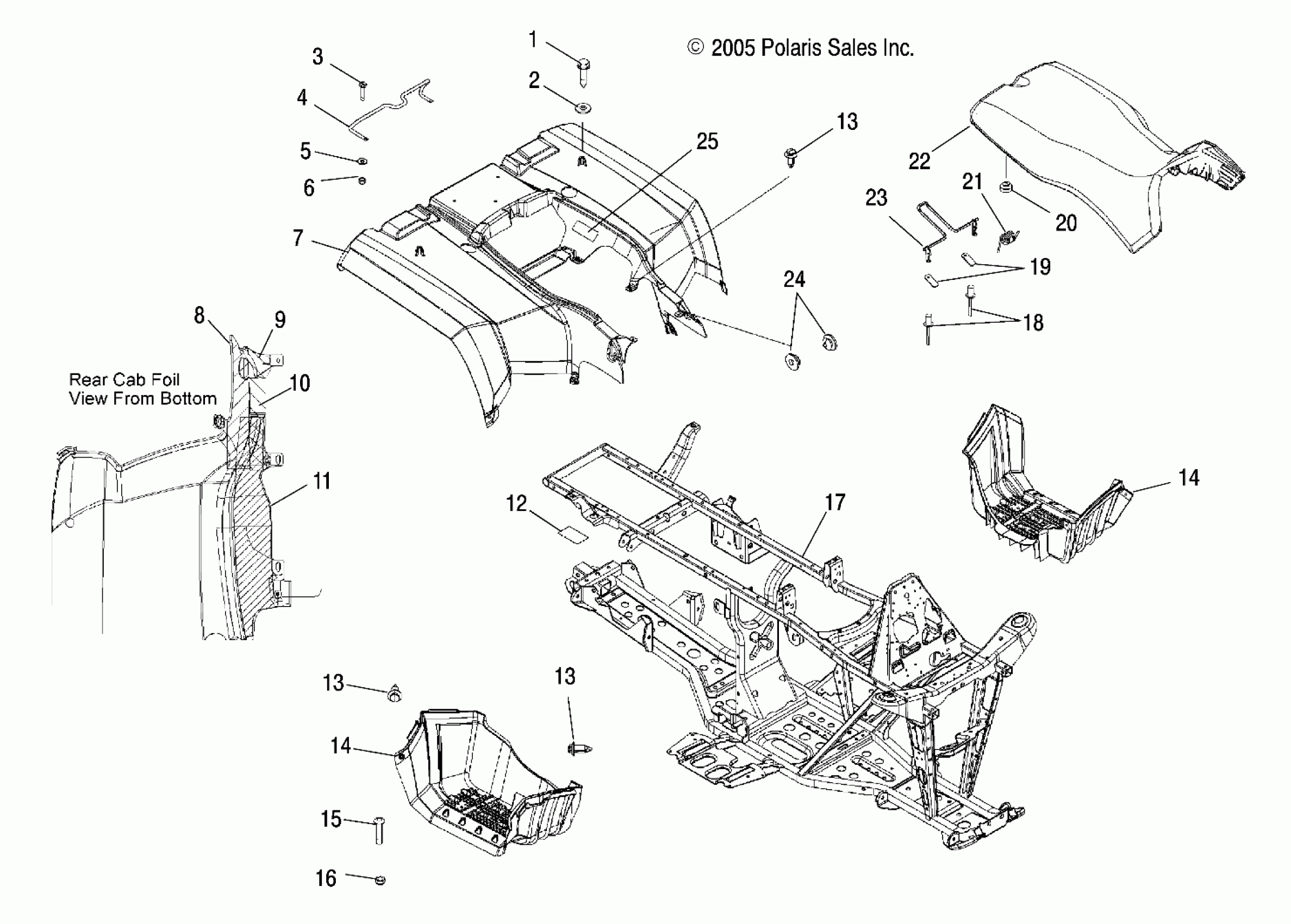

Polaris SPORTSMAN 500 EFI - A06MH50AQ CAB, REAR and SEAT - A06MH50AQ/AX/AY/AZ/AL/AT (4999200139920013A03) Diagram

#

Description
Price

1

Screw

7512095

$4.79

2

Washer

7555798

$1.49

3

Screw

7511930

$2.39

4

Retainer, Seat Latch

5246076

Unavailable

5

WASHER

7555792

$4.79

6

Nut, Nylok

7541925

$1.49

7

CAB, REAR, INDY RED [AZ]

5436319-293

$391.99

7

Cab, Rear, Camo Green Metallic [AX]

5436319-400

Unavailable

7

Cab, Rear, Black Metallic [AY]

5436319-177

$396.65

7

Cab, Rear, NBU Camo [AQ][AT]

5435664-455

Unavailable

7

Cab, Rear, Painted Sunset Red [AL]

5436235-520

Unavailable

8

Foil, Front, Top [If built before 10/05/05]

5812703

Unavailable

8

Foil, Front [If built after 10/05/05]

5813028

$32.37

9

Foil, Edge [If built after 10/05/05]

5813029

$48.39

9

Foil, Front Bottom [If built before 10/05/05]

5812702

Unavailable

10

Foil, Middle [If built after 10/05/05]

5813030

Unavailable

11

Foil, Rear [If built after 10/05/05]

5813043

$31.99

11

Foil, Cab, Rear [If built before 10/05/05]

5812701

Unavailable

12

Decal, Hitch

7170911

Unavailable

13

Rivet

7661855

$1.49

13

Rivet

7661855

$1.49

13

Rivet

7661855

$1.49

14

Footwell, Black, LH

5435354-070

Unavailable

14

Footwell, Black, RH

5435355-070

Unavailable

14

Footwell, Black, LH

5435354-070

Unavailable

14

Footwell, Black, RH

5435355-070

Unavailable

15

SCREW

7517230

$1.49

16

Nut, Nylok

7542122

$1.49

17

Frame, Main, Black

1015330-067

$1,065.99

18

RIVET

7621403

$1.49

19

BRACKET, LEVER RETAINER

5211033

$29.25

20

BUMPER-RUBBER

5412067

$3.99

21

SPRING, LATCH

7041370

$9.59

22

Asm., Seat, Black [AX][AY][AZ][AL]

2683433-070

Unavailable

22

Covering, Seat, Black

2683434-070

Unavailable

22

Asm., Seat, Black [AQ][AT]

2683661-070

Unavailable

23

LATCH, SEAT

1040387

$47.99

24

Grommet, Rubber Mount

5412623

$2.39

25

Decal, Filter Cleaning

7172921

Unavailable
