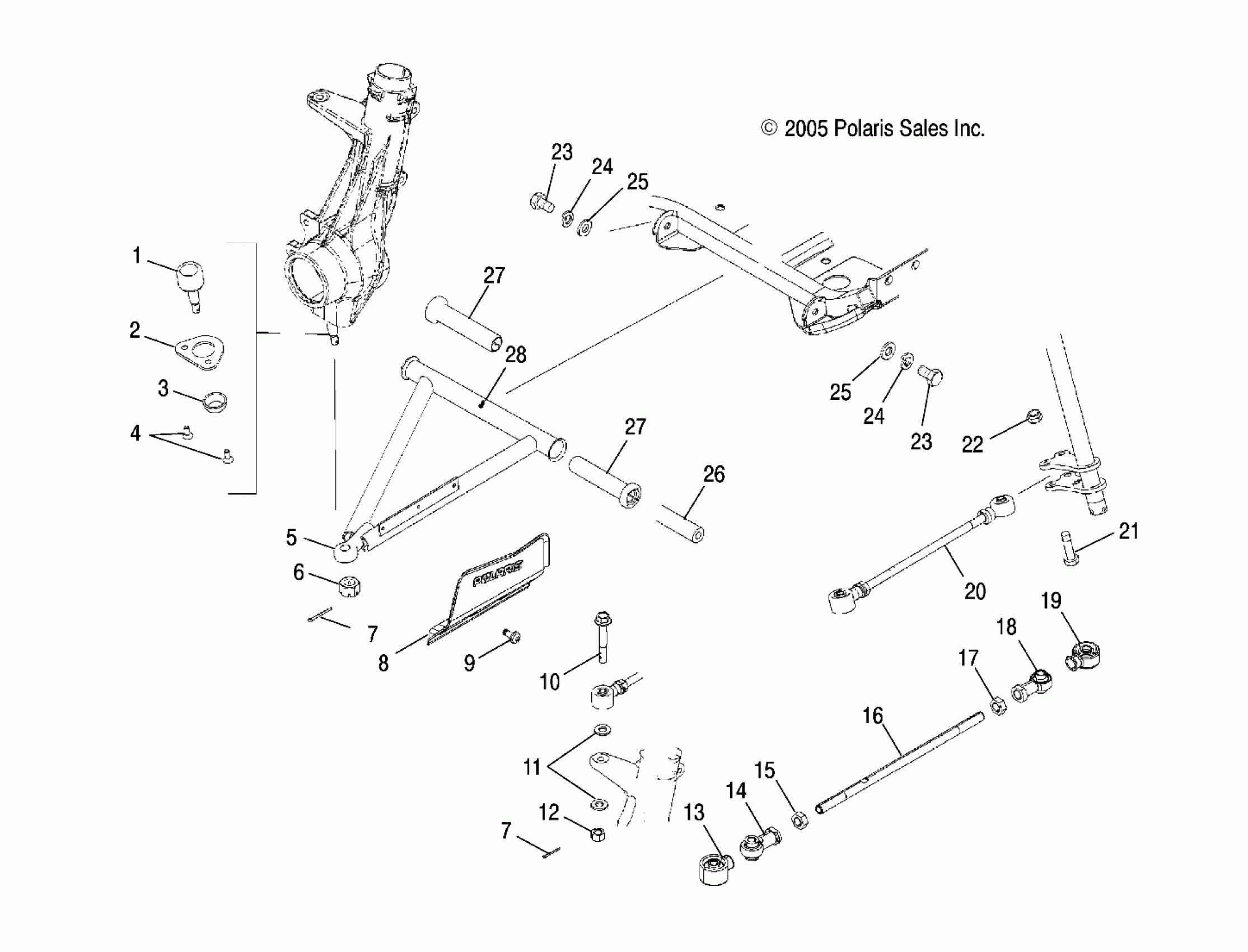

Polaris SPORTSMAN 500 EFI - A06MH50AQ A-ARM/STRUT MOUNTING - A06MH50AQ/AX/AY/AZ/AL/AT (4999200139920013C02) Diagram

#

Description
Price

1

Joint, Ball

7080927

$76.89

2

BRACKET-BALL JOINT

5211121

$31.99

3

Boot, Rubber

5410548

Unavailable

4

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

5

Kit, A-Frame, RH [Incl. 7,23,24,26,27]

2202907

$127.99

5

Kit, A-Frame, LH [Incl. 7,23,24,26,27]

2202906

$127.99

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

Pin, Cotter

7661203

$1.49

7

Pin, Cotter

7661203

$1.49

8

Shield, CV Front, Black, LH

5435028-070

$23.99

8

Shield, CV Front, Black, RH

5435029-070

$23.99

9

Screw

7512084

$1.49

10

Bolt

7517909

$5.59

11

Washer

7556099

$1.59

12

Nut

7547177

$2.39

13

Boot, Seal, Rod End (If built after 10/01/05)

5412929

$11.19

13

Boot, Seal, Rod End (If built before 10/01/05)

5411920

Unavailable

14

Rod End, LH (If built after 10/01/05)

7061138

$51.99

14

Rod End, LH (If built before 10/01/05)

7061054

Unavailable

15

Nut, Jam, LH

7547028

$2.39

16

Tie Rod

5134242

$39.99

17

Nut, Jam

7542711

$2.39

18

Rod End, RH (If built after 10/01/05)

7061139

$55.99

18

Rod End, RH (If built before 10/01/05)

7061034

$54.04

19

Boot, Seal, Rod End (If built after 10/01/05)

5412928

$11.32

19

Boot, Seal, Rod End (If built before 10/01/05)

5411291

Unavailable

20

Asm., Tie Rod [Incl. 14-19](If built after 10/01/05)

1822851

$103.99

20

Asm., Tie Rod [Incl. 14-19](If built before 10/01/05)

1821498

Unavailable

21

Screw

7515415

$1.49

22

Nut, Nylok

7542439

$1.49

23

Screw

7512492

$1.49

23

Screw

7512492

$1.49

24

Washer, Spring Lock

7552603

$1.49

24

Washer, Spring Lock

7552603

$1.49

25

WSHR-.813X.406X.105-Y

7555832

$2.39

25

WSHR-.813X.406X.105-Y

7555832

$2.39

26

Shaft, A-Arm

5133806

$30.79

27

Bushing, A-Arm, Long

5434551

$5.01

27

Bushing, A-Arm, Long

5434551

$5.01

28

Fitting, Lubrication

7080433

$1.49
