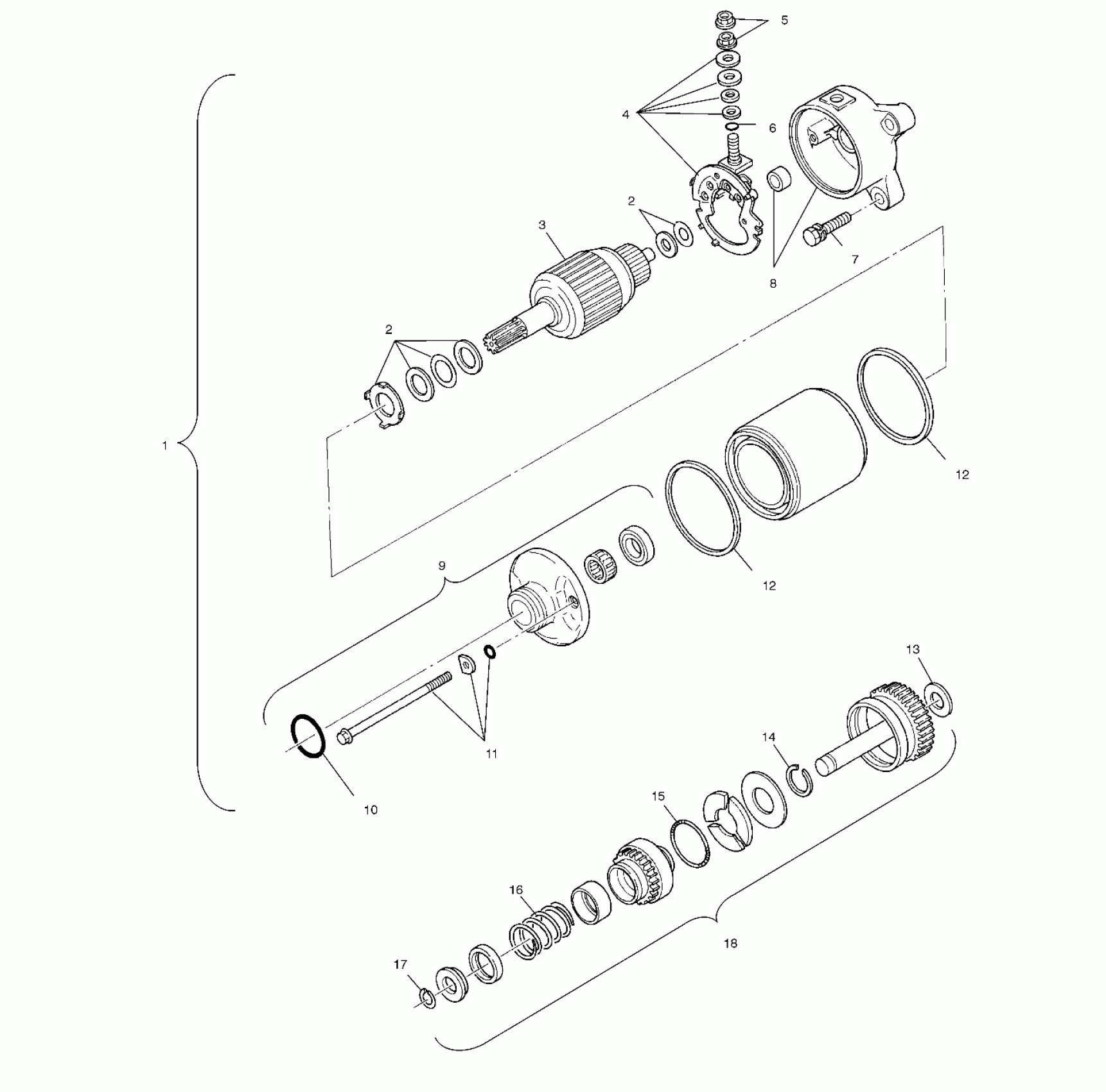

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF STARTING MOTOR - A01CH50EB (4964466446D014) Diagram

#

Description
Price

1

MOTOR, STARTING * (Incl. 2-6,8-12)

3084981

Unavailable

2

Washer Set

3084982

Unavailable

2

Washer Set

3084982

Unavailable

3

ARMATURE ASM.

3085353

Unavailable

4

BRUSH,COMPL.2-POLE *

3084406

Unavailable

5

NUT, FLANGE(10)

3083649

$3.99

6

O-RING

3084408

Unavailable

7

BOLT&WASHER ASM.

3082038

$3.99

8

COVER,REAR,STARTER(MAGNUM)

3085034

$91.99

9

COVER,FRT,STARTER(MAGNUM) * (Incl. 10)

3085033

$137.60

10

O-Ring

3240114

$5.59

11

BOLT ASM, SET (Incl. 6)

3084983

$23.99

12

RING, RUBBER

3084405

Unavailable

12

RING, RUBBER

3084405

Unavailable

13

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

14

CLIP

3084412

$9.59

15

SPRING, WEIGHT

3084411

$15.67

16

SPRING, RETURN

3084410

$2.47

17

CLIP

3084409

$7.19

18

ASM-GEAR SHAFT * (Incl. 13-17)

3087030

Unavailable
