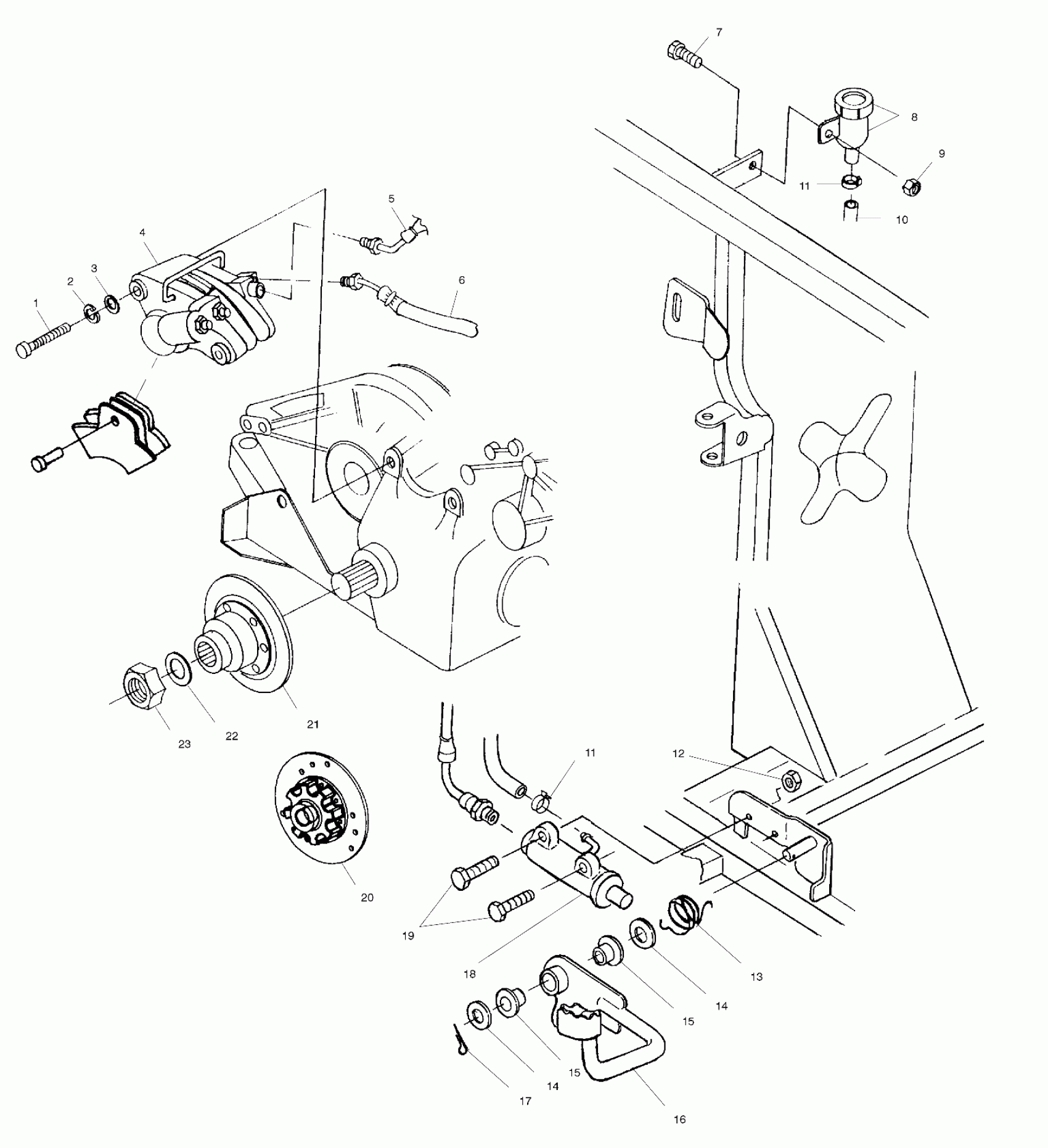

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF REAR BRAKE/FOOT PEDAL - A01CH50AA (4964466446C009) Diagram

#

Description
Price

1

BOLT(10)

7515497

$3.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

4

KIT,SEAL,CALIPER,WW

2201180

$64.75

4

BLEEDER REPLACEMENT,KIT

2201428

$27.99

4

PISTON-STEPPED BORE

2201181

$83.33

4

BRAKE PADS,AFT,WW REAR (Incl. Spacer and Pin)

2201399

$31.75

4

ASM-CALIPER,BRAKE,RR,DH1P,AFT

1910553

$259.99

5

LINE-BRAKE,FT TO TRAN,SS

1910479

$89.03

6

Line, Brake, Stainless Steel (See Controls-Master Cylinder Brake Line Pg. B9,Ref. 8)

-------

Unavailable

7

BOLT(10)

7512240

$3.99

8

RESERVOIR ASM,R.BRAKE

1930854

$35.99

9

NUT(10)

7542153

$1.59

10

HOSE,RESERVOIR,1/4ID,22IN.

1910315

Unavailable

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

12

NUT-LOCK(10)

7542122

$1.49

13

SPRING-TORSION,BRAKE

7041750

$8.79

14

WASHER(10)

7555919

$4.99

14

WASHER(10)

7555919

$4.99

15

BUSHING-PEDAL PIVOT

5431107

$8.79

15

BUSHING-PEDAL PIVOT

5431107

$8.79

16

ROD,BRAKE,BLK.

1910280-067

Unavailable

17

COTTER PIN(10)

7661401

$1.49

18

CYLINDER,MASTER,BRAKE,REAR

1910301

$166.01

19

BOLT(10)

7512247

$2.39

20

DISC,BRAKE,1050 (EB)

1910439

$215.99

21

DISC,ASM,BRAKE,DOM,1050 (AA)(AB)(AE)(AF)(AJ)(AK)

1910440

Unavailable

22

WASHER, SLOTTED(10)

7571620

$7.19

23

NUT,NYLOC

7547046

$5.59
