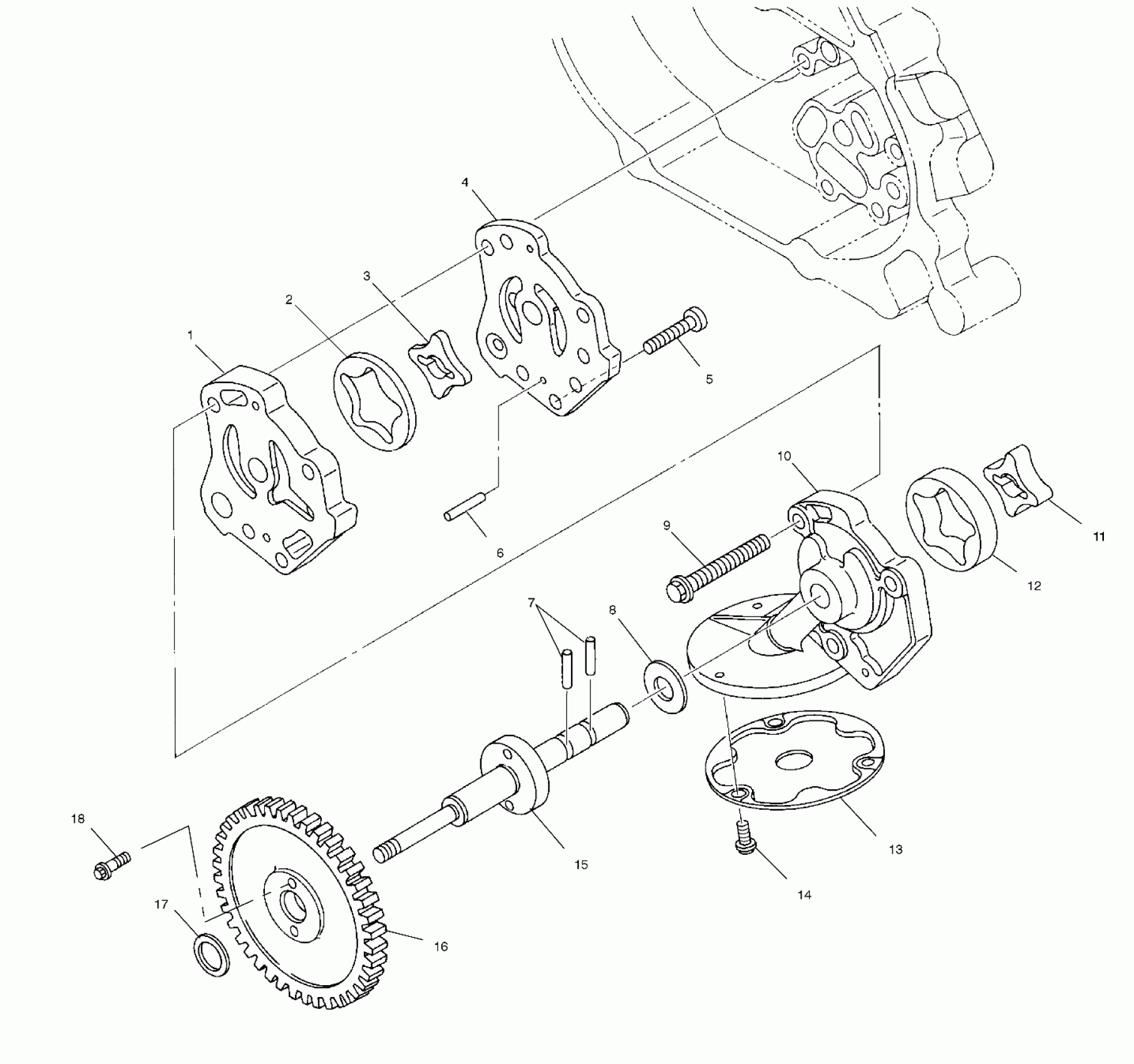

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF OIL PUMP - A01CH50EB (4964466446D011) Diagram

#

Description
Price

1

CASE #2,OILPUMP

3084946

$75.40

2

ROTOR,OUTER,FEED

3084949

$44.51

3

ROTOR,INNER,FEED

3084948

Unavailable

4

PUMP ASM,OIL (Incl. 1-8,10-15)

3085817

Unavailable

4

CASE #1,OILPUMP

3084945

Unavailable

5

SCREW(10)

3085535

Unavailable

6

PIN, DOWEL

3084955

Unavailable

7

PIN, DOWEL

3084954

$7.14

8

WASHER(10)

3084953

$3.17

9

BOLT&WASHER ASM.

3084962

Unavailable

10

CASE #3,OILPUMP

3084947

$83.33

11

ROTOR,INNER,SCAV.

3084950

$32.37

12

ROTOR,OUTER

3090307

$48.56

13

STRAINER UNIT,OIL

3084956

Unavailable

14

SCREW & WASHER(10)

3084205

$3.97

15

SHAFT,PUMP Substituted by 3085858

3085818

Unavailable

16

PUMP GEAR(2)

3085859

Unavailable

17

SPACER (0.8)

3084959

Unavailable

17

SPACER (1.2)

3084961

Unavailable

17

SPACER (1.0)

3084960

Unavailable

18

BOLT,FLANGE

3085820

Unavailable
