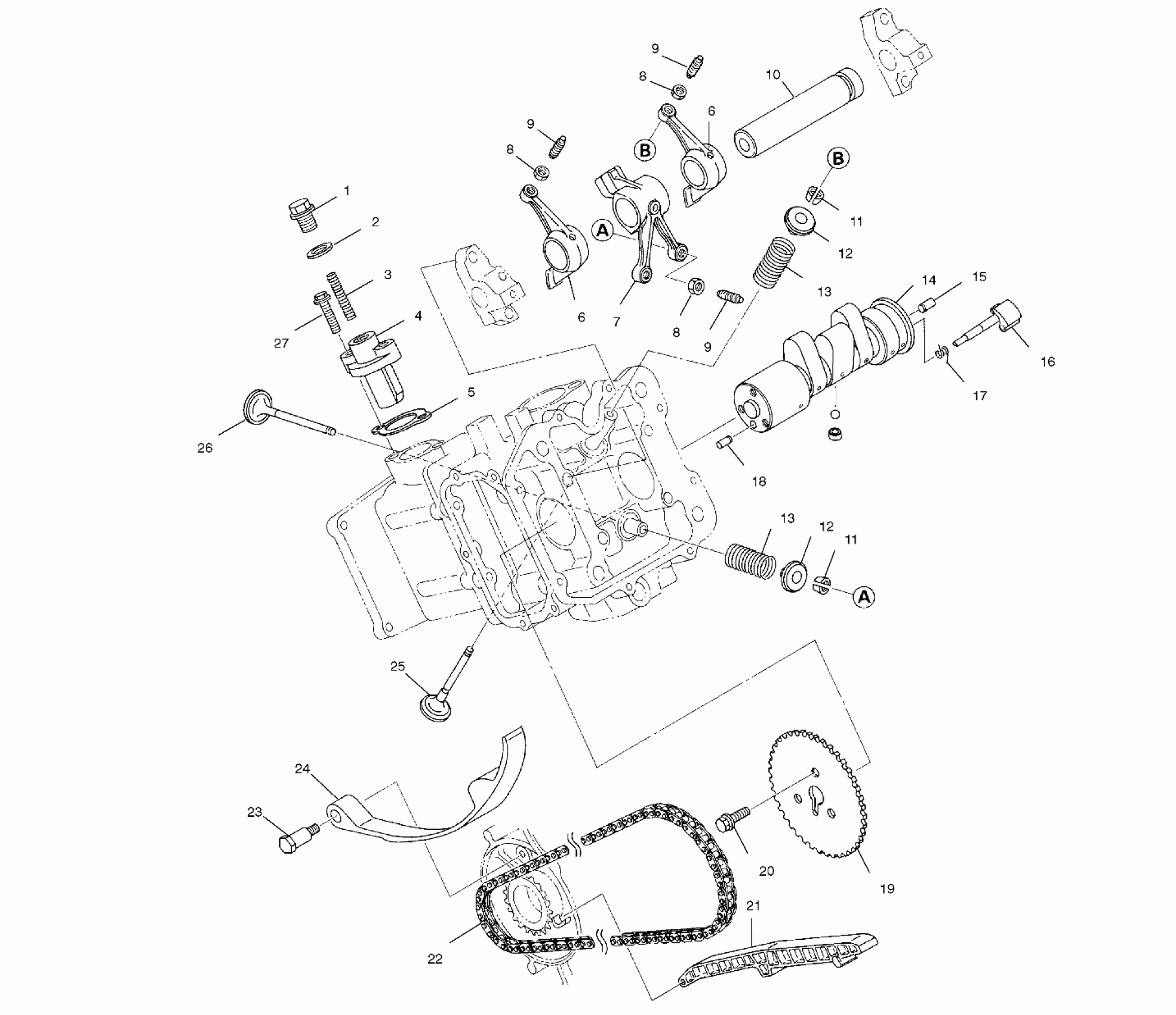

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF INTAKE and EXHAUST - A01CH50EB (4964466446D006) Diagram

#

Description
Price

1

PLUG

3084845

Unavailable

2

Gasket, Plug

3084920

Unavailable

3

SPRING-TENSIONER

3086814

Unavailable

4

TENSIONER,ASM (Incl. 1-3)

3086813

Unavailable

5

GASKET,TENSIONER

3084922

Unavailable

6

ROCKERARM ASM,INTAKE * (Incl. 8,9)

3084910

$115.99

6

ROCKERARM ASM,INTAKE * (Incl. 8,9)

3084910

$115.99

7

ROCKERARM ASM,EXHAUST * (Incl. 8,9)

3084913

$131.99

8

NUT(10)

3084912

$3.99

8

NUT(10)

3084912

$3.99

8

NUT(10)

3084912

$3.99

9

SCREW, ADJ.

3084911

$9.59

9

SCREW, ADJ.

3084911

$9.59

9

SCREW, ADJ.

3084911

$9.59

10

SHAFT,ROCKER

3084909

$51.99

11

COLLET,VALVE

3084908

$3.99

11

COLLET,VALVE

3084908

$3.99

12

SPRING-RETAINER Substituted by 3086893

3087055

Unavailable

12

SPRING-RETAINER Substituted by 3086893

3087055

Unavailable

13

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

13

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

14

CAMSHAFT (Incl. 15-18)

3085855

$303.99

15

DOWEL-PIN

3086838

$7.19

16

LEVER, RELEASE

3085348

Unavailable

17

SPRING,RETURN

3085076

Unavailable

18

PIN,DOWEL

3084899

$7.19

19

SPROCKET 2

3084914

$75.99

20

BOLT&WASHER ASM.

3081657

$4.79

21

GUIDE,CHAIN

3084916

Unavailable

22

CHAIN, TIMING *

3084915

$95.99

23

BOLT,PIVOT,LEVER

3084924

Unavailable

24

LEVER

3084917

$91.99

25

VALVE,INTAKE

3085349

$63.99

26

VALVE, EXHAUST

3085412

$87.99

27

BOLT, FLANGE

3084874

Unavailable
