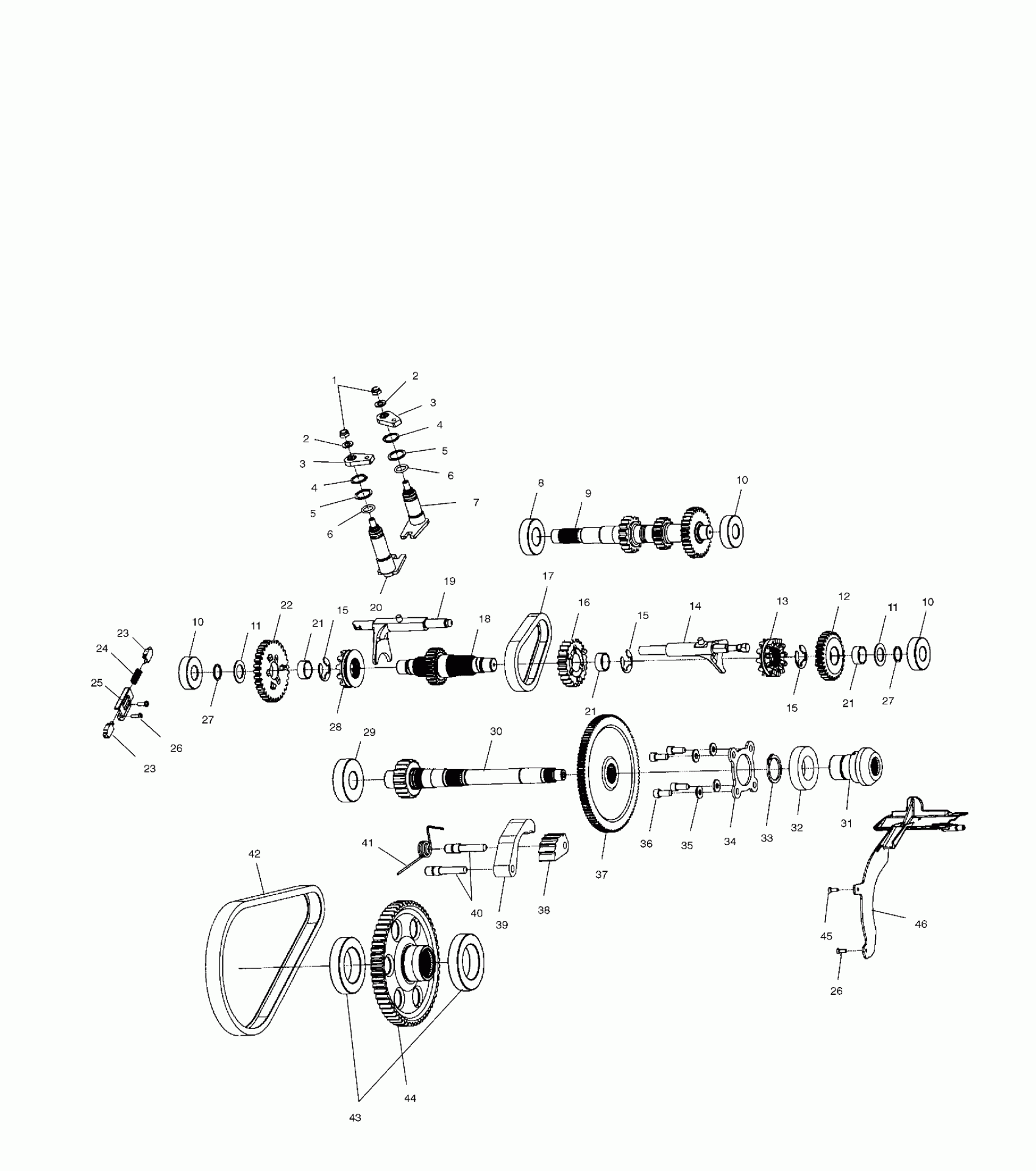

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF GEARCASE (Internal Components) - A01CH50AA (4964466446C013) Diagram

#

Description
Price

-

GEARCASE,ASM,SHAFT,PRD,500 (Incl. 1-37 and all on Gearcase (Cases and Snorkel) Pg. D1)

1341360

Unavailable

1

Nut

3233055

Unavailable

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

Bellcrank

3233153

$27.99

3

Bellcrank

3233153

$27.99

4

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

4

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

5

Washer

3233040

$9.59

5

Washer

3233040

$9.59

6

O-Ring

3233548

$27.99

6

O-Ring

3233548

$27.99

7

SHAFT-SHIFT,12-POINT,SPRING

3233774

Unavailable

8

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

9

SHAFT,INPUT 15T HCR,HLR(DSL)

3233571

Unavailable

10

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

10

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

10

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

11

Washer

3233176

$9.59

11

Washer

3233176

$9.59

12

GEAR,30T,12PT

3233744

Unavailable

13

DOG,ENGAGE,HIGH/REV 12PT

3233743

Unavailable

14

FORK,SHIFT,H/R

3233664

Unavailable

15

RING,RET-RING,EXTERNAL

3233720

$9.59

15

RING,RET-RING,EXTERNAL

3233720

$9.59

15

RING,RET-RING,EXTERNAL

3233720

$9.59

16

SPROCKET,24T

3233719

$109.27

17

CHAIN,SILENT,34P

3233036

Unavailable

18

SHAFT,REVERSE,29T

3233742

$174.60

19

SHIFT FORK,LOW,SUB-ASM

3233775

Unavailable

20

SHAFT-SHIFT

3233661

Unavailable

21

BEARING,NDL,SPLIT CAGE

3233718

$35.99

21

BEARING,NDL,SPLIT CAGE

3233718

$35.99

21

BEARING,NDL,SPLIT CAGE

3233718

$35.99

22

GEAR,36T,12PT

3233745

Unavailable

23

PIN,INTERLOCK

3233308

Unavailable

23

PIN,INTERLOCK

3233308

Unavailable

24

Spring

3233189

Unavailable

25

BRACKET,INTERLOCK

3233309

$20.63

26

SCREW-TAPPING,W/LOCK WASHER

3233747

Unavailable

26

SCREW-TAPPING,W/LOCK WASHER

3233747

Unavailable

27

RING,RETAINING

3233177

$6.39

27

RING,RETAINING

3233177

$6.39

28

DOG,ENGAGEMENT,LOW

3233732

$169.98

29

BEARING

3233020

$47.99

30

SHAFT-CENTER DRIVE

3233715

Unavailable

31

GEAR,16T,SPIRAL BEVEL,SNORKEL

3233365

Unavailable

32

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

33

RING,RETAINING

3233364

$6.39

34

COVER,CTR.DRIVE BRG.

3233263

Unavailable

35

LOCK WASHER(10)

7552901

$1.49

36

Screw

3233262

$1.83

37

GEAR,O/P,100T,HCR

3233360

Unavailable

38

CAM,CHAIN TENSIONER

3233434

$12.79

39

SHOE,CHAIN TENSIONER

3233433

$27.99

40

PIN,DOWEL

3233432

$7.19

41

SPRING,TORSION

3233431

$23.99

42

CHAIN,SILENT

3233430

Unavailable

43

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

44

SPOCKET-60T,36T SP

3233670

Unavailable

45

Screw

3233282

Unavailable

46

DEFLECTOR-OIL

3233669

$7.94
