Description

Price

-

Asm., Gearcase (See Footnote) (See Gearcase -Internal Components Pg. NO TAG for Details)

-------

Unavailable

1

Seal

3233256

Unavailable

1

Seal

3233256

Unavailable

2

Screw

3233026

$6.46

3

DECAL-SWITCH

3233636

Unavailable

4

Screw

3233252

$5.27

5

Seal

3233248

$30.88

5

Seal

3233248

$30.88

6

GEARCASE-LH

3233778

Unavailable

7

FITTING,90 DEG,1/8,(10)

7052095

$4.79

8

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

9

Vent

3233037

Unavailable

10

Dipstick

3233475

Unavailable

11

SCREW

3233749

$5.59

12

SWITCH,ITW 2 POSITION

3233617

Unavailable

13

SWITCH-H/R,ITW

3233635

Unavailable

14

BOLT

3233442

$2.23

15

Washer (See Footnote) (See Gearcase - Internal Components Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

15

Washer (See Footnote) (See Gearcase - Internal Components Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

16

Washer

3233352

$1.83

17

GEAR,31T,SNORKEL

3233476

Unavailable

18

Bearing, Ball (See Footnote) (See Gearcase -Internal Components Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

19

SHAFT,SNORKEL

3233446

Unavailable

20

O-Ring

3233302

Unavailable

21

TUBE,SNORKEL

3233750

$189.59

22

BEARING,BALL

3233305

$31.99

23

SPACER (1.180x.995x.008) NOTE: Ref. 23 indicates choices, may also be used in combinations.

3233357

$21.99

23

SPACER (1.180x.995x.040)

3233355

$2.63

23

SPACER (1.180x.995x.010)

3233353

$2.55

23

SPACER (1.180x.995x.025)

3233354

$2.55

23

SPACER (1.180x.995x.005)

3233356

$2.62

24

RING,RETAINING

3233306

$4.79

25

BOLT,LOCK SNORKEL GEAR

3233444

$2.39

26

Bolt

3233351

$1.99

27

SPACER-SNORKLE CLAMP

3233779

$3.27

28

Bushing

3233292

$31.99

29

Seal

3233293

Unavailable

30

NUT,FLEXLOCK

3233291

$3.03

31

PLATE,COVER

3233294

$11.59

32

WASHER,LOCK

3233295

$1.99

33

Screw

3233296

Unavailable

34

PLUG-HEX FLANGE

3233777

$34.99

35

PLUG, WASHER

3233254

$7.99

36

SCREW3/8 16X7 HXCP(10)

7517844

$5.16

37

GEARCASE-RH

3233776

$984.99

38

PIN, DOWEL

3233247

$7.19

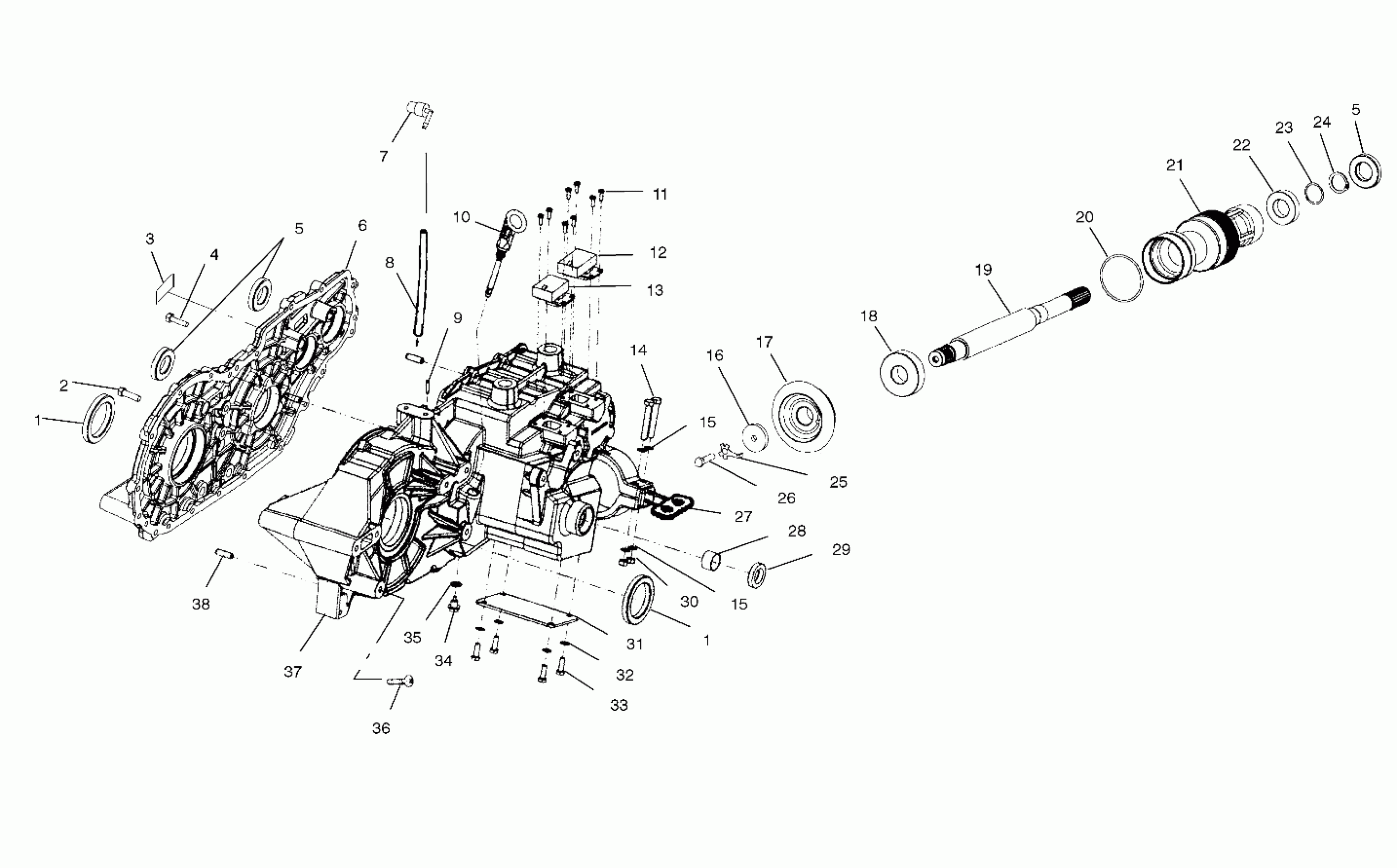

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF GEARCASE (Cases and Snorkel) - A01CH50EB (4964466446D001) Diagram

Asm., Gearcase (See Footnote) (See Gearcase -Internal Components Pg. NO TAG for Details)

Seal

Seal

Screw

DECAL-SWITCH

Screw

Seal

Seal

GEARCASE-LH

FITTING,90 DEG,1/8,(10)

FUEL LINE,1/8 ID,600 CM.

Vent

Dipstick

SCREW

SWITCH,ITW 2 POSITION

SWITCH-H/R,ITW

BOLT

Washer (See Footnote) (See Gearcase - Internal Components Pg. NO TAG, Ref. NO TAG)

Washer (See Footnote) (See Gearcase - Internal Components Pg. NO TAG, Ref. NO TAG)

Washer

GEAR,31T,SNORKEL

Bearing, Ball (See Footnote) (See Gearcase -Internal Components Pg. NO TAG, Ref. NO TAG)

SHAFT,SNORKEL

O-Ring

TUBE,SNORKEL

BEARING,BALL

SPACER (1.180x.995x.008) NOTE: Ref. 23 indicates choices, may also be used in combinations.

SPACER (1.180x.995x.040)

SPACER (1.180x.995x.010)

SPACER (1.180x.995x.025)

SPACER (1.180x.995x.005)

RING,RETAINING

BOLT,LOCK SNORKEL GEAR

Bolt

SPACER-SNORKLE CLAMP

Bushing

Seal

NUT,FLEXLOCK

PLATE,COVER

WASHER,LOCK

Screw

PLUG-HEX FLANGE

PLUG, WASHER

SCREW3/8 16X7 HXCP(10)

GEARCASE-RH

PIN, DOWEL
