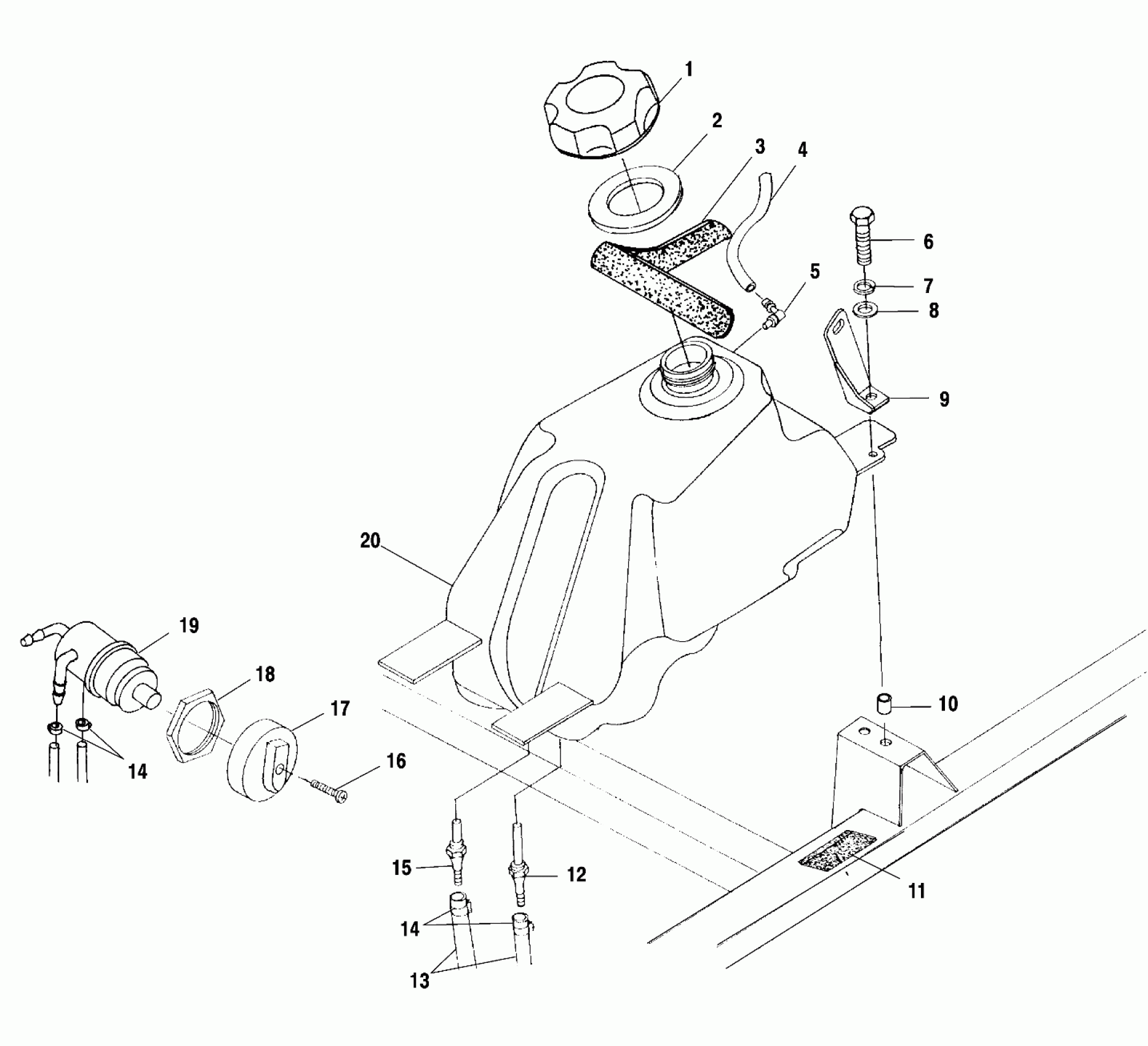

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF FUEL TANK - A01CH50AA (4964466446A012) Diagram

#

Description
Price

1

CAP,GAS TANK

5433687

$20.22

2

GASKET,GAS CAP

5812123

$5.65

3

SEAL-FOAM,24.5 IN

5812210

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$24.27

6

BOLT(10)

7512247

Unavailable

7

LOCK WASHER(10)

7552801

$1.59

8

WASHER(10)

7558301

$1.19

9

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

9

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

10

NUTSERT,HEX(10)

7547069

$3.97

11

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

12

FITTING,FUEL OUT,MAIN,4",Y

7052150

$27.78

13

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

14

HOSE CLAMP, RED

7080003

$1.19

14

HOSE CLAMP, RED

7080003

$1.19

15

FITTING,FUEL OUT,RES.,Z

7052149

$23.81

16

SCREW(10)

7517505

$1.59

17

KNOB,FUEL VALVE

5432559

$11.32

18

NUT,FUELVALVE,ATV

5432733

Unavailable

19

VALVE,3-WAY

7052161

$44.51

20

TANK ASM,FUEL (Incl. 12,15)

2520144

Unavailable
