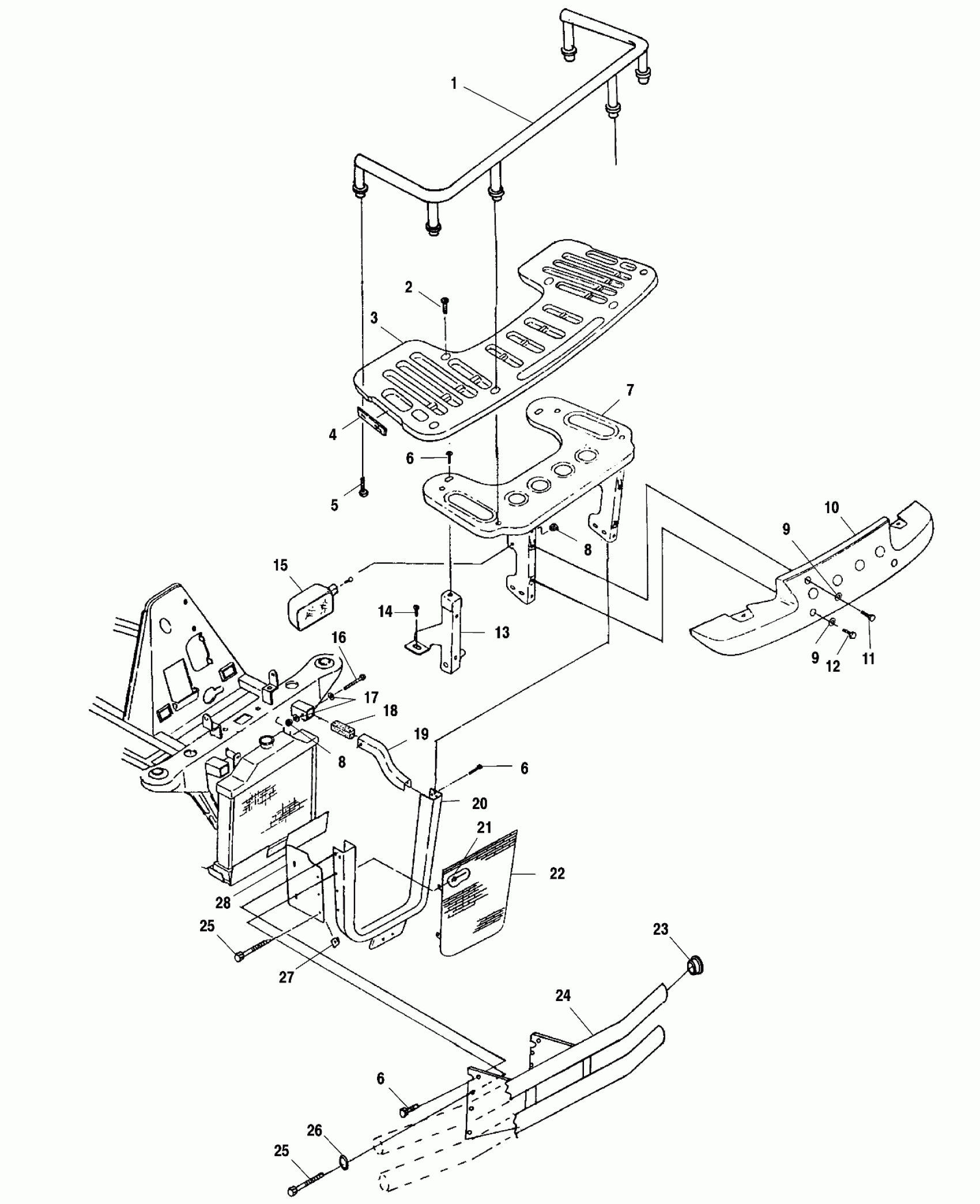

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF FRONT RACK and BUMPER MOUNTING - A01CH50AA (4964466446A007) Diagram

#

Description
Price

1

RACK EXT,FR,LOW,BLK Substituted by 2871499 (AF)(AJ)

1040526-067

Unavailable

2

SCREW(10)

7517685

$1.59

3

RACK ASM,FRONT Substituted by 2670180-070 (Incl. Ref. 4 and Warning Decal)

2670180

Unavailable

4

REFLECTOR AMBER

2670071

Unavailable

5

SCREW(10)

7517208

$1.98

6

SCREW(10)

7515399

$1.19

6

SCREW(10)

7515399

$1.19

6

SCREW(10)

7515399

$1.19

7

KIT,FRT.RACK MOUNT

2200775

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$0.79

8

NUT-5/16-18 NYLOK-Y

7542324

$0.79

9

WASHER(10)

7555954

$4.76

9

WASHER(10)

7555954

$4.76

10

BUMPER,BLK.

5432155-070

$142.86

11

BOLT(10)

7515391

$4.84

12

BOLT(10)

7515390

Unavailable

13

SUPPORT,FRT.RACK,LH,BLK

1013210-067

$38.49

13

SUPPORT,FRT. RACK,RH,BLK

1013211-067

Unavailable

14

BOLT(10)

7512232

$1.19

15

BULB,H/L,27W.HOBBS

4030059

Unavailable

15

H/L ASM,LH,35W

2431014

Unavailable

15

H/L ASM,RH,35W

2431015

Unavailable

16

BOLT(10)

7515382

$2.38

17

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

18

PLUG, FRAME

5810467

Unavailable

19

EXTENSION,FRAME,LH,BLK

5244623-067

Unavailable

19

EXTENSION,FRAME,RH,BLK

5244624-067

Unavailable

20

GUARD,BRUSH,BLK

5241583-067

Unavailable

21

RIVET, POP(50)

7621330

$1.19

22

GRILL,BRUSHGUARD,BLK.

5240591-067

$62.99

23

CAP-BUMPER,END

5433305

$5.65

24

BUMPER-FRONT,RSE,BLK

5243377-067

$169.43

25

SCREW(10)

7512097

$3.97

25

SCREW(10)

7512097

$3.97

26

WASHER

7556034

$2.38

27

NUT(10)

7670094

$5.56

28

SHIELD-RADIATOR,SIDE,LH

5433923

$32.37

28

SHEILD-RADIATOR,SIDE,RH

5433924

$32.37
