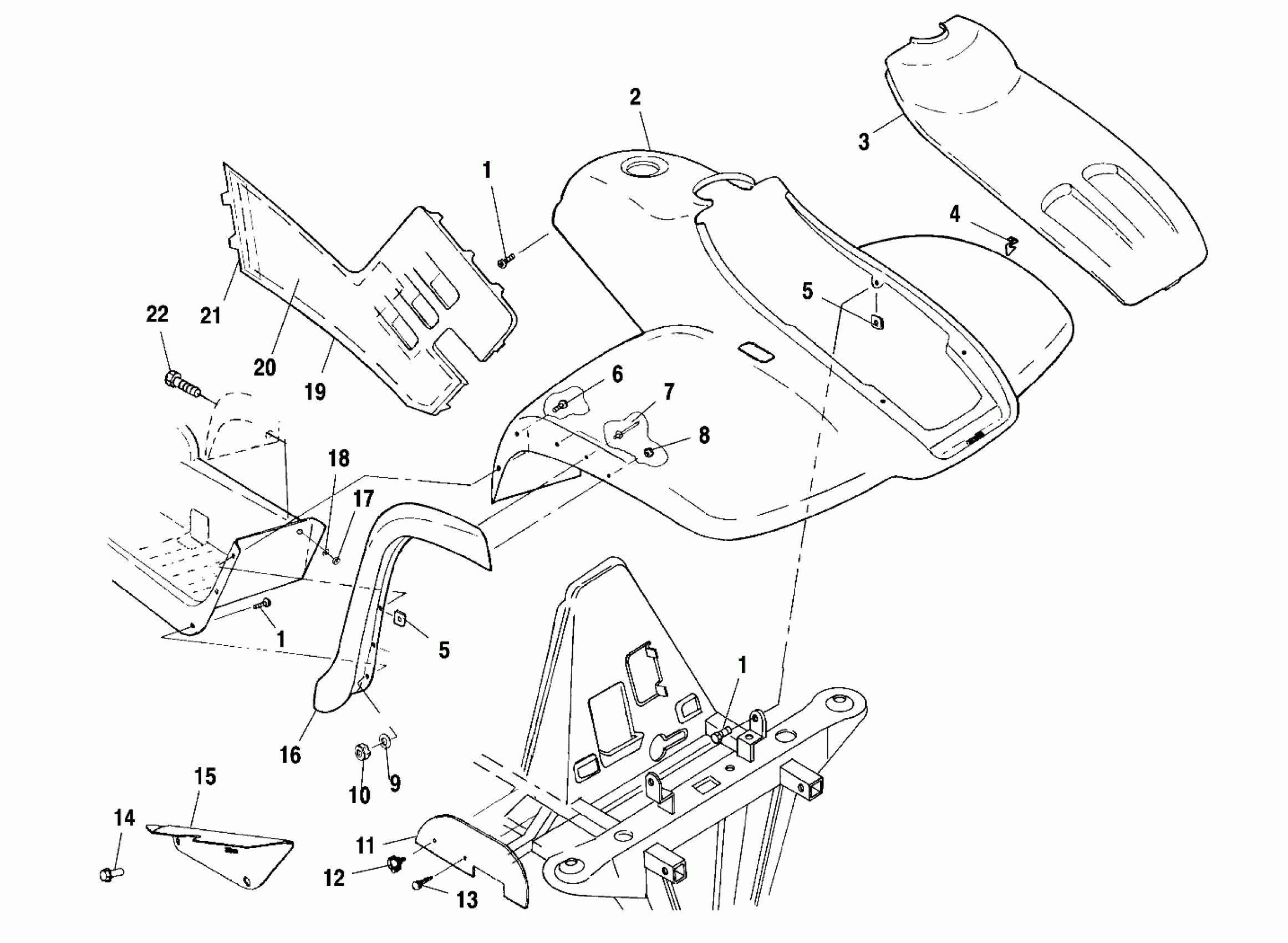

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF FRONT CAB - A01CH50AA (4964466446A005) Diagram

#

Description
Price

1

BOLT(10)

7512232

$1.49

1

BOLT(10)

7512232

$1.49

1

BOLT(10)

7512232

$1.49

2

CAB,FRONT,SVC,GUN METAL (AK)

2632299-317

Unavailable

2

CAB,FRONT,SVC,MED YELLOW (AE)(EB)

2632299-053

Unavailable

2

CAB,FRONT,SVC,B.U. CAMO Substituted by 2632409-283 (AJ)

2632306-283

Unavailable

2

CAB,FRONT,SVC,OLIVE GREEN (AA)

2632299-191

Unavailable

2

CAB,FRONT,SVC,PORCHE RED (AB)

2632299-136

Unavailable

2

CAB,FRONT,SVC,WET CAMO (AF)

2632307-315

$579.99

3

COVER-FRONT,GUNMETAL (AK)

5432088-317

Unavailable

3

COVER,FRONT,MD.YELLOW (AE)

5432088-053

$99.19

3

COVER,FRONT,P.RED (AB)(EB)

5432088-136

Unavailable

3

COVER-FRONT,OLIVE GREEN (AA)

5432088-191

Unavailable

3

COVER-FRONT BASIC,M.O. CAMO (AJ)

5433290-283A

$198.39

3

COVER-FR,WET CAMO (AF)

5433944-315A

Unavailable

4

CLIP,SPRING(10)

7670085

$3.51

5

NUT, SPEED(10)

7670057

$1.49

5

NUT, SPEED(10)

7670057

$1.49

6

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

7

RIVET(50)

7661645

$3.99

8

NUT, PUSH-ON(10)

7670068

$2.39

9

WASHER(10) Substituted by 7558221

7555931

Unavailable

10

NUT-LOCK(10)

7542122

$1.49

11

SHIELD-DEFLECTOR

5811917

$7.43

12

CLIP, PLASTIC(10)

4020139

$4.79

13

CLIP-PLASTIC DART, NYLON

7670088

$1.59

14

SCREW(10)

7517685

$1.59

15

GUARD-SPLASH,SPORTMAN,RH,BLK

5244914-067

Unavailable

15

GUARD-SPLASH,SPORTMAN,LH,BLK

5244913-067

$28.15

16

GUARD-MUD,FRONT,LH,BLK

5431798-070

$79.99

16

GUARD-MUD,FRONT,RH,BLK

5431799-070

$84.99

17

NUT(10)

7541925

$1.49

18

WASHER(10)

7555792

$4.79

19

ASM-PANEL/FOAM,LH,MED YELLOW (AE)

2632289-053

$124.99

19

PANEL/FOIL,ASM,RH,MD.YLW (AE)

2620085-053

Unavailable

19

PANEL/FOIL ASM,RH,P.RED (AB)(EB)

2620085-136

Unavailable

19

PANEL/FOIL ASM,RH,OLV.GRN. (AA)

2620085-191

Unavailable

19

PANEL/FOAM,LH,GUN METAL (AK)

2632289-317

Unavailable

19

PANEL/FOIL,RH,GUN METAL (AK)

2620085-317

$111.99

19

ASM-PANEL/FOAM,LH,MO CAMO (AJ)

2632317-283

$189.43

19

PANEL/FOIL,RH,M.O. CAMO (AJ)

2632065-283

$198.16

19

PANEL/FOAM,LH,OLIVE GRN (AA)

2632289-191

Unavailable

19

PANEL/FOAM,LH,PORCHE RED (AB)(EB)

2632289-136

Unavailable

19

ASM-PANEL/FOAM,LH,WET CAMO (AF)

2632288-315

Unavailable

19

PANEL ASM,FOIL,RH,WET CAMO (AF)

2632272-315

Unavailable

20

FOIL,FOAM,SIDEPANEL

5810996

$55.99

21

FOIL,RH,SIDEPANEL,GEN IV

5811491

Unavailable

22

SCREW(10) Substituted by 7511989

7512085

Unavailable
