- SPORTSMAN 500 DUSE HO - A01CH50AF
ENGINE MOUNTING - A01CH50AA (4964466446A013)

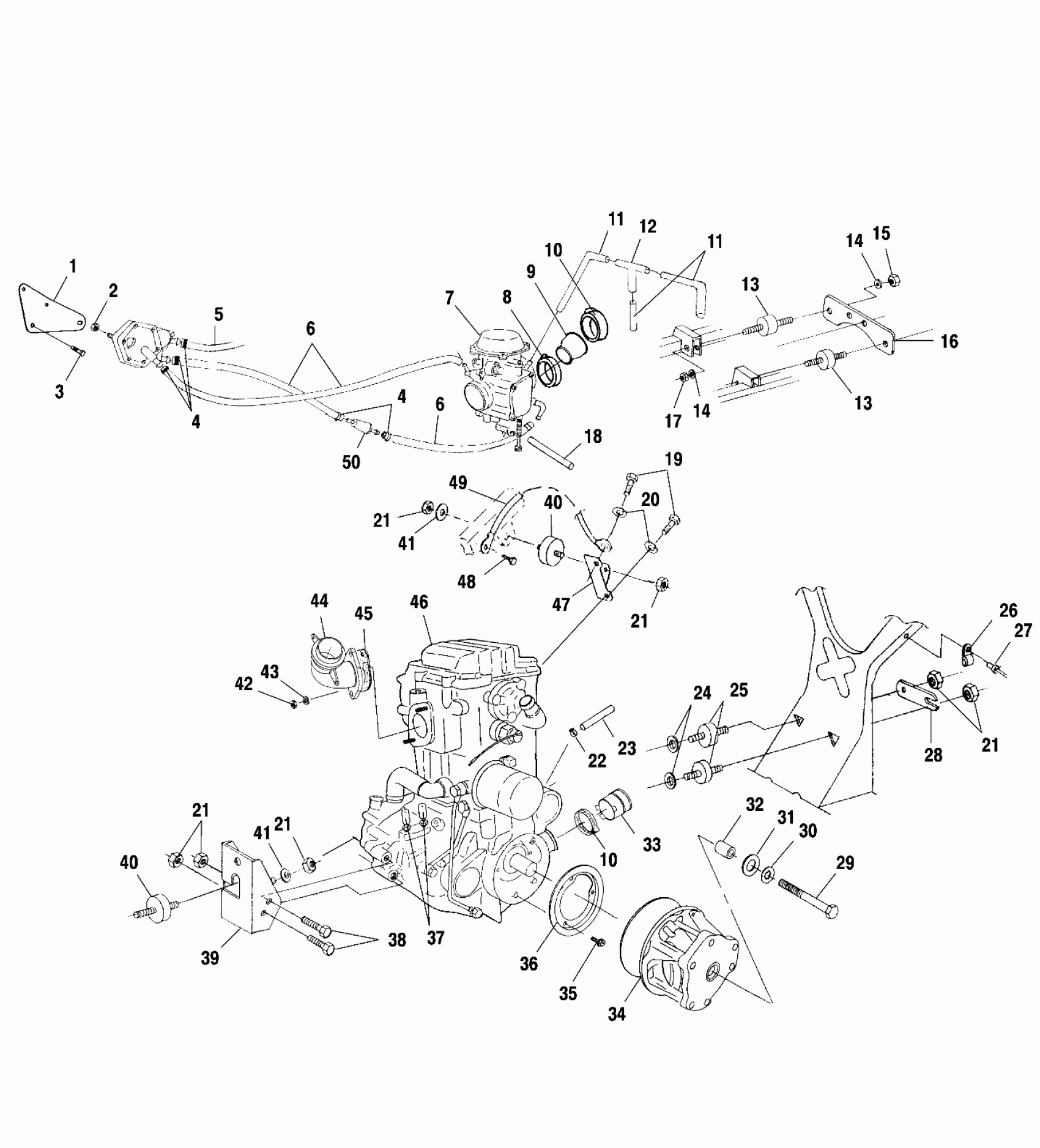

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF ENGINE MOUNTING - A01CH50AA (4964466446A013) Diagram
#
1
STRAP-FUEL PUMP,MTG,BLK
5243829-067
Unavailable
2
NUT-M5X.8,HX NYL-Y
7546601
$1.49
3
SCREW,10-24X5/8
7517756
$1.49
4
HOSE CLAMP, RED
7080003
$1.49
4
HOSE CLAMP, RED
7080003
$1.49
5
HOSE,(.25 IDX1.75"LG.)
5811490
Unavailable
6
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
6
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
7
Asm., Carburetor (See Carburetor Pg. D8, Ref. 18)
-------
Unavailable
8
CLAMP,BAND,NARROW
7080413
$3.19
9
BOOT,CARB (If built before 4/17/00)
5410995
Unavailable
9
BOOT-CARB,40MM (If built after 4/17/00)
5412004
Unavailable
10
CLAMP, NARROW BAND(10)
7080511
$4.79
10
CLAMP, NARROW BAND(10)
7080511
$4.79
11
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
11
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
12
FITTING, TEE
7052075
$9.59
13
Mount, Rubber
3110032
$7.99
13
Mount, Rubber
3110032
$7.99
14
WASHER(10)
7552605
$5.27
14
WASHER(10)
7552605
$5.27
15
NUT HEX(10)
7542105
$3.99
16
STRAP-CARB MNT,BLK
5245055-067
Unavailable
17
NUTSERT,HEX(10)
7547069
$3.99
18
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
19
BOLT(10)
7512315
$4.79
20
LOCK WASHER(10)
7552901
$1.49
21
NUT
7547108
$4.79
21
NUT
7547108
$4.79
21
NUT
7547108
$4.79
21
NUT
7547108
$4.79
21
NUT
7547108
$4.79
22
CLAMP,HOSE,SPRING
7080694
$6.53
23
Hose, Breather (See Air Box Pg. B1, Ref. 17)
-------
Unavailable
24
WASHER, FLAT(10)
7555815
$3.99
25
MOUNT,RUBBER,FRONT
3110046
Unavailable
26
CLAMP,NYLON,CABLE(10)
7080539
$4.79
27
RIVET(50)
7621462
$1.49
28
STRAP,FRAME SUPPORT,BLK
5224658-067
Unavailable
29
BOLT(10)
7512566
$30.79
30
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
31
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
32
BUSHING-.437 X.770 X.50
5430261
$7.19
33
BOOT,CLUTCH INTAKE
5410421
$11.19
34
Asm., Drive Clutch, Braking (See Drive Clutch Pg. C2, Ref. 17)
-------
Unavailable
35
Screw and Washer (See Crankcase Pg. D2, Ref. 6)
-------
Unavailable
36
Bracket, Retainer, Seal (See Clutch Cover Pg. C4, Ref. 21)
-------
Unavailable
37
CLAMP-HOSE,.875-SS
7080474
$8.40
38
BOLT(10)
7515417
$4.79
39
MOUNT,FR.ENGINE,BLK.
5241150-067
Unavailable
40
MOUNT,RUBBER,TOP
3110044
Unavailable
40
MOUNT,RUBBER,TOP
3110044
Unavailable
41
WASHER(10)
7555801
$3.99
41
WASHER(10)
7555801
$3.99
42
Nut (See Cylinder Pg. D4, Ref. 22)
-------
Unavailable
43
Washer (See Cylinder Pg. D4, Ref. 23)
-------
Unavailable
44
MANIFOLD 1.625,BLK
1261043-029
Unavailable
45
Gasket, Exhaust (See Cylinder Pg. D4, Ref. 20)
-------
Unavailable
46
ENG.EH50PLE-04 (EH50PLE013) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for wa
3085822
Unavailable
47
MOUNT,ENG,TOP,BLK
5241453-067
Unavailable
48
BOLT(10)
7512232
$1.49
49
CABLE,GND-ENGINE
4010132
Unavailable
50
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
