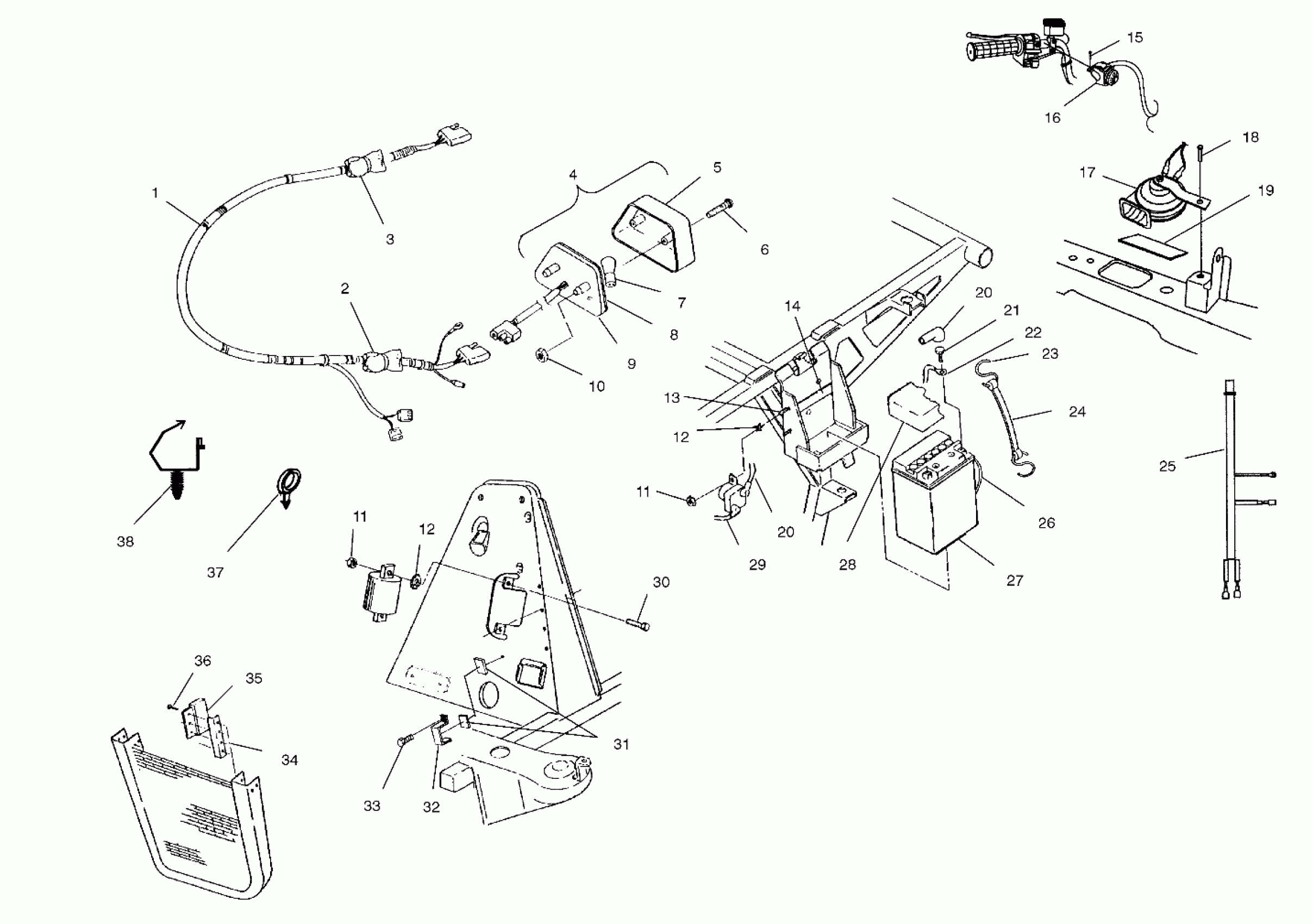

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF ELECTRICAL/TAILLIGHT - A01CH50AA (4964466446C005) Diagram

#

Description
Price

1

HARNESS-WIRE,MAIN,SPSMN 500

2460824

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

4

TAIL LIGHT ASM. (Incl. 5-10)

2432034

$55.99

5

LENS,TAILLIGHT

4032046

$32.37

6

Screw, Taillight

4032029

$4.79

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,TAILLIGHT

4032045

$4.03

9

BACKING,TAILLIGHT

4032064

$83.99

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

11

NUT(10)

7541925

$1.49

11

NUT(10)

7541925

$1.49

12

WASHER(10)

7571602

$4.79

12

WASHER(10)

7571602

$4.79

13

SCREW(10)

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

SCREW,(10) (EB)

7517386

$1.49

16

SWITCH,HORN (EB)

4010311

$59.99

17

HORN (EB)

4010310

Unavailable

18

SCREW(10) (EB)

7512057

$2.38

19

PAD,FUELTANK BRKT. Substituted by 8360026 (EB)

5810317

Unavailable

20

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

20

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

21

BOLT,BATT,KIT(SHORT)

2200361

$3.99

22

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

23

HOOK-BATT.H/D(10)

7010032

$1.59

24

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

25

HARNESS-ADAPTER,HORN (EB)

2460837

Unavailable

26

TUBE,BATTERY VENT

5432077

Unavailable

27

Battery

4140006

$99.99

28

COVER,BATTERY

5431769

$14.39

29

CABLE,SOL/STARTER

4010093

$47.99

30

SCREW(10)

7512007

$3.99

31

PAD,RACK MOUNT

5810455

$3.19

32

BRACKET-CDI

5241416

$5.75

33

SCREW,(10)

7512024

$4.79

34

HEATSINK RECT.

5131036

Unavailable

35

RECTIFIER,FULL WAVE

4060173

Unavailable

36

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

37

CLIP,ROSEBUD

4020149

$6.39

38

CLIP-ROUTING

7670109

$2.39
