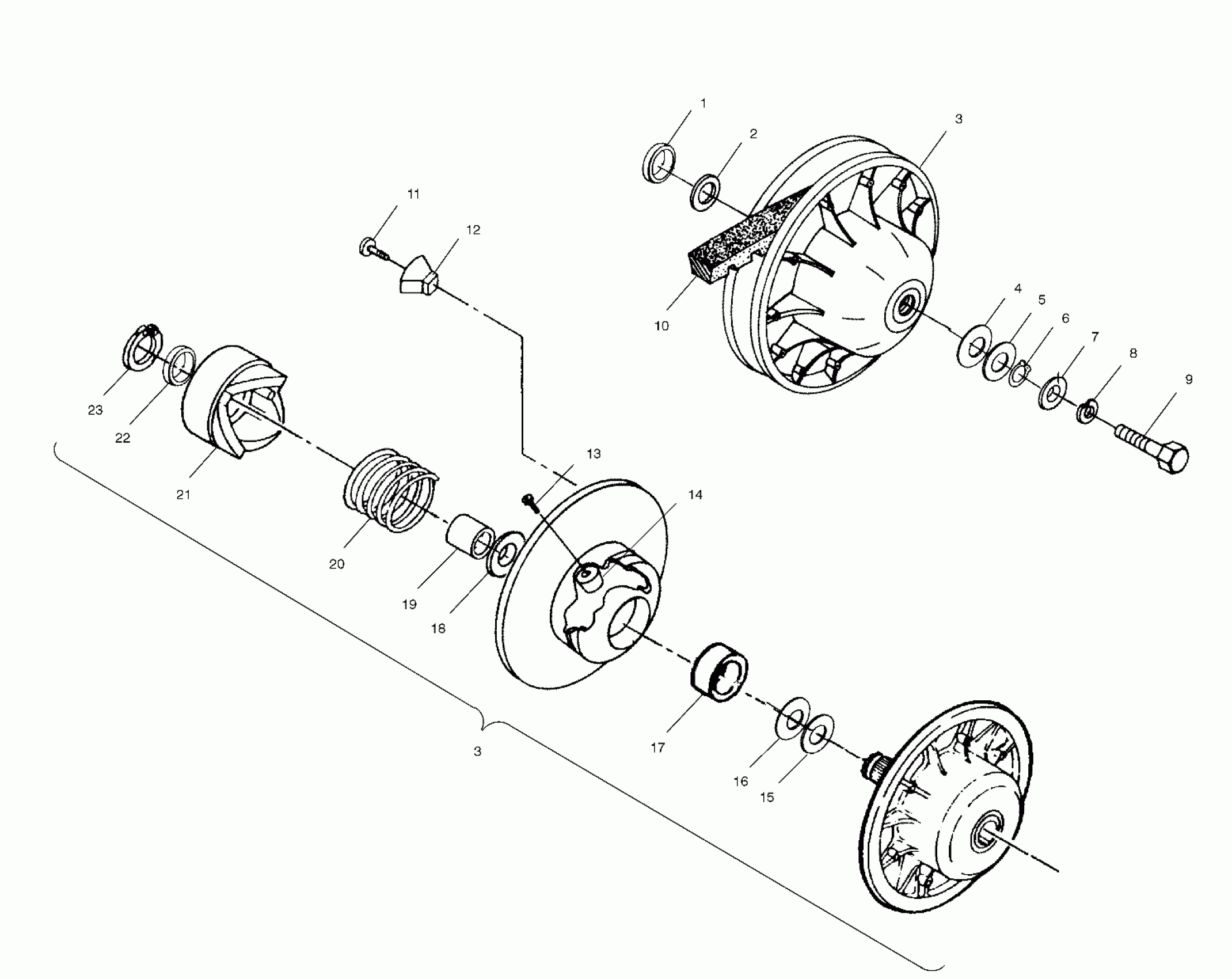

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF DRIVEN CLUTCH - A01CH50AA (4964466446C003) Diagram

#

Description
Price

1

SPACER,DRIVEN,ATV

5010409

Unavailable

2

BUSHING-7/8 X 3/8 X 16 GA-Y

7556120

Unavailable

3

CLUTCH,DRVN,BRKG,2-STRK. (Incl. 11-19,22,23)

1322190

Unavailable

3

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 11-19,22-23)(EB)

1322182

$614.99

3

CLUTCH,DRVN,BRKG,2-STRK. (Incl. 11-19,22,23)

1322190

Unavailable

3

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 11-19,22-23)(EB)

1322182

$614.99

4

Washer

7556013

Unavailable

5

Bushing

7556010

Unavailable

6

RING,RETAIN.HD.

7710461

Unavailable

7

WASHER, DOMED(10)

5220646

$2.39

8

LOCK WASHER(10)

7552901

$1.49

9

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

10

BELT,DRIVE,ATV,CLOSE TOL(5) (EB)

3211077

$63.99

10

BELT,DRIVE,ENG.BRK.(5)

3211069

$67.99

11

BOLT(10) (EB)

7511854

$1.49

12

BUTTON,RAMP (EB)

5430766

Unavailable

13

SCREW, SPECIAL

7517323

$13.59

14

ROLLER-TAPER,SP-21,MACH

1321977

$31.99

15

WASHER(10) (.020)(EB)

7555898

Unavailable

15

WASHER(10) (.025)(EB)

7556076

Unavailable

16

WASHER(10) (.030)(EB)

7556804

Unavailable

17

BUSHING, DRIVEN (EB)

3576504

$23.99

17

Bearing

3585710

$19.99

18

WASHER-2.06X2.62X.105-Y (Not EB)

5211115

$3.99

19

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

20

SPRING,CLUTCH,(RED) (EB)

7041198

$52.60

20

SPRING,DRVN,2-STK,WHT/YELLOW

7041635

$47.99

21

RAMP,STA,COMP (MACH) (EB)

5132344

$79.99

21

RAMP,STA.BRAKE,4STRK,MACH

5131674

$83.99

22

SPACER(10)

5210752

$1.59

23

RING,RET.

7710448

$3.19
