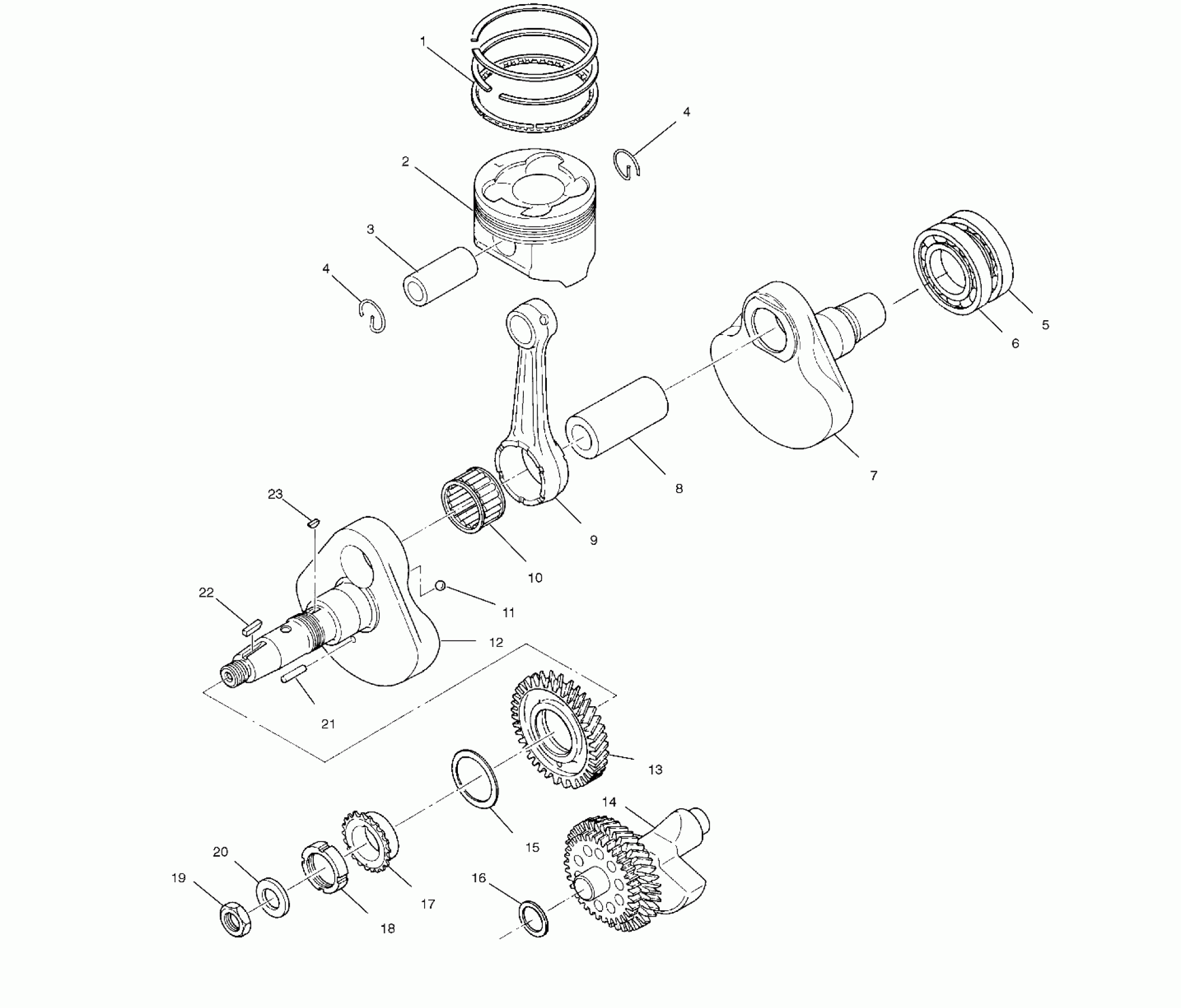

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF CRANKSHAFT and PISTON - A01CH50EB (4964466446D005) Diagram

#

Description
Price

1

RING SET,(STD) * (Std)

3085379

$71.24

1

RING SET,(.25MM/.010 OS) (0.25 O/S)

3085380

$76.17

1

RING SET,(.50MM/.020 OS) (0.50 O/S)

3085381

$75.99

2

PISTON SET(STD) (Std) (Incl. 2-4)

3085866

Unavailable

2

PISTON,SET(.25 O/S) (0.25 O/S) (Incl. 2-4)

3085867

Unavailable

2

PISTON,SET(.50 0/S) (0.50 O/S) (Incl. 2-4)

3085868

Unavailable

3

PIN, PISTON

----

Unavailable

4

CLIP(10)

3085534

Unavailable

4

CLIP(10)

3085534

Unavailable

5

BEARING, BALL

3080676

Unavailable

6

BEARING,BALL

3085815

$43.65

7

CRANKSHAFT,#2

3085812

Unavailable

8

Pin, Crank

3085341

$109.27

9

ROD,CONNECTING

3085813

Unavailable

10

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

11

BALL, STEEL

3085024

$6.46

12

CRANKSHAFT (Incl. 7-13,21)

3085861

$1,099.99

12

Crankshaft 1

3085945

Unavailable

13

BALANCER,GEAR,1 *

3085852

Unavailable

14

SHAFT,BALANCER *

3086837

Unavailable

15

SPACER (1.2)

3084894

$19.84

15

SPACER (0.6)

3240088

$12.99

15

SPACER (1.0)

3084893

Unavailable

15

SPACER (0.8)

3084892

$12.70

16

SPACER (1.2)

3084897

$6.35

16

SPACER (0.8)

3084895

$6.35

16

SPACER (1.0)

3084896

$6.35

17

SPROCKET 1

3084882

Unavailable

18

NUT,SLIT

3085528

$35.71

19

LOCKNUT

3083905

Unavailable

20

WASHER Substituted by 3086767

3083904

Unavailable

21

Pin, Dowel

3085346

Unavailable

22

KEY

3081447

Unavailable

23

KEY WOODRUFF

3081543

$13.75
