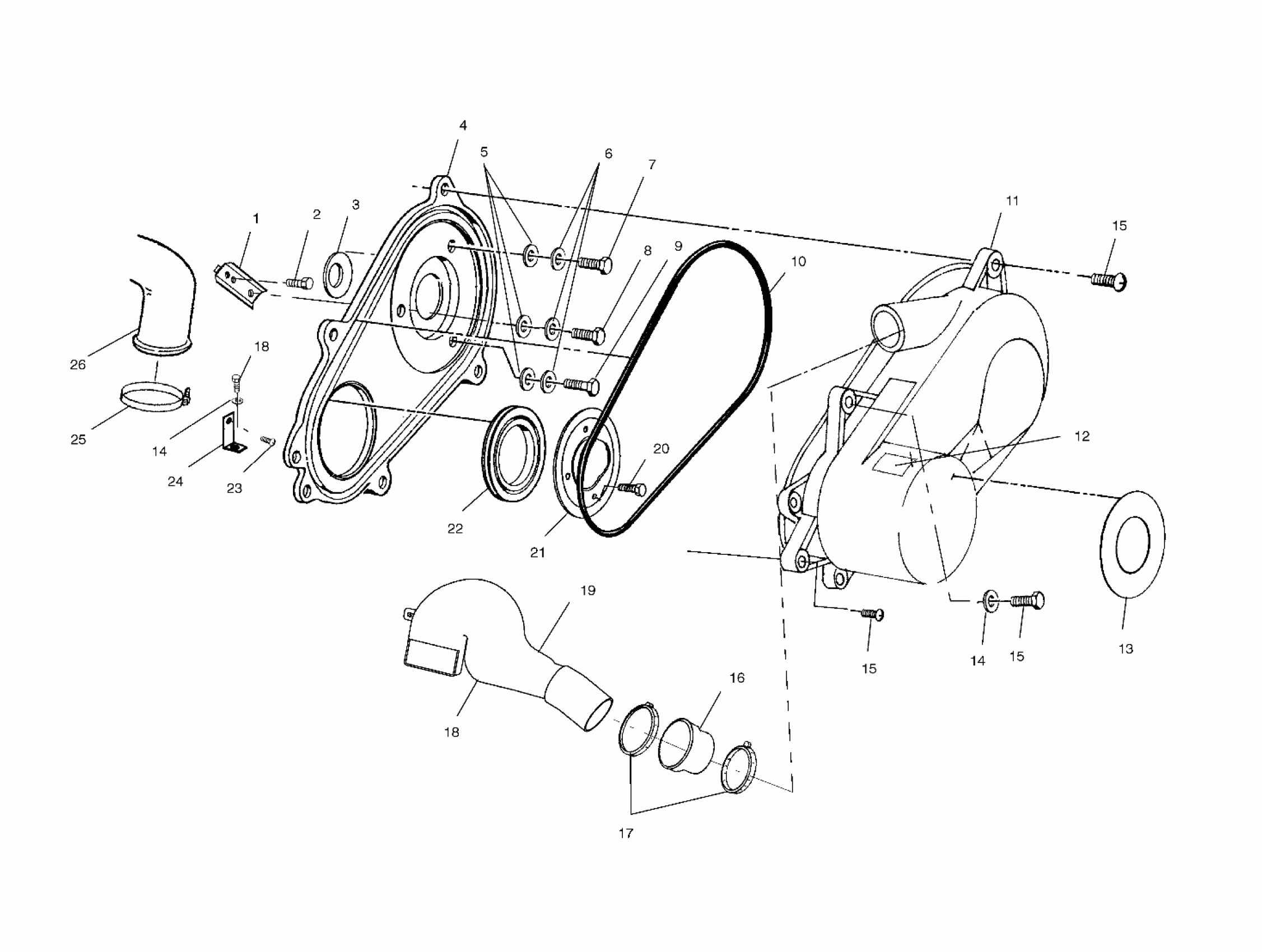

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF CLUTCH COVER - A01CH50AA (4964466446C004) Diagram

#

Description
Price

1

BRKT,R.CLUTCH CVR,BLK.

1040519-067

Unavailable

2

BOLT(10)

7512240

$3.99

3

SEAL,COVER CASE

5410489

$13.59

4

COVER,INNER CLUTCH,KIT SVC,863 (Incl. 15,23)

2201851

$125.46

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

6

WASHER(10)

7552605

$5.27

7

BOLT(10)

7512247

$2.39

8

BOLT(10)

7512277

$4.79

9

BOLT(10)

7512278

Unavailable

10

SEAL,CLUTCHCOVER

5521301

$30.88

11

COVER,CLUTCH-OUTER,HV,BLK

5433451-070

$178.08

12

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

13

DECAL"AUTO./EBS",CLUTCH

7077666

Unavailable

14

WASHER(10)

7555935

$2.39

14

WASHER(10)

7555935

$2.39

15

SCREW(10)

7512094

$1.59

15

SCREW(10)

7512094

$1.59

15

SCREW(10)

7512094

$1.59

16

BOOT,DUCT,HI-FLOW

5411489

Unavailable

17

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

18

BOLT(10)

7512232

$1.49

18

BOLT(10)

7512232

$1.49

19

DUCT,CLUTCH OUTLET,16.6 Substituted by 5433980 (If built before 3/01/00)

5432947

Unavailable

19

DUCT-CLUTCH OUTLET,16.6 (If built after 3/01/00)

5433980

Unavailable

20

Screw and Washer (See Crankcase Pg. D2, Ref. 6)

-------

Unavailable

21

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

22

Seal, Cover Case

5410575

Unavailable

23

SCREW(10)

7512095

$4.79

24

BRKT-CLUTCH COVER,BLK

5241156-067

Unavailable

25

CLAMP,BAND,NARROW

7080413

$3.19

26

Duct, Air Inlet (See Air Box Pg. B1, Ref. 9)

-------

Unavailable
