Description

Price

1

COVER,DIAPHRAGM

3130914

$48.56

2

Screw

3130821

$7.14

3

SPRING

3130911

$11.32

4

RING

3130913

$5.65

5

RING,"E"

3130908

$6.46

6

RING

3130915

$5.65

7

NEEDLE-JET

3131292

$44.51

8

DIAPHRAGM

3130910

$68.79

9

VALVE,PISTON

3130912

$71.10

10

RING

3130932

$1.99

11

SPRING

3130927

$6.99

12

SCREW

3130933

$2.38

12

SCREW

3130933

$2.38

13

WASHER

3130926

$3.97

14

CASE

3130925

$69.99

15

SEAL

3130515

$12.13

15

SEAL

3130515

$12.13

16

O-RING

3130928

$6.46

17

JET, (PAJ1)

3130619

$8.08

18

ASM-CARBURETOR (Incl. 1-53)

3131289

$674.49

19

JET-NEEDLE

3131305

$48.56

20

BLOCK-JET Substituted by 3130909

3131290

$47.49

21

RING,"O"

3130916

$4.84

22

DESC NOT_AVAILABLE

3131208

Unavailable

23

PLUNGER ASM. Substituted by 3130539

3130593

$40.46

24

SPRING

3130538

$5.65

25

HOLDER,GUIDE

3130199

$28.32

26

PACKING

----

Unavailable

27

CAP

3130519

$10.51

28

E-RING

3130518

$1.60

29

Screw

3130906

$3.97

30

VALVE,THROTTLE

3130907

$54.99

31

O-Ring

3130522

$5.65

32

Washer

3130523

$2.38

33

Spring

3130525

$5.65

34

ADJUSTER

3130934

$12.99

35

JET-PILOT Substituted by 3130624 (#40)

3131306

$28.32

36

VALVE,NEEDLE

3130922

$72.84

37

ASM-FLOAT Substituted by 3130921

3131293

$75.54

38

SEAL

3130917

$7.27

39

FLOAT BODY ASSM.

3130923

$75.54

40

SCREW

3130935

$6.64

41

RING

3130919

Unavailable

42

JET-MAIN(#152.5) Substituted by 3130570 (#152.5)

3131304

$8.89

43

O RING

3130239

Unavailable

44

SCREW-GUIDE Substituted by 3130321

3131291

$23.81

45

ASM-CABLE ADJUSTER

3131295

Unavailable

46

WASHER

3131296

$9.52

47

SPRING,THROTTLE ADJ.

3130010

$9.70

48

GUIDE,CABLE

3130543

$32.37

49

THROTTLE SHAFT ASSM.

3130931

$64.75

50

SCREW

3130924

$1.59

51

COVER

3130930

$36.41

52

O-RING Substituted by 3130929

3131294

$14.24

53

CLIP Substituted by 3131242

3130937

$33.24

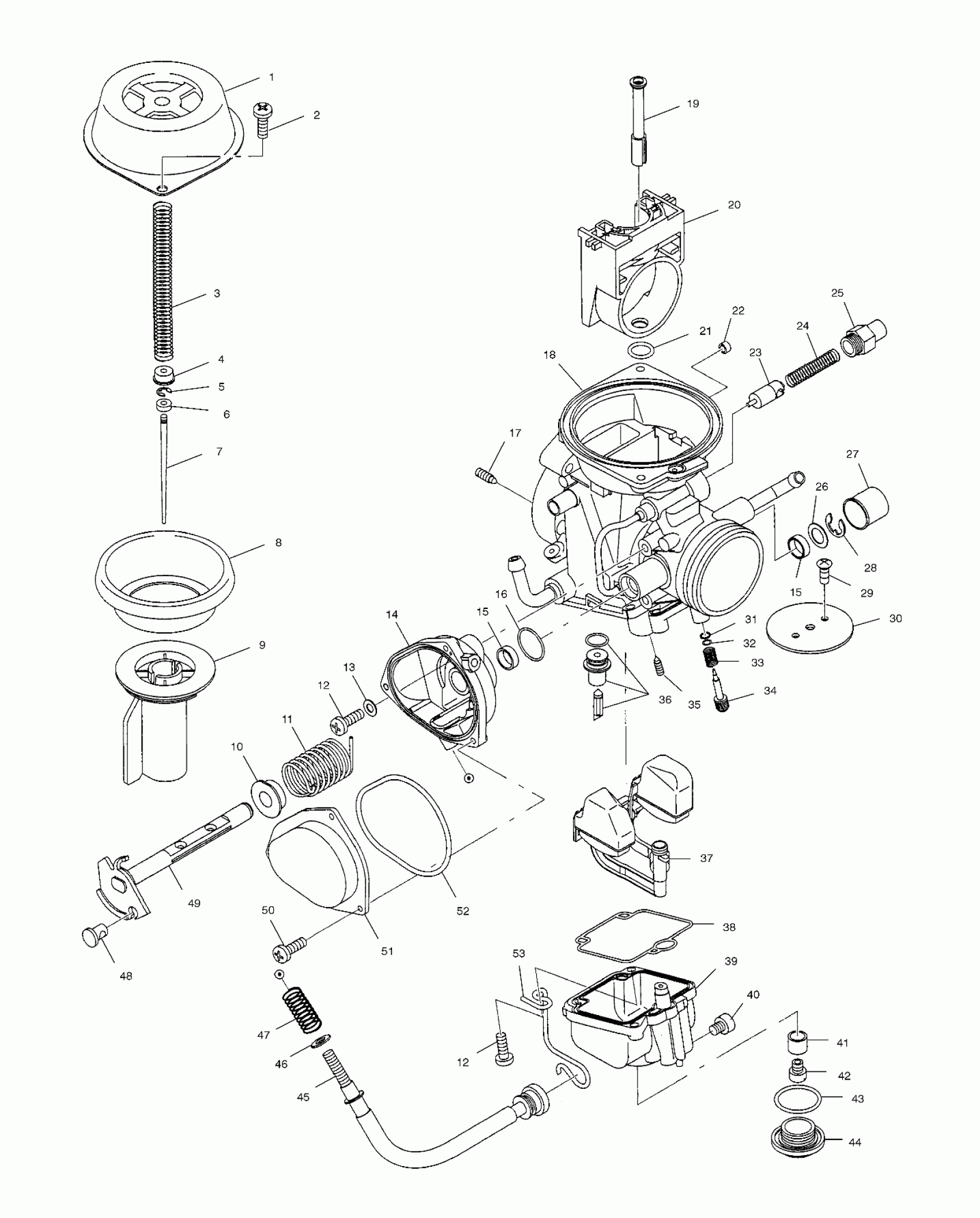

Polaris SPORTSMAN 500 DUSE HO - A01CH50AF CARBURETOR - A01CH50EB (4964466446D007) Diagram

COVER,DIAPHRAGM

Screw

SPRING

RING

RING,"E"

RING

NEEDLE-JET

DIAPHRAGM

VALVE,PISTON

RING

SPRING

SCREW

SCREW

WASHER

CASE

SEAL

SEAL

O-RING

JET, (PAJ1)

ASM-CARBURETOR (Incl. 1-53)

JET-NEEDLE

BLOCK-JET Substituted by 3130909

RING,"O"

DESC NOT_AVAILABLE

PLUNGER ASM. Substituted by 3130539

SPRING

HOLDER,GUIDE

PACKING

CAP

E-RING

Screw

VALVE,THROTTLE

O-Ring

Washer

Spring

ADJUSTER

JET-PILOT Substituted by 3130624 (#40)

VALVE,NEEDLE

ASM-FLOAT Substituted by 3130921

SEAL

FLOAT BODY ASSM.

SCREW

RING

JET-MAIN(#152.5) Substituted by 3130570 (#152.5)

O RING

SCREW-GUIDE Substituted by 3130321

ASM-CABLE ADJUSTER

WASHER

SPRING,THROTTLE ADJ.

GUIDE,CABLE

THROTTLE SHAFT ASSM.

SCREW

COVER

O-RING Substituted by 3130929

CLIP Substituted by 3131242
