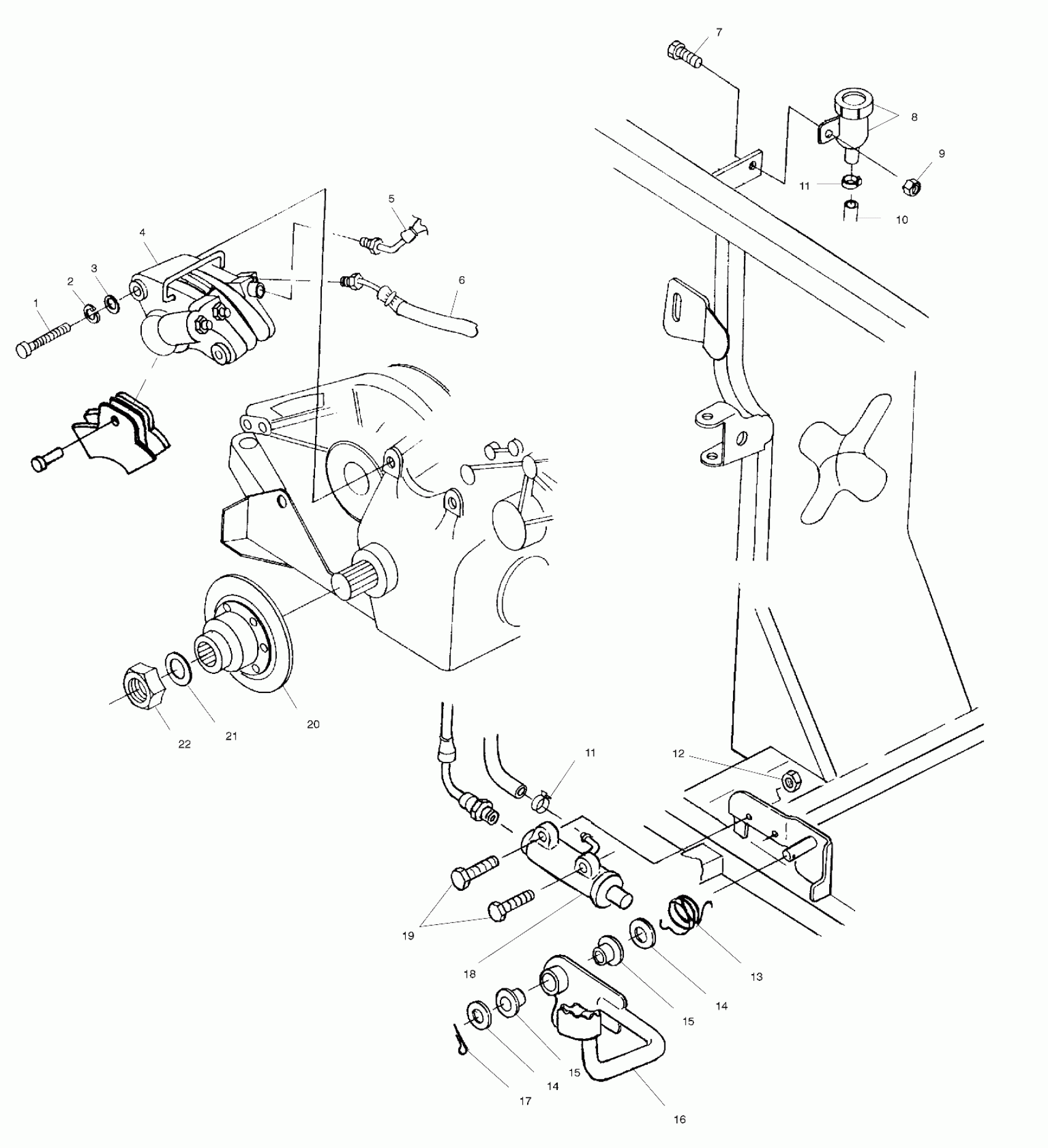

Polaris SPORTSMAN 500 DUSE - A01CH50AD REAR BRAKE/FOOT PEDAL - A01CH50AD (4960026002C009) Diagram

#

Description
Price

1

BOLT(10)

7515497

$3.97

2

WASHER(10)

7552603

$0.79

3

WASHER(10)

7555806

$0.79

4

KIT,SEAL,CALIPER,WW

2201180

$64.75

4

BLEEDER REPLACEMENT,KIT

2201428

$27.78

4

PISTON-STEPPED BORE

2201181

$83.33

4

CALIPER,BRAKE,DHIP,AFT

1910441

$288.87

4

BRAKE PADS,AFT,WW REAR (Incl. Spacer and Pin)

2201399

$38.08

5

LINE,R.BRAKE,WWOOD

1930853

Unavailable

6

LINE,BRAKE CALIPER,W/FTNGS.

1910305

Unavailable

7

BOLT(10)

7512240

$3.97

8

RESERVOIR ASM,R.BRAKE

1930854

$36.41

9

NUT(10)

7542153

$1.59

10

HOSE,RESERVOIR,1/4ID,22IN.

1910315

$14.51

11

HOSE CLAMP, RED

7080003

$1.19

11

HOSE CLAMP, RED

7080003

$1.19

12

NUT-LOCK(10)

7542122

$1.19

13

SPRING-TORSION,BRAKE

7041750

$8.89

14

WASHER(10)

7555919

$4.99

14

WASHER(10)

7555919

$4.99

15

BUSHING-PEDAL PIVOT

5431107

$8.73

15

BUSHING-PEDAL PIVOT

5431107

$8.73

16

ROD,BRAKE,BLK.

1910280-067

Unavailable

17

COTTER PIN(10)

7661401

$0.79

18

CYLINDER,MASTER,BRAKE,REAR

1910301

$174.03

19

BOLT(10)

7512247

Unavailable

20

DISC,ASM,BRAKE,DOM,1050

1910440

Unavailable

21

WASHER, SLOTTED(10)

7571620

$7.14

22

NUT,NYLOC

7547046

$5.56
