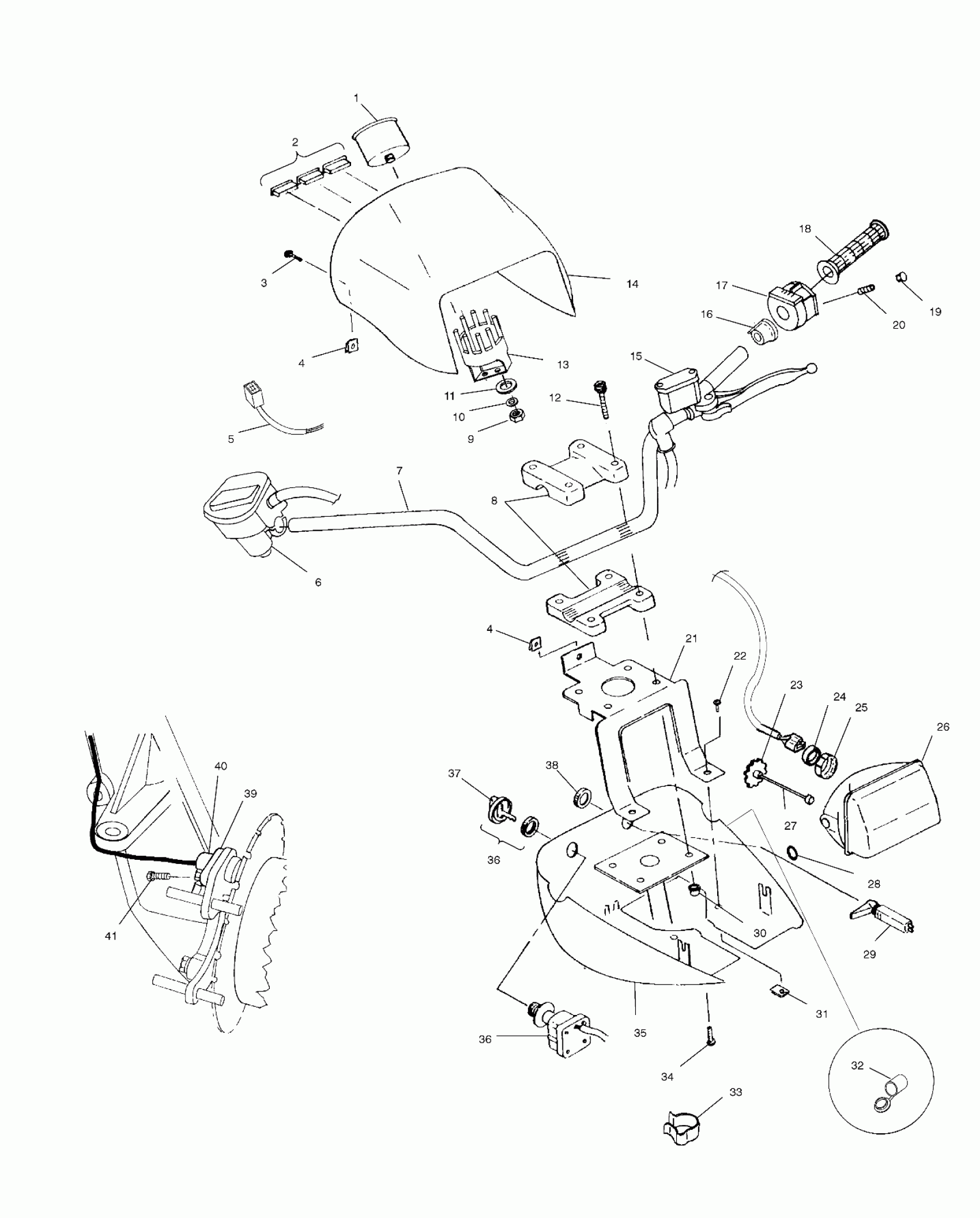

Polaris SPORTSMAN 500 DUSE - A01CH50AD HANDLEBAR and HEADLIGHT POD - A01CH50AD (4960026002B013) Diagram

#

Description
Price

1

SPEEDO ASM,3.38",6-PULSE Substituted by 3280363

3280290

Unavailable

2

PLUG,INDIC.HOLE

5430967

$5.65

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

HARNESS,CTR.PNL.

2460668

$11.51

6

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B8, Ref. 5)

-------

Unavailable

7

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$114.99

8

KIT,H'BAR BLOCK (Incl. Blocks and 8,12,30)

2200774

Unavailable

8

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

9

NUT, BRASS(10)

7541933

$4.99

10

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

11

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

12

SCREW(10)

7515189

Unavailable

13

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

14

POD-HEADLGHT,UPPER,BSC,WETCAMO

5433947-315A

Unavailable

15

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B9 for details)

-------

Unavailable

16

SPACER,SWITCH,LH

5432926

$2.63

17

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

18

GRIP, HANDLEBAR

5431030

$24.27

19

PLUG,HOLE(10)

5432952

$5.59

20

SCREW,SET

7517625

$4.79

21

BRKT,POD MTG,BLK.

5240586-067

Unavailable

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

23

KNOB,ADJUSTING

4032079

$23.99

24

BOOT, HEADLIGHT

5411120

$27.99

25

COLLAR,LOCK

4032077

$27.99

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

ROD,ADJUSTING

4032078

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$24.27

29

CABLE-CHOKE,FRICTION,W/ADJ,40" Substituted by 7081008

7080902

$77.21

30

NUT-LOCK(10)

7542122

$1.49

31

NUT,U-TYPE(10)

7670089

$5.59

32

RECEPTACLE-POD MNT,12 VOLT

4010283

Unavailable

33

CLIP,CABLE RETAIN,(10)

7080631

$6.29

34

SCREW(10)

7522021

$3.99

35

POD,HEADLIGHT,LOWER,BLK

5433366-070

$93.08

36

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Ignition Key may be ordered by using the four digit number on the key.

4010278

Unavailable

36

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

36

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Ignition Key may be ordered by using the four digit number on the key.

4010278

Unavailable

36

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

37

KEY SWITCH KEY COVER

5433534

$12.35

38

Nut

7080229

$19.99

39

SENSOR,HALLEFFECT

4010298

$111.99

40

CAP-HALL SENSOR

5132382

$23.99

41

Screw

7517658

$5.59
