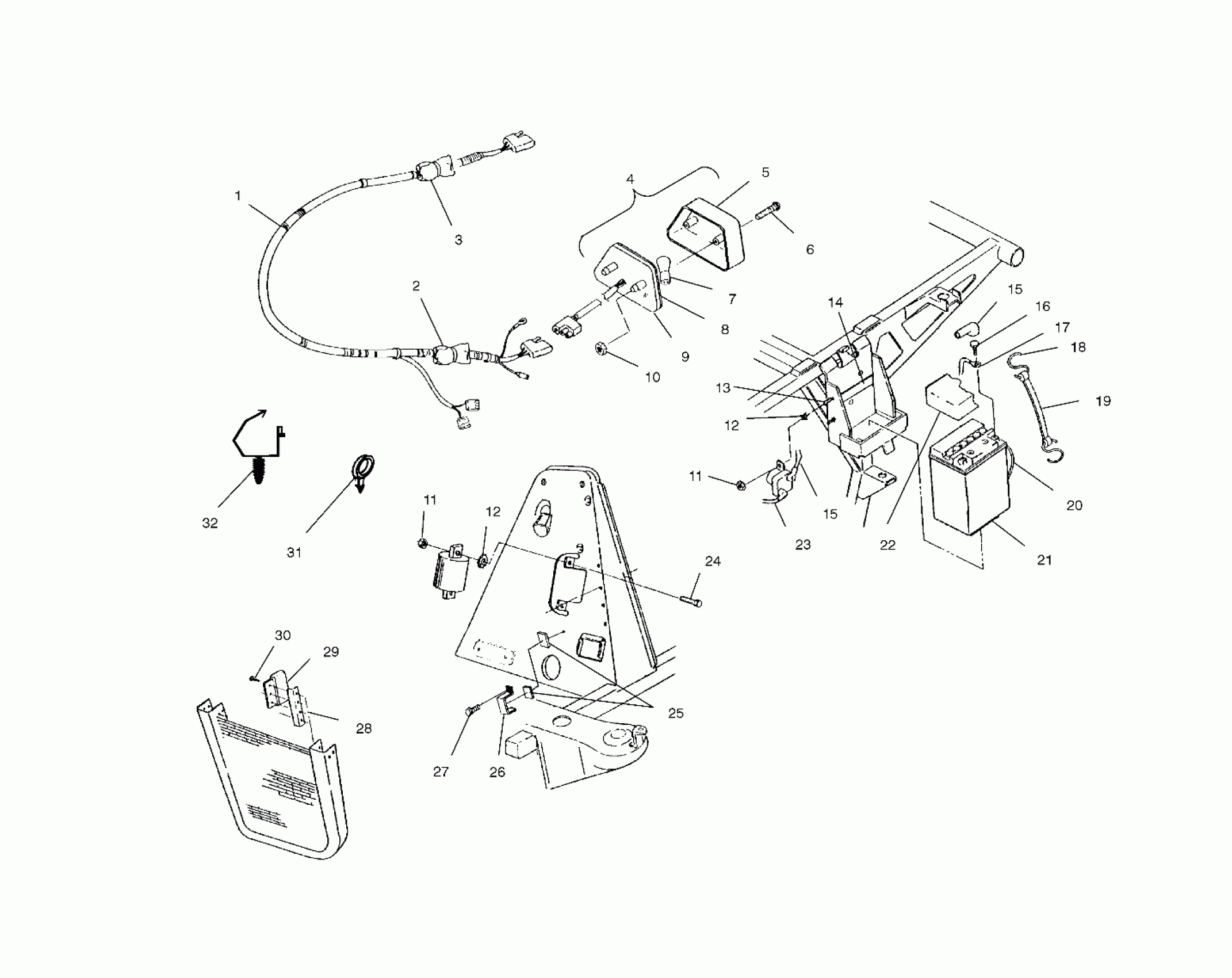

Polaris SPORTSMAN 500 DUSE - A01CH50AD ELECTRICAL/TAILLIGHT - A01CH50AD (4960026002C005) Diagram

#

Description
Price

1

HARNESS-MAIN,SPORTSMAN 500

2460784

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

4

TAIL LIGHT ASM. (Incl. 5-10)

2432034

$55.99

5

LENS,TAILLIGHT

4032046

$32.37

6

Screw, Taillight

4032029

$4.79

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,TAILLIGHT

4032045

$4.03

9

BACKING,TAILLIGHT

4032064

$83.99

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

11

NUT(10)

7541925

$1.49

11

NUT(10)

7541925

$1.49

12

WASHER(10)

7571602

$4.79

12

WASHER(10)

7571602

$4.79

13

SCREW(10)

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

15

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

16

BOLT,BATT,KIT(SHORT)

2200361

$3.99

17

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

18

HOOK-BATT.H/D(10)

7010032

$1.59

19

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

20

TUBE,BATTERY VENT

5432077

Unavailable

21

Battery

4140006

$99.99

22

COVER,BATTERY

5431769

$14.39

23

CABLE,SOL/STARTER

4010093

$47.99

24

SCREW(10)

7512007

$3.99

25

PAD,RACK MOUNT

5810455

$3.19

26

BRACKET-CDI

5241416

$5.75

27

SCREW,(10)

7512024

$4.79

28

HEATSINK RECT.

5131036

Unavailable

29

RECTIFIER,FULL WAVE

4060173

Unavailable

30

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

31

CLIP,ROSEBUD

4020149

$6.39

32

CLIP-ROUTING

7670109

$2.39
