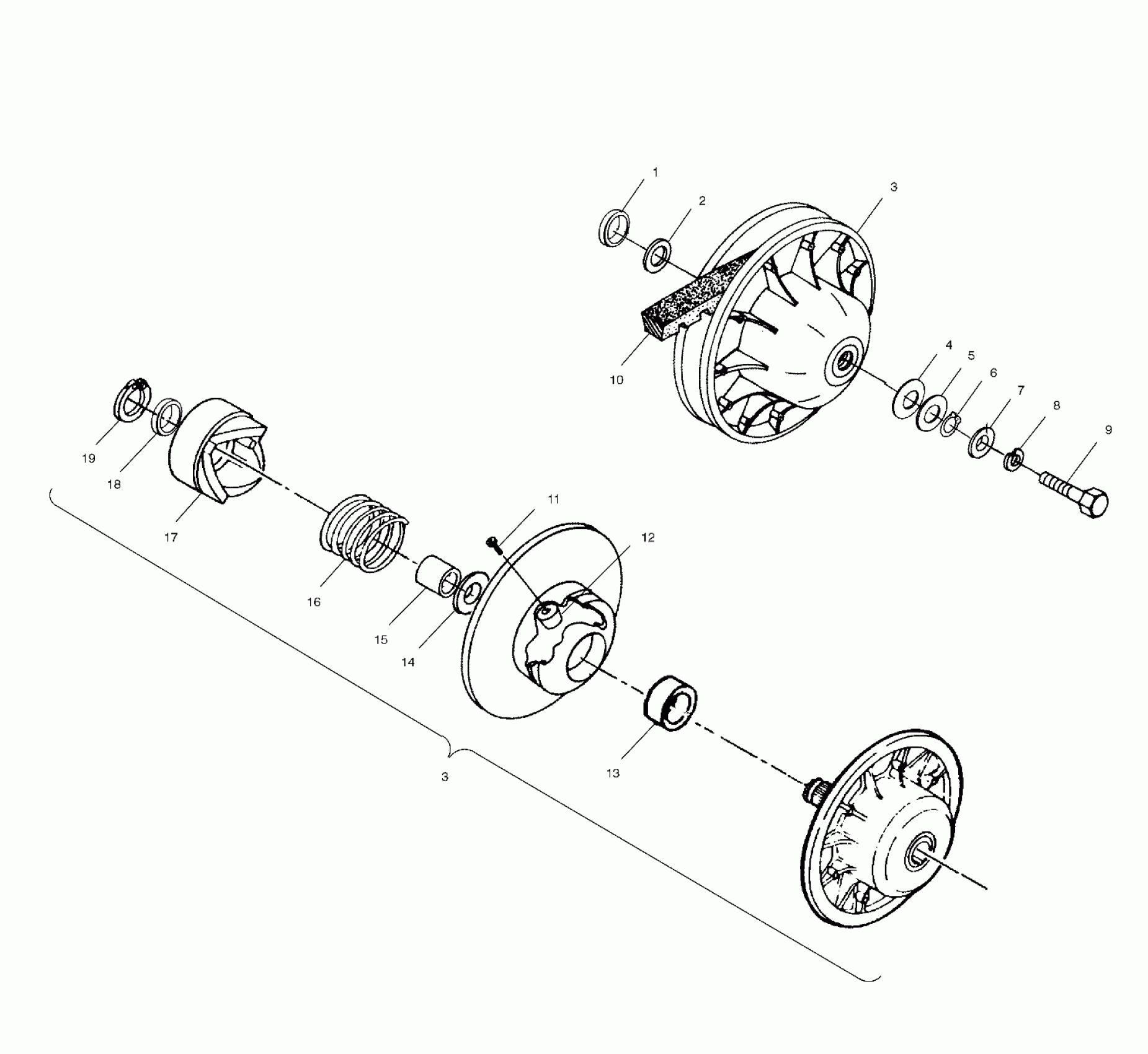

Polaris SPORTSMAN 500 DUSE - A01CH50AD DRIVEN CLUTCH - A01CH50AD (4960026002C003) Diagram

#

Description
Price

1

SPACER,DRIVEN,ATV

5010409

Unavailable

2

BUSHING-7/8 X 3/8 X 16 GA-Y

7556120

Unavailable

3

CLUTCH,DRVN,BRKG,4-STRK. (Incl. 11-15,18,19)

1322190

Unavailable

3

CLUTCH,DRVN,BRKG,4-STRK. (Incl. 11-15,18,19)

1322190

Unavailable

4

Washer

7556013

Unavailable

5

Bushing

7556010

Unavailable

6

RING,RETAIN.HD.

7710461

Unavailable

7

WASHER, DOMED(10)

5220646

$2.39

8

LOCK WASHER(10)

7552901

$1.49

9

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

10

BELT,DRIVE,ENG.BRK.(5)

3211069

$67.99

11

SCREW, SPECIAL

7517323

$13.59

12

ROLLER-TAPER,SP-21,MACH

1321977

$31.99

13

Bearing

3585710

$19.99

14

WASHER-2.06X2.62X.105-Y

5211115

$3.99

15

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

16

SPRING,DRVN,4-STK,WHT/GRN

7041636

Unavailable

17

RAMP,STA.BRAKE,4STRK,MACH

5131674

$83.99

18

SPACER(10)

5210752

$1.59

19

RING,RET.

7710448

$3.19
