Description

Price

1

RIVET(50)

7661645

$3.99

2

SCREW(10)

7511930

$2.39

3

WASHER(10)

7555792

$4.79

3

WASHER(10)

7555792

$4.79

4

FOIL,REAR CAB,REAR

5811107

$6.46

5

Grommet

5411042

Unavailable

6

CAB,REAR,GEN 4,P.RED (A99CH50(AB)(EB))

5432117-136

Unavailable

6

CAB,REAR,GEN 4,OLV.GRN. (A99CH50(AA)(EA))

5432117-191

Unavailable

7

NUT(10)

7541925

$1.49

7

NUT(10)

7541925

$1.49

8

RETAINER,SEAT LATCH

5224592

Unavailable

9

FOIL,TAPE,3 X 12

5811308

$12.79

10

SCREW(10)

7512242

$2.39

11

WASHER, FLAT(10)

7555859

$1.49

12

SCREW(10) Substituted by 7511989

7512085

Unavailable

13

TOOLBOX

5431786

$53.59

14

BLIND RIVET(50)

7621403

$1.49

15

BRACKET,LEVER RETAINER

5211033

$29.25

16

LATCH,SEAT

1040387

$47.99

17

SPRING, LATCH

7041370

$9.59

18

COVER,SEAT,BLK.

2681747-070

$141.65

18

SEAT,BLK

2682441-070

$424.98

18

FOIL,SEATBASE,LG.

5811104

Unavailable

18

FOIL,SEATBASE,SM.

5811105

$9.91

19

Bumper, Rubber

5410414

$3.19

20

BOLT(10)

7512130

$3.99

21

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

22

COVER, TOOLBOX

5431787

Unavailable

23

CAP,DRAIN

5410896

$5.59

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

25

GUARD,CLUTCH,BLK

5242953-067

Unavailable

26

Front Housing (See Footnote) (See Front Housing Pg. C14 and Pg. D1 for Details)

-------

Unavailable

27

WASHER(10)

7552603

$1.49

28

SCREW(10)

7512492

$1.49

29

CLAMP,HOSE,1",NYLON

7080653

$4.79

30

SCREW,(10)

7512024

$4.79

31

NUT-LOCK(10)

7542122

$1.49

31

NUT-LOCK(10)

7542122

$1.49

31

NUT-LOCK(10)

7542122

$1.49

32

SPACER,FOOTWELL

5432280

$8.79

33

SCREW

7517377

$4.79

34

FRAME-MAIN,BLK

1012796-067

Unavailable

35

GROMMET

5410770

Unavailable

36

DECAL-HITCH (1225)

7078261

Unavailable

37

SCREW Substituted by 7512279

7517376

Unavailable

38

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

38

FOOTWELL-NYLON,RH,BLK

5433219-070

$230.70

39

FOIL FOAM

5811111

$32.37

40

FOIL,FR,REAR CAB

5811106

$8.89

41

DECAL,CARB.INFO.

7073761

Unavailable

42

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

43

FOIL-FOAM,(6X1)

5811087

Unavailable

44

BOLT(10)

7512232

$1.49

45

SCREW(10) Substituted by 7517685

7515194

Unavailable

46

NUT, SPEED(10)

7670057

$1.49

47

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

47

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

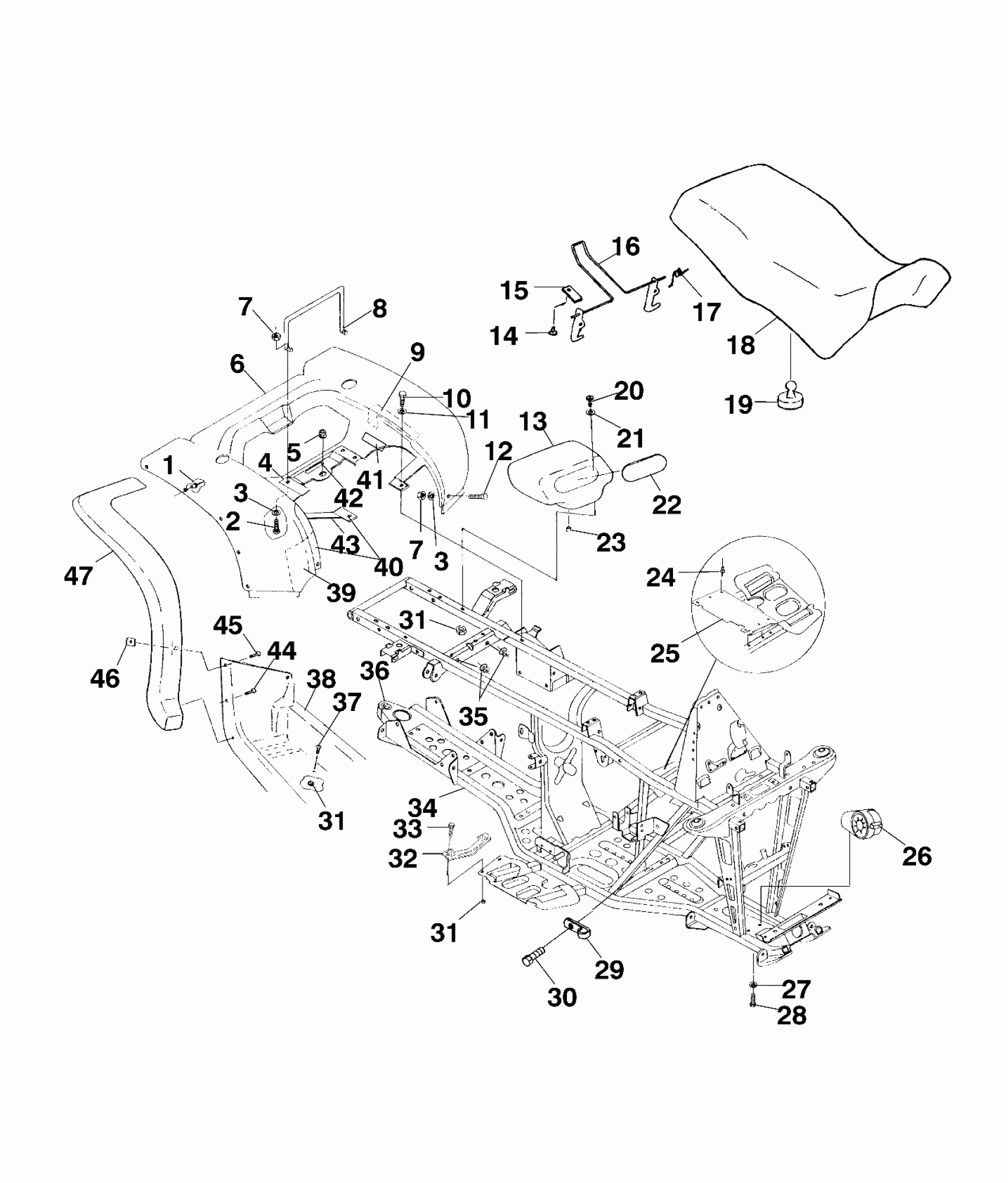

Polaris SPORTSMAN 500 - A99CH50AB REAR CAB and SEAT - A99CH50EB (4949114911a005) Diagram

RIVET(50)

SCREW(10)

WASHER(10)

WASHER(10)

FOIL,REAR CAB,REAR

Grommet

CAB,REAR,GEN 4,P.RED (A99CH50(AB)(EB))

CAB,REAR,GEN 4,OLV.GRN. (A99CH50(AA)(EA))

NUT(10)

NUT(10)

RETAINER,SEAT LATCH

FOIL,TAPE,3 X 12

SCREW(10)

WASHER, FLAT(10)

SCREW(10) Substituted by 7511989

TOOLBOX

BLIND RIVET(50)

BRACKET,LEVER RETAINER

LATCH,SEAT

SPRING, LATCH

COVER,SEAT,BLK.

SEAT,BLK

FOIL,SEATBASE,LG.

FOIL,SEATBASE,SM.

Bumper, Rubber

BOLT(10)

WASHER-.28X.62-.14(RBR-BK)-Z

COVER, TOOLBOX

CAP,DRAIN

RIVET,INTERLOCK,B(50)

GUARD,CLUTCH,BLK

Front Housing (See Footnote) (See Front Housing Pg. C14 and Pg. D1 for Details)

WASHER(10)

SCREW(10)

CLAMP,HOSE,1",NYLON

SCREW,(10)

NUT-LOCK(10)

NUT-LOCK(10)

NUT-LOCK(10)

SPACER,FOOTWELL

SCREW

FRAME-MAIN,BLK

GROMMET

DECAL-HITCH (1225)

SCREW Substituted by 7512279

FOOTWELL,LH,BLK,NYLON

FOOTWELL-NYLON,RH,BLK

FOIL FOAM

FOIL,FR,REAR CAB

DECAL,CARB.INFO.

DECAL,FILT.ELEMENT,4-S

FOIL-FOAM,(6X1)

BOLT(10)

SCREW(10) Substituted by 7517685

NUT, SPEED(10)

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

MUDGUARD,RH,R.BLK. Substituted by 5431797-070
