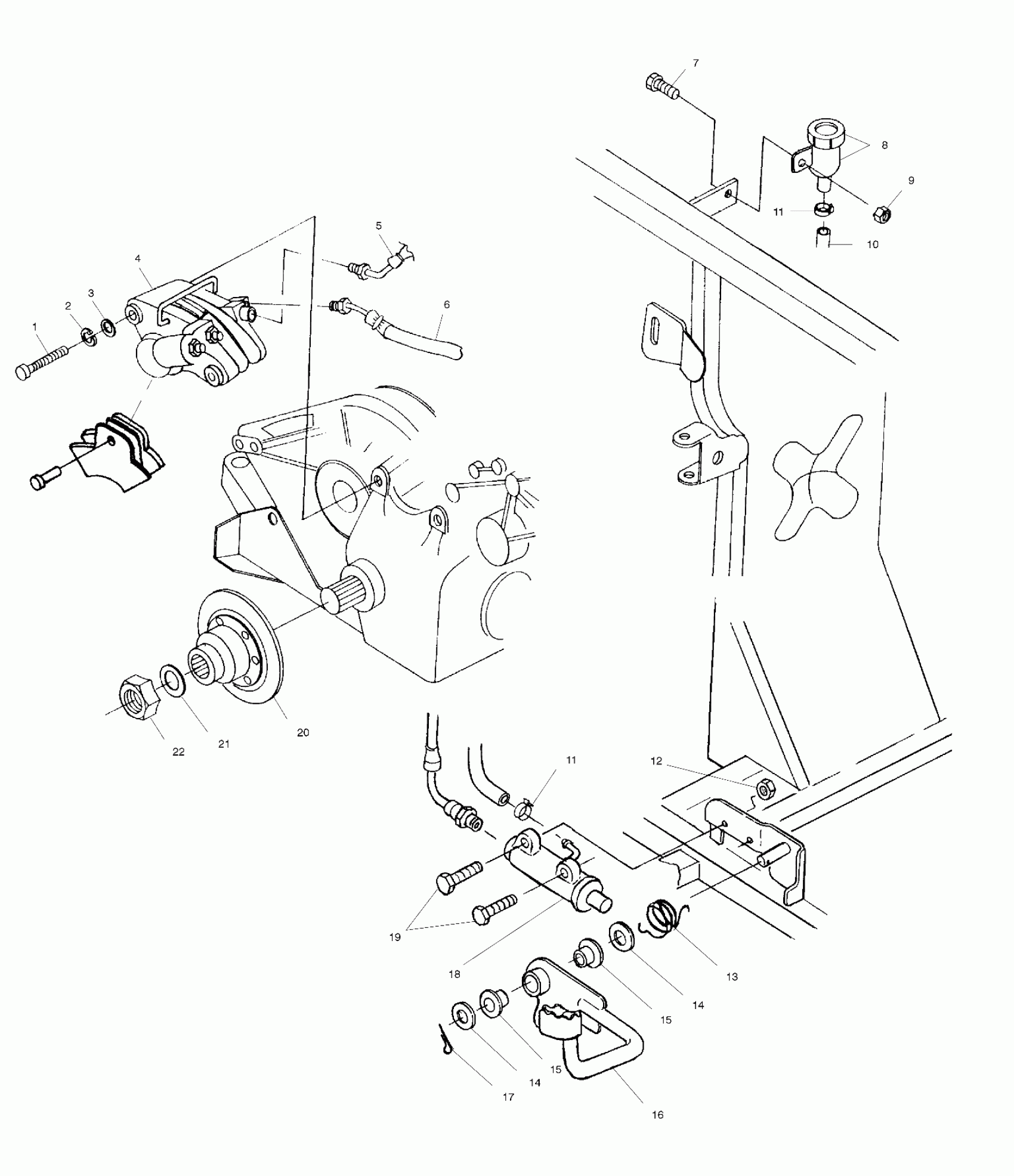

Polaris SPORTSMAN 500 - A99CH50AB REAR BRAKE/FOOT PEDAL - A99CH50EB (4949114911c011) Diagram

#

Description
Price

1

BOLT(10)

7515497

$3.97

2

WASHER(10)

7552603

$0.79

3

WASHER(10)

7555806

$0.79

4

CALIPER ASM,BRAKE,WWOOD,4X4 Substituted by 1910366

1930818

$288.87

4

KIT,BRAKEPAD,WW REAR (Incl. Pin, Spacer)

2201093

Unavailable

4

KIT,SEAL,CALIPER,WW

2201180

$64.75

4

BLEEDER REPLACEMENT,KIT

2201428

$27.78

4

PISTON-RR CALIPER,DH2P

2201467

$89.03

5

LINE,R.BRAKE,WWOOD

1930853

Unavailable

6

LINE,BRAKE CALIPER,W/FTNGS.

1910305

Unavailable

7

BOLT(10) Substituted by 7512240

7512111

$3.97

8

RESERVOIR ASM,R.BRAKE

1930854

$36.41

9

NUT(10)

7542153

$1.59

10

HOSE,RESERVOIR,1/4ID,22IN.

1910315

$14.51

11

HOSE CLAMP, RED

7080003

$1.19

11

HOSE CLAMP, RED

7080003

$1.19

12

NUT-LOCK(10)

7542122

$1.19

13

SPRING-TORSION,BRAKE

7041750

$8.89

14

WASHER(10)

7555919

$4.99

14

WASHER(10)

7555919

$4.99

15

BUSHING-PEDAL PIVOT

5431107

$8.73

15

BUSHING-PEDAL PIVOT

5431107

$8.73

16

ROD,BRAKE,BLK.

1910280-067

Unavailable

17

COTTER PIN(10)

7661401

$0.79

18

CYLINDER,MASTER,BRAKE,REAR

1910301

$174.03

19

BOLT(10)

7512247

Unavailable

20

DISC ASM,BRAKE

1910188

Unavailable

21

WASHER, SLOTTED(10)

7571620

$7.14

22

NUT,NYLOC

7547046

$5.56
