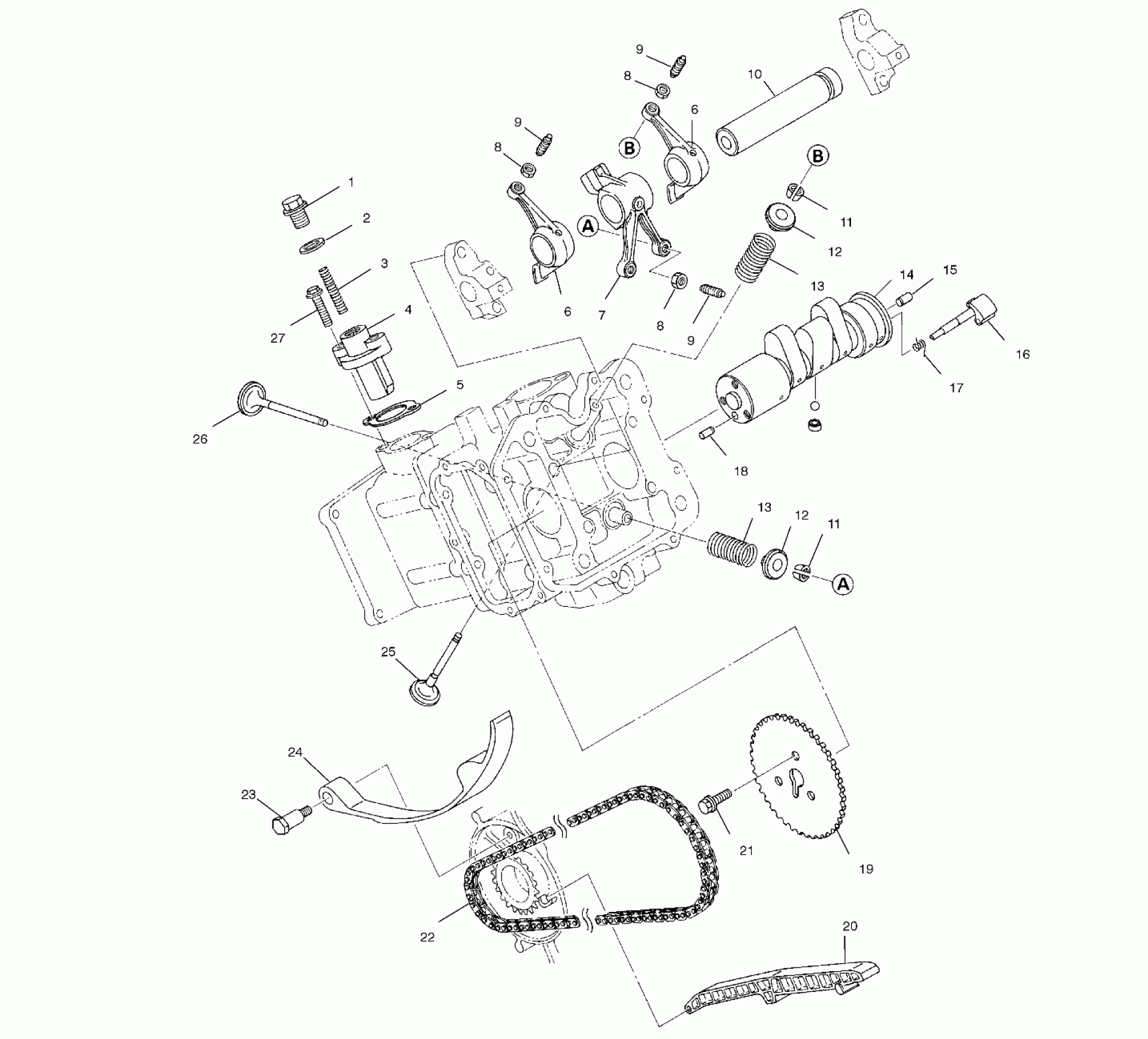

Polaris SPORTSMAN 500 - A99CH50AB INTAKE and EXHAUST - A99CH50EB (4949114911d010) Diagram

#

Description
Price

1

PLUG

3084845

Unavailable

2

Gasket, Plug

3084920

Unavailable

3

SPRING,TENSIONER

3084919

Unavailable

4

TENSIONER ASM. (Incl. 1-3)

3084918

Unavailable

5

GASKET,TENSIONER

3084922

Unavailable

6

ROCKERARM ASM,INTAKE * (Incl. 8,9)

3084910

$115.99

6

ROCKERARM ASM,INTAKE * (Incl. 8,9)

3084910

$115.99

7

ROCKERARM ASM,EXHAUST * (Incl. 8,9)

3084913

$131.99

8

NUT(10)

3084912

$3.99

8

NUT(10)

3084912

$3.99

8

NUT(10)

3084912

$3.99

9

SCREW, ADJ.

3084911

$9.59

9

SCREW, ADJ.

3084911

$9.59

9

SCREW, ADJ.

3084911

$9.59

10

SHAFT,ROCKER

3084909

$51.99

11

COLLET,VALVE

3084908

$3.99

11

COLLET,VALVE

3084908

$3.99

12

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

12

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

13

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

13

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

14

CAMSHAFT Substituted by 3086212 (Incl. 15-18)

3084898

Unavailable

15

PIN, DOWEL Substituted by 3086838

3080103

$7.14

16

LEVER, RELEASE

3085348

Unavailable

17

SPRING,RETURN

3085076

Unavailable

18

PIN,DOWEL

3084899

$7.19

19

SPROCKET 2

3084914

$75.99

20

GUIDE,CHAIN

3084916

Unavailable

21

BOLT&WASHER ASM.

3081657

$4.79

22

CHAIN, TIMING *

3084915

$95.99

23

BOLT,PIVOT,LEVER

3084924

Unavailable

24

LEVER

3084917

$91.99

25

VALVE,INTAKE

3085349

$63.99

26

VALVE,EXHAUST Substituted by 3085412

3084905

Unavailable

27

BOLT, FLANGE

3084874

Unavailable
