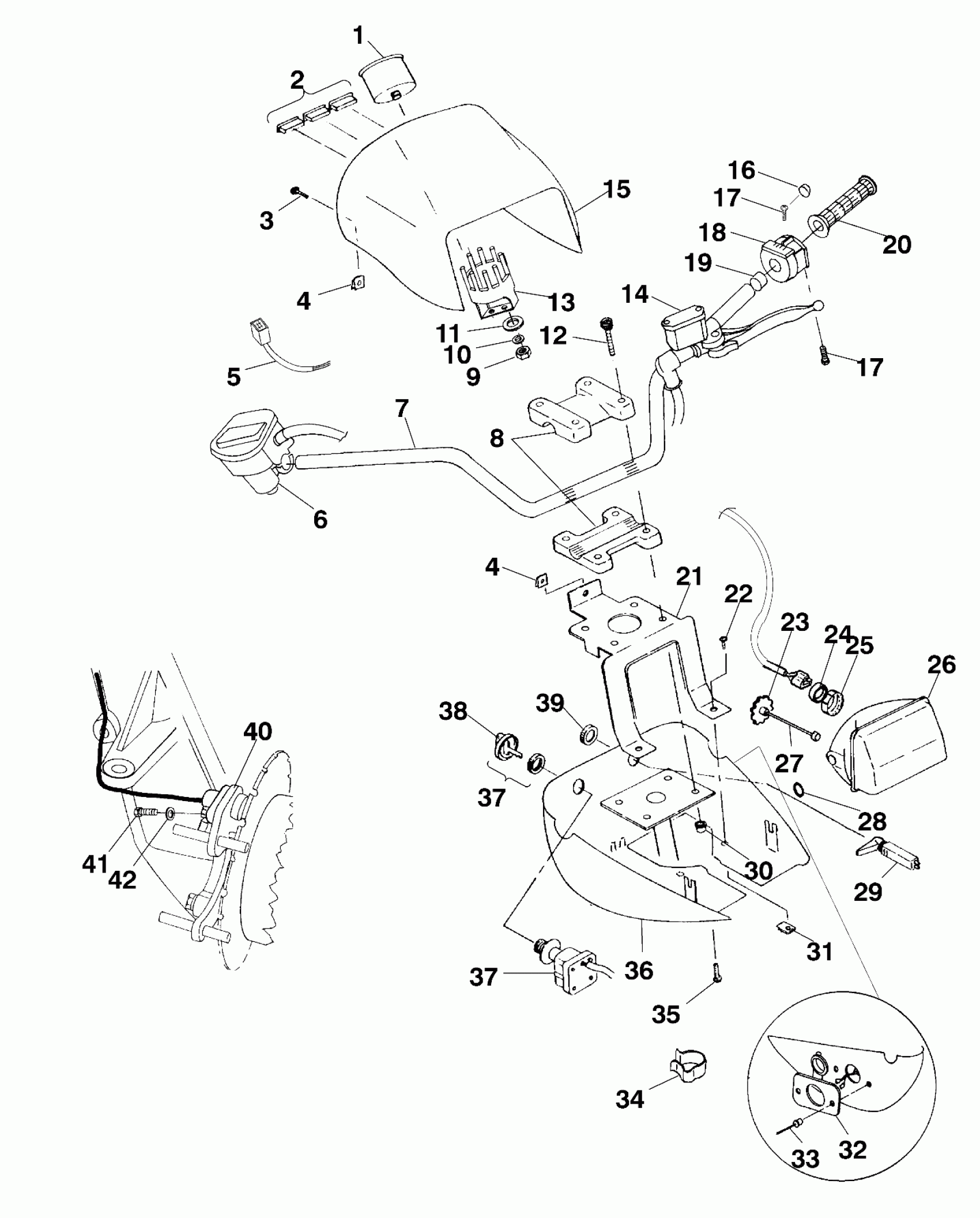

Polaris SPORTSMAN 500 - A99CH50AB HANDLEBAR and HEADLIGHT POD - A99CH50EB (4949114911b013) Diagram

#

Description
Price

1

SPEEDO ASM,3.38",6-PULSE Substituted by 3280363 (Sportsman)

3280290

Unavailable

1

SPEEDO,ASM,KILO,3.38" 6-PULSE Substituted by 3280358 (Worker)

3280312

Unavailable

2

PLUG,INDIC.HOLE

5430967

$5.65

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

HARNESS,CTR.PNL.

2460668

$11.51

6

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B10, Ref. 5)

-------

Unavailable

7

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$114.99

8

KIT,H'BAR BLOCK (Incl. Blocks and 8,12,30)

2200774

Unavailable

8

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

9

NUT, BRASS(10)

7541933

$4.99

10

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

11

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

12

SCREW(10)

7515189

Unavailable

13

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

14

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B11 for details)

-------

Unavailable

15

POD-HEADLIGHT,UPPER,RED (A99CH50(AB)(EB))

5433042-136

Unavailable

15

POD-HEADLIGHT,UPPER,OLIVE GR (A99CH50(AA)(EA))

5433042-191

Unavailable

16

PLUG,HOLE(10)

5432952

$5.59

17

SCREW,SET

7517625

$4.79

17

SCREW,SET

7517625

$4.79

18

SWITCH-HANDLEBAR,HI/LO/OFF,6P Substituted by 4010262

4110243

$196.90

19

SPACER,SWITCH,LH

5432926

$2.63

20

GRIP, HANDLEBAR

5431030

$24.27

21

BRKT,POD MTG,BLK.

5240586-067

Unavailable

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

23

KNOB,ADJUSTING

4032079

$23.99

24

BOOT, HEADLIGHT

5411120

$27.99

25

COLLAR,LOCK

4032077

$27.99

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

ROD,ADJUSTING

4032078

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$24.27

29

CABLE,CHOKE,W/ADJUSTER

7080726

$99.99

30

NUT-LOCK(10)

7542122

$1.49

31

NUT,U-TYPE(10)

7670089

$5.59

32

POWERPLUG ASM,12V

2410025

Unavailable

33

RIVET(50)

7621334

$1.49

34

CLIP,CABLE RETAIN,(10)

7080631

$6.29

35

SCREW(10)

7522021

$3.99

36

POD,H/L.LOW.BLK Substituted by 5433366-070

5432314-070

$93.08

37

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

37

SWITCH,IGN.W/ CON (Incl. Key)NOTE: Ignition key may be ordered by using the four digit number on the key.

4110209

Unavailable

37

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

37

SWITCH,IGN.W/ CON (Incl. Key)NOTE: Ignition key may be ordered by using the four digit number on the key.

4110209

Unavailable

38

COVER, KEY Substituted by 5433534

5431964

Unavailable

39

Nut

7080229

$19.99

40

SENSOR,HALL EFFECT Substituted by 2201625

4040081

Unavailable

41

SCREW(10)

7515181

$2.39

42

WASHER(10)

7558203

$3.19
