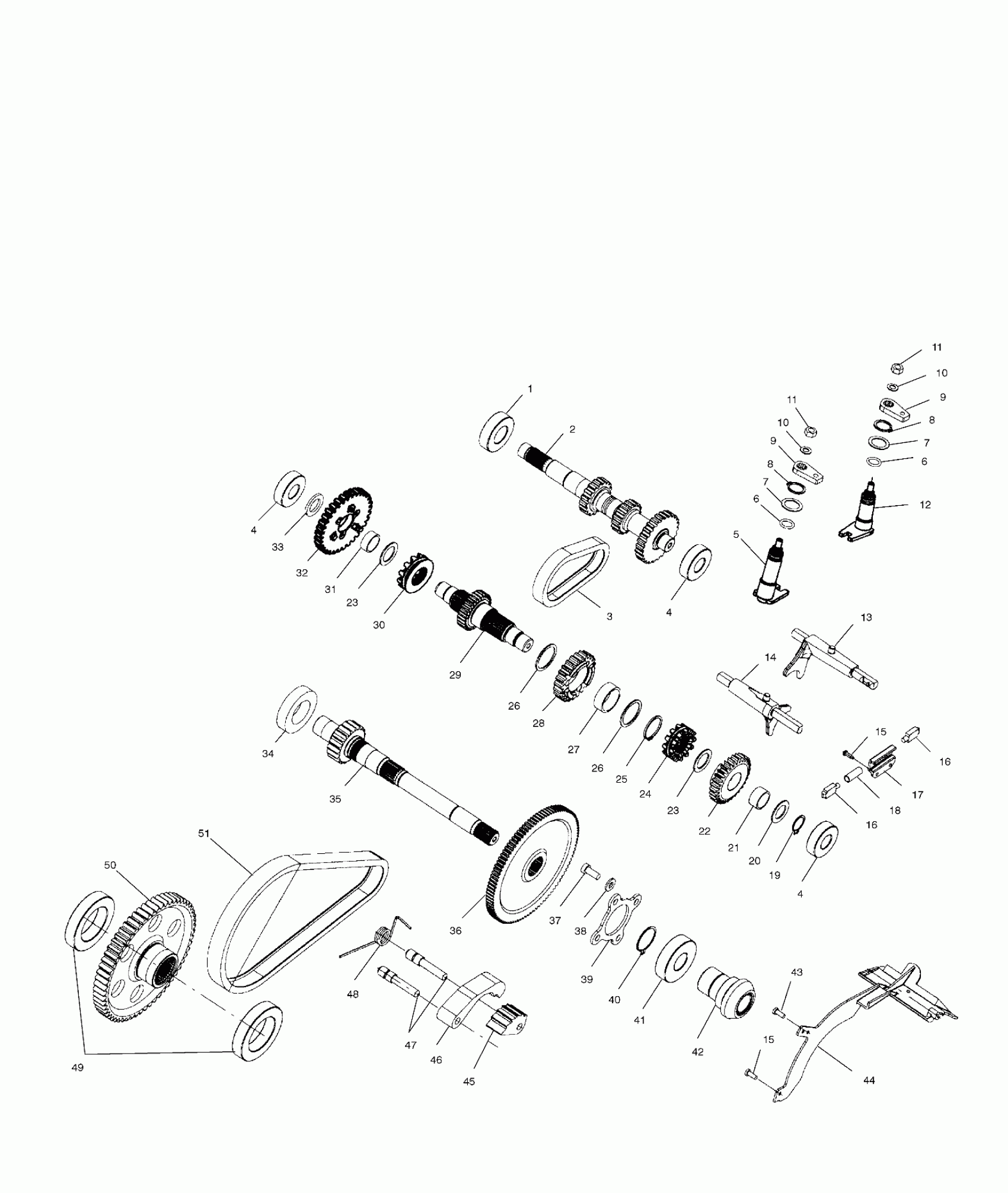

Polaris SPORTSMAN 500 - A99CH50AB GEARCASE (Internal Components) - A99CH50EB (4949114911d003) Diagram

#

Description
Price

-

SHAFT ASM,GEARCASE,(PRD) (See Footnote) (Incl. 1-51 and all on Gearcase - Cases and Snorkel Pg. D2)

1341277

Unavailable

1

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

2

SHAFT,INPUT,31T,HCR

3233361

Unavailable

3

CHAIN,SILENT,34P

3233036

Unavailable

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

5

SHAFT-SHIFT

3233661

Unavailable

6

O-Ring

3233548

$27.99

6

O-Ring

3233548

$27.99

7

Washer

3233040

$9.59

7

Washer

3233040

$9.59

8

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

8

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

9

Bellcrank

3233153

$27.99

9

Bellcrank

3233153

$27.99

10

Washer

3233054

$6.46

10

Washer

3233054

$6.46

11

Nut

3233055

Unavailable

11

Nut

3233055

Unavailable

12

SHAFT-SHIFT

3233662

Unavailable

13

FORK,SHIFT,LOW

3233663

$188.10

14

FORK,SHIFT,H/R

3233664

Unavailable

15

SCREW Substituted by 3233747

3233033

Unavailable

15

SCREW Substituted by 3233747

3233033

Unavailable

16

PIN,INTERLOCK

3233308

Unavailable

16

PIN,INTERLOCK

3233308

Unavailable

17

BRACKET,INTERLOCK

3233309

$20.63

18

Spring

3233189

Unavailable

19

RING,RETAINING

3233177

$6.39

20

Washer

3233176

$9.59

21

BEARING,NEEDLE

3233017

$35.99

22

GEAR,30T

3233668

Unavailable

23

Washer

3233010

Unavailable

23

Washer

3233010

Unavailable

24

ENGAGEMENT-DOG

3233667

Unavailable

25

RING,RETAINING

3233029

$5.59

26

WASHER

3233012

Unavailable

26

WASHER

3233012

Unavailable

27

BEARING, NEEDLE

3233014

$43.99

28

SPROCKET,24T,12-POINT

3233532

Unavailable

29

SHAFT,REV,29T,HCR

3233362

Unavailable

30

ENGAGEMENT-DOG,LOW

3233666

$100.24

31

BEARING,NEEDLE

3233009

$39.99

32

GEAR,33T

3233665

Unavailable

33

WASHER

3233007

Unavailable

34

BEARING

3233020

$47.99

35

SHAFT,CTR,DRIVE

3233485

Unavailable

36

GEAR,O/P,100T,HCR

3233360

Unavailable

37

Screw

3233262

$1.83

38

LOCK WASHER(10)

7552901

$1.49

39

COVER,CTR.DRIVE BRG.

3233263

Unavailable

40

RING,RETAINING

3233364

$6.39

41

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

42

GEAR,16T,SPIRAL BEVEL,SNORKEL

3233365

Unavailable

43

Screw

3233282

Unavailable

44

DEFLECTOR-OIL

3233669

$7.94

45

CAM,CHAIN TENSIONER

3233434

$12.79

46

SHOE,CHAIN TENSIONER

3233433

$27.99

47

PIN,DOWEL

3233432

$7.19

48

SPRING,TORSION

3233431

$23.99

49

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

50

SPOCKET-60T,36T SP

3233670

Unavailable

51

CHAIN,SILENT

3233430

Unavailable
