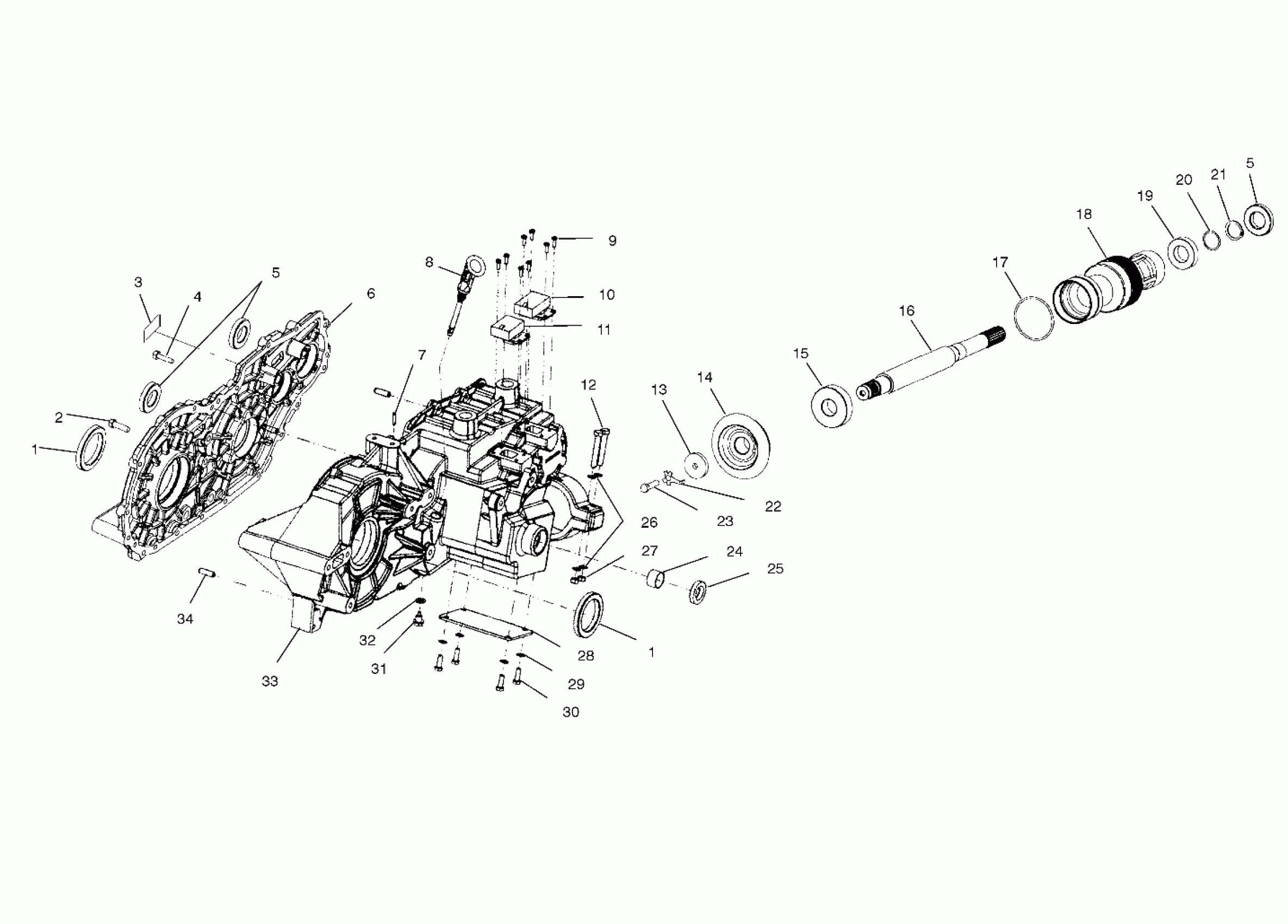

Polaris SPORTSMAN 500 - A99CH50AB GEARCASE (Cases and Snorkel) - A99CH50EB (4949114911d002) Diagram

#

Description
Price

-

Asm., Gearcase (See Footnote) (See Gearcase -Internal Components Pg. D4 forDetails)

-------

Unavailable

1

Seal

3233256

Unavailable

1

Seal

3233256

Unavailable

2

Screw

3233252

$5.27

3

DECAL-SWITCH

3233636

Unavailable

4

Screw

3233026

$6.46

5

Seal

3233248

$30.88

5

Seal

3233248

$30.88

6

GEARCASE-LH

3233671

Unavailable

7

Vent

3233037

Unavailable

8

Dipstick

3233475

Unavailable

9

SCREW,TAP

3233616

Unavailable

10

SWITCH,ITW 2 POSITION

3233617

Unavailable

11

SWITCH-H/R,ITW

3233635

Unavailable

12

BOLT

3233442

$2.23

13

Washer

3233352

$1.83

14

GEAR,31T,SNORKEL

3233476

Unavailable

15

Bearing, Ball (See Footnote) (See Gearcase -Internal Components Pg. D4, Ref. 34)

-------

Unavailable

16

SHAFT,SNORKEL

3233446

Unavailable

17

O-Ring

3233302

Unavailable

18

SNORKEL

3233303

Unavailable

19

BEARING,BALL

3233305

$31.99

20

SPACER (1.180x.995x.008) (See Footnote) NOTE: Ref. 20 indicates choices, may also be used in combinations.

3233357

$21.99

20

SPACER (1.180x.995x.040)

3233355

$2.63

20

SPACER (1.180x.995x.010)

3233353

$2.55

20

SPACER (1.180x.995x.025)

3233354

$2.55

20

SPACER (1.180x.995x.005)

3233356

$2.62

21

RING,RETAINING

3233306

$4.79

22

BOLT,LOCK SNORKEL GEAR

3233444

$2.39

23

Bolt

3233351

$1.99

24

Bushing

3233292

$31.99

25

Seal

3233293

Unavailable

26

Washer (See Footnote) (See Gearcase - InternalComponents Pg. D4, Ref. 10)

-------

Unavailable

27

NUT,FLEXLOCK

3233291

$3.03

28

PLATE,COVER

3233294

$11.59

29

WASHER,LOCK

3233295

$1.99

30

Screw

3233296

Unavailable

31

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

32

PLUG, WASHER

3233254

$7.99

33

GEARCASE-RH Substituted by 3233748

3233672

Unavailable

34

PIN, DOWEL

3233247

$7.19
