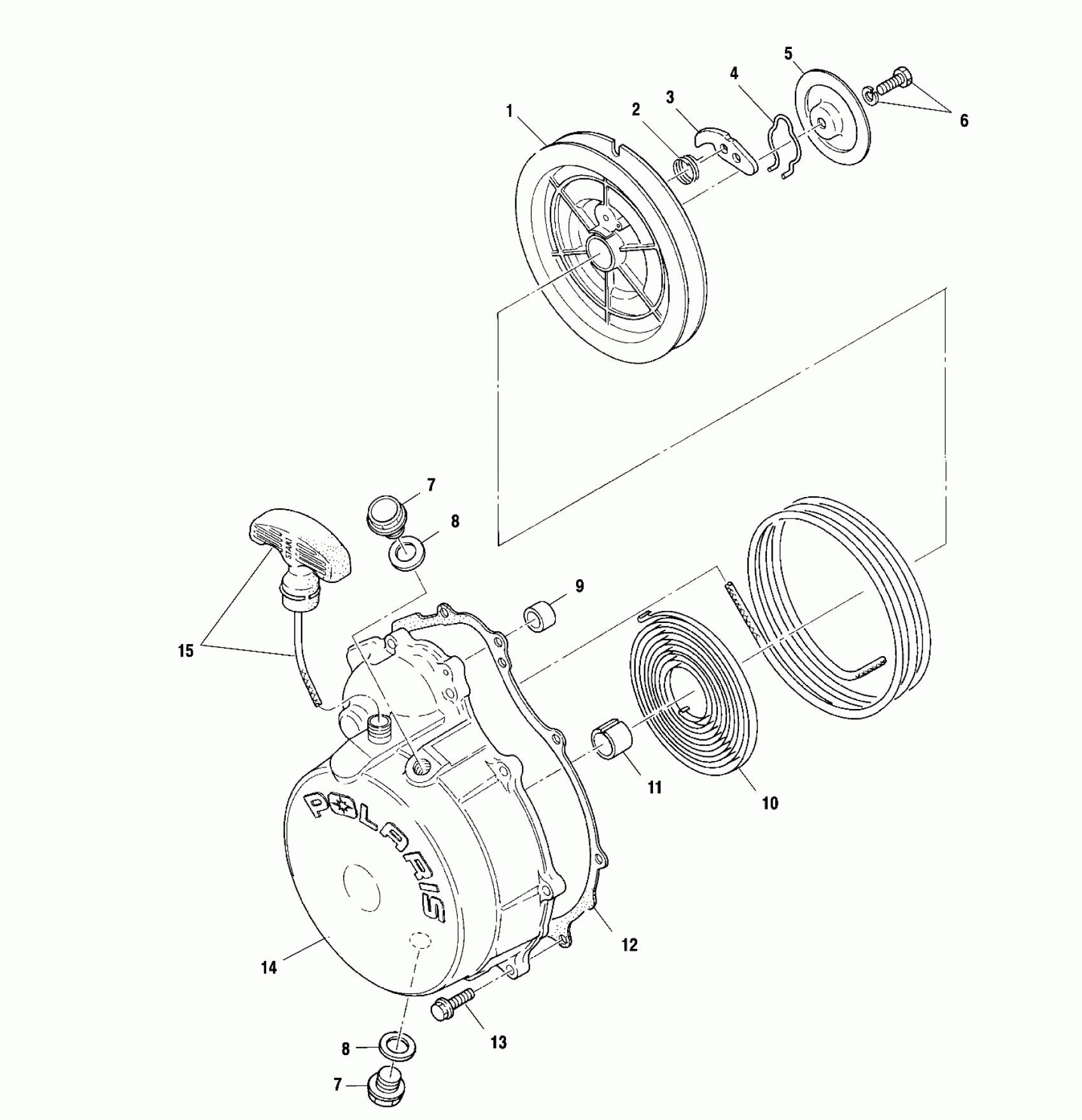

Polaris SPORTSMAN 500 - A00CH50AE RECOIL STARTER - A00CH50EB (4954805480E001) Diagram

#

Description
Price

1

REEL,STARTER

3084822

$87.99

2

Spring, Return

3083463

$4.03

3

Ratchet

3083378

$20.22

4

Spring, Friction

3083379

$24.27

5

Plate, Friction

3084744

Unavailable

6

BOLT&WASHER ASM.

3085266

Unavailable

7

PLUG Substituted by 3086749

3083453

Unavailable

7

PLUG Substituted by 3086749

3083453

Unavailable

8

GASKET

3082956

$4.84

8

GASKET

3082956

$4.84

9

BUSHING, STARTER

3083669

Unavailable

10

SPRING

3083185

$32.95

11

BUSH

3084750

$7.19

12

GASKET,RECOIL

3084933

Unavailable

13

BOLT,FLANGE(10)

3084877

Unavailable

14

RECOIL ASM. Substituted by 3085856 (Incl. 1-6,9-11,14,15)

3085652

Unavailable

14

CASE,STARTER (Incl. 11)

3085653

Unavailable

15

ROPE ASM

3085083

$39.99
