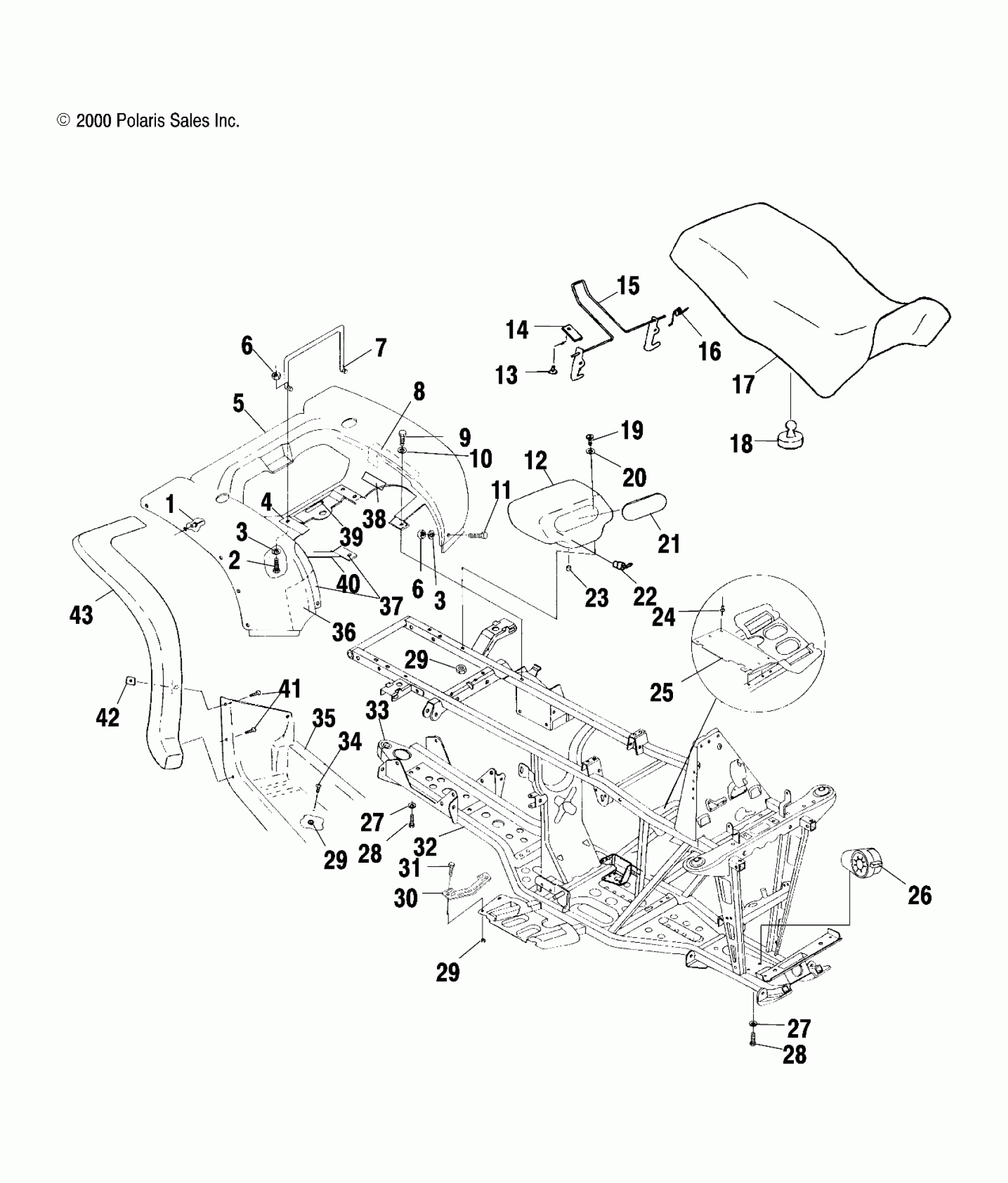

Polaris SPORTSMAN 500 - A00CH50AE REAR CAB and SEAT - A00CH50AA (4954805480A005) Diagram

#

Description
Price

1

RIVET(50)

7661645

$3.99

2

SCREW(10)

7511930

$2.39

3

WASHER(10)

7555792

$4.79

3

WASHER(10)

7555792

$4.79

4

FOIL,REAR CAB,REAR

5811107

$6.46

5

CAB,REAR,GEN4,MD.YELLOW (AE)(AK)

5432117-053

Unavailable

5

CAB,REAR,GEN 4,P.RED (AB)(AH)(EB)

5432117-136

Unavailable

5

CAB,REAR,GEN 4,OLV.GRN. (AA)(AF)

5432117-191

Unavailable

5

CAB-REAR,GEN 4,GUNMETAL (AL)

5432117-317

Unavailable

5

CAB,REAR,GEN 4,M.O. CAMO Substituted by 5433282-283A (AC)(AJ)

5433282-283

Unavailable

6

NUT(10)

7541925

$1.49

6

NUT(10)

7541925

$1.49

7

RETAINER,SEAT LATCH

5224592

Unavailable

8

FOIL,TAPE,3 X 12

5811308

$12.79

9

SCREW(10)

7512242

$2.39

10

WASHER, FLAT(10)

7555859

$1.49

11

SCREW(10) Substituted by 7511989

7512085

Unavailable

12

BOX,TOOL

5433640

Unavailable

13

BLIND RIVET(50)

7621403

$1.49

14

BRACKET,LEVER RETAINER

5211033

$29.25

15

LATCH,SEAT

1040387

$47.99

16

SPRING, LATCH

7041370

$9.59

17

COVER,SEAT,BLK.

2681747-070

$141.65

17

SEAT,BLK

2682441-070

$424.98

17

FOIL,SEATBASE,LG.

5811104

Unavailable

17

FOIL,SEATBASE,SM.

5811105

$9.91

18

Bumper, Rubber

5410414

$3.19

19

BOLT(10)

7512130

$3.99

20

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

21

COVER, TOOLBOX

5431787

Unavailable

22

FITTING,90 DEG,1/8,(10)

7052095

$4.79

23

CAP,DRAIN

5410896

$5.59

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

25

GUARD,CLUTCH,BLK

5242953-067

Unavailable

26

Front Housing (See Front Housing Pg. D1 for Details)

-------

Unavailable

27

WASHER(10)

7552603

$1.49

27

WASHER(10)

7552603

$1.49

28

SCREW(10)

7512492

$1.49

28

SCREW(10)

7512492

$1.49

29

NUT-LOCK(10)

7542122

$1.49

29

NUT-LOCK(10)

7542122

$1.49

29

NUT-LOCK(10)

7542122

$1.49

30

SPACER,FOOTWELL

5432280

$8.79

31

SCREW

7517377

$4.79

32

MAINFRAME,BLK Substituted by 1013359-067 (If built before 3/13/00)

1012979-067

Unavailable

32

FRAME,MAIN,BLK. (If built after 3/13/00)

1013359-067

Unavailable

33

DECAL-HITCH (1225)

7078261

Unavailable

34

SCREW Substituted by 7512279

7517376

Unavailable

35

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

35

FOOTWELL-NYLON,RH,BLK

5433219-070

$230.70

36

FOIL FOAM

5811111

$32.37

37

FOIL,FR,REAR CAB

5811106

$8.89

38

DECAL,CARB.INFO.

7073761

Unavailable

39

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

40

FOIL-FOAM,(6X1)

5811087

Unavailable

41

BOLT(10)

7512232

$1.49

42

NUT, SPEED(10)

7670057

$1.49

43

GUARD-MUD,REAR,LH,BLK

5431796-070

Unavailable

43

GUARD-MUD,REAR,RH,BLK

5431797-070

Unavailable
