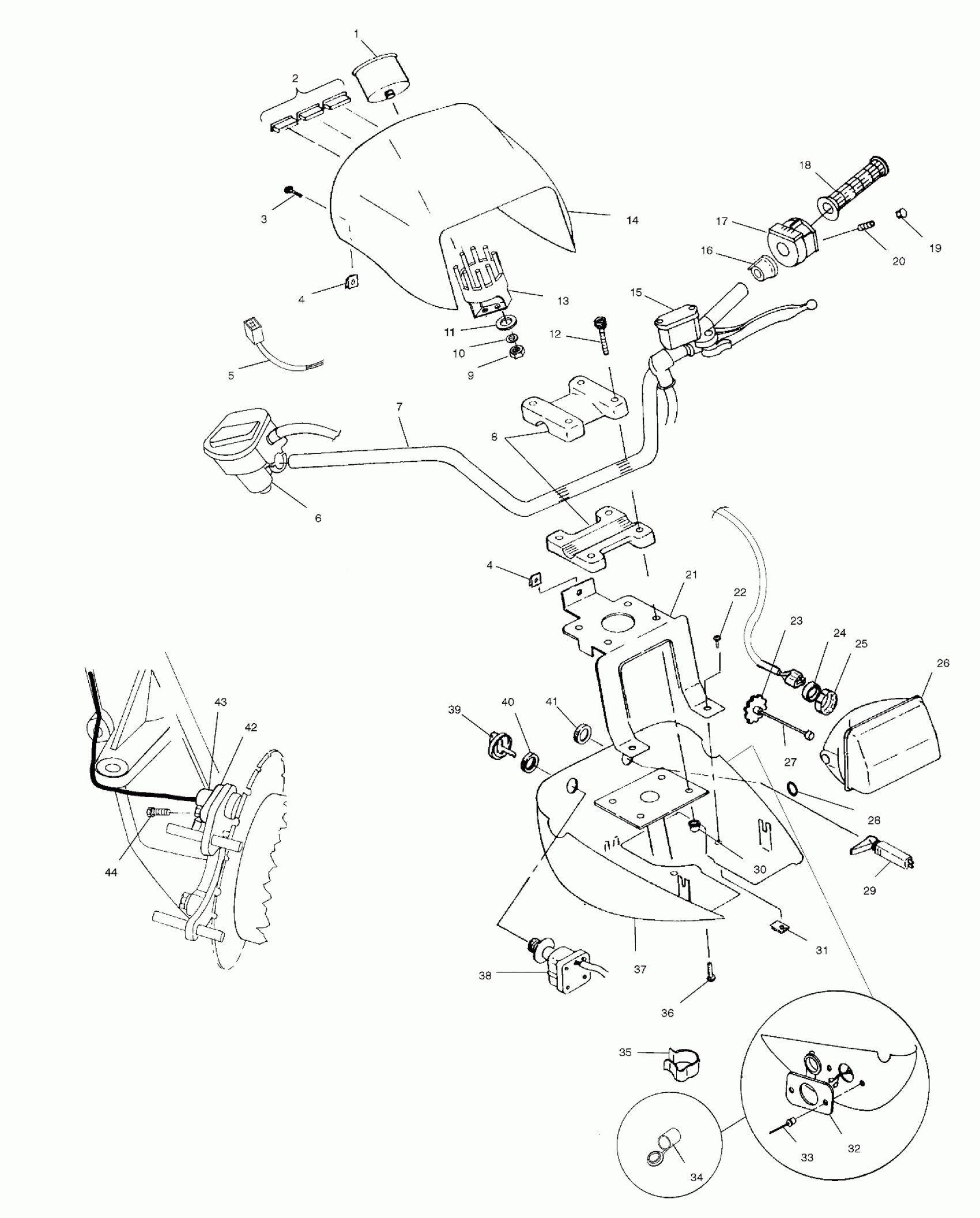

Polaris SPORTSMAN 500 - A00CH50AE HANDLEBAR and HEADLIGHT POD - A00CH50AA (4954805480C001) Diagram

#

Description
Price

1

SPEEDO ASM,3.38",6-PULSE Substituted by 3280363

3280290

Unavailable

1

SPEEDO,ASM,KILO,3.38" 6-PULSE Substituted by 3280358 (EB)

3280312

Unavailable

2

PLUG,INDIC.HOLE

5430967

$6.46

2

INDIC"HOT TEMPERATURE"

4040053

$32.37

2

INDIC"NEUT./REV."

4040054

$32.37

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

4

NUT

7670086

$3.97

4

NUT

7670086

$3.97

5

HARNESS,CTR.PNL.

2460668

$11.43

6

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B11, Ref. 5)

----

Unavailable

7

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$119.99

8

KIT,H'BAR BLOCK (Incl. Blocks and 8,12,30)

2200774

Unavailable

8

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

9

NUT, BRASS(10)

7541933

Unavailable

10

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

11

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

12

SCREW(10)

7515189

$1.19

13

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

14

POD-HEADLIGHT,UPPER,RED (AB)(AH)(EB)

5433042-136

Unavailable

14

POD-HEADLIGHT,UPPER,OLIVE GR (AA)(AF)

5433042-191

Unavailable

14

POD,HDLIGHT,UPPER,MD.YLW (AE)(AK)

5433042-053

Unavailable

14

POD-HEADLIGHT,UPPER,GUNMETAL (AL)

5433042-317

Unavailable

14

HEADLIGHT POD,UPPER,M.O. CAMO Substituted by 5433289-283A (AC)(AJ)

5433289-283

Unavailable

15

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B12 for details)

----

Unavailable

16

SPACER,SWITCH,LH

5432926

$2.62

17

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$206.41

18

GRIP, HANDLEBAR

5431030

$28.32

19

PLUG,HOLE(10)

5432952

$6.46

20

SCREW,SET

7517625

$4.76

21

BRKT,POD MTG,BLK.

5240586-067

$44.99

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

23

KNOB,ADJUSTING

4032079

$28.32

24

BOOT, HEADLIGHT

5411120

$28.32

25

COLLAR,LOCK

4032077

$27.78

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

ROD,ADJUSTING

4032078

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$28.32

29

CABLE,CHOKE,W/ADJUSTER

7080726

$101.17

30

NUT-LOCK(10)

7542122

$1.19

31

NUT,U-TYPE(10)

7670089

$5.56

32

POWERPLUG ASM,12V (If built before 9/27/99)

2410025

Unavailable

33

RIVET(50)

7621334

$1.49

34

RECEPTACLE-POD MNT,12 VOLT (If built after 9/27/99)

4010283

Unavailable

35

CLIP,CABLE RETAIN,(10)

7080631

Unavailable

36

SCREW(10)

7522021

Unavailable

37

POD,H/L.LOW.BLK Substituted by 5433366-070 (If built before 9/27/99)(AA)(AB)

5432314-070

$93.08

37

POD,H/L,LOW,BLK. (If built after 4/24/00)(AC)(AJ)(AF)(AH)

5431811-070

Unavailable

37

POD,HEADLIGHT,LOWER,BLK (If built between 9/27/99 and 4/24/00) (AA)(AB)(AE)(AF)(AH)(AK)(AL)(EB)

5433366-070

$93.08

37

POD,LWR HDLGHT,CAMO,MOD Substituted by 5433366-070 (If built between 9/27/99 and 4/24/00)(AC)(AJ)

5433706-283

$93.08

38

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

$14.56

38

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

$14.29

38

SWITCH,IGNITION (Incl. Key)

4110264

$109.27

39

KEY SWITCH KEY COVER

5433534

$13.75

40

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

41

Nut

7080229

$19.84

42

SENSOR,HALLEFFECT (If built after 8/09/99)(Incl. 43)

4010298

$117.37

42

SENSOR,HALL EFFECT Substituted by 2201625 (If built before 8/09/99)

4040081

$232.37

43

CAP-HALL SENSOR (If built after 8/09/99)

5132382

$24.27

44

Screw

7517658

$5.56
