- SPORTSMAN 500 - A00CH50AE
GEARCASE (INTERNAL COMPONENTS) - A00CH50AK (4954805480D005)

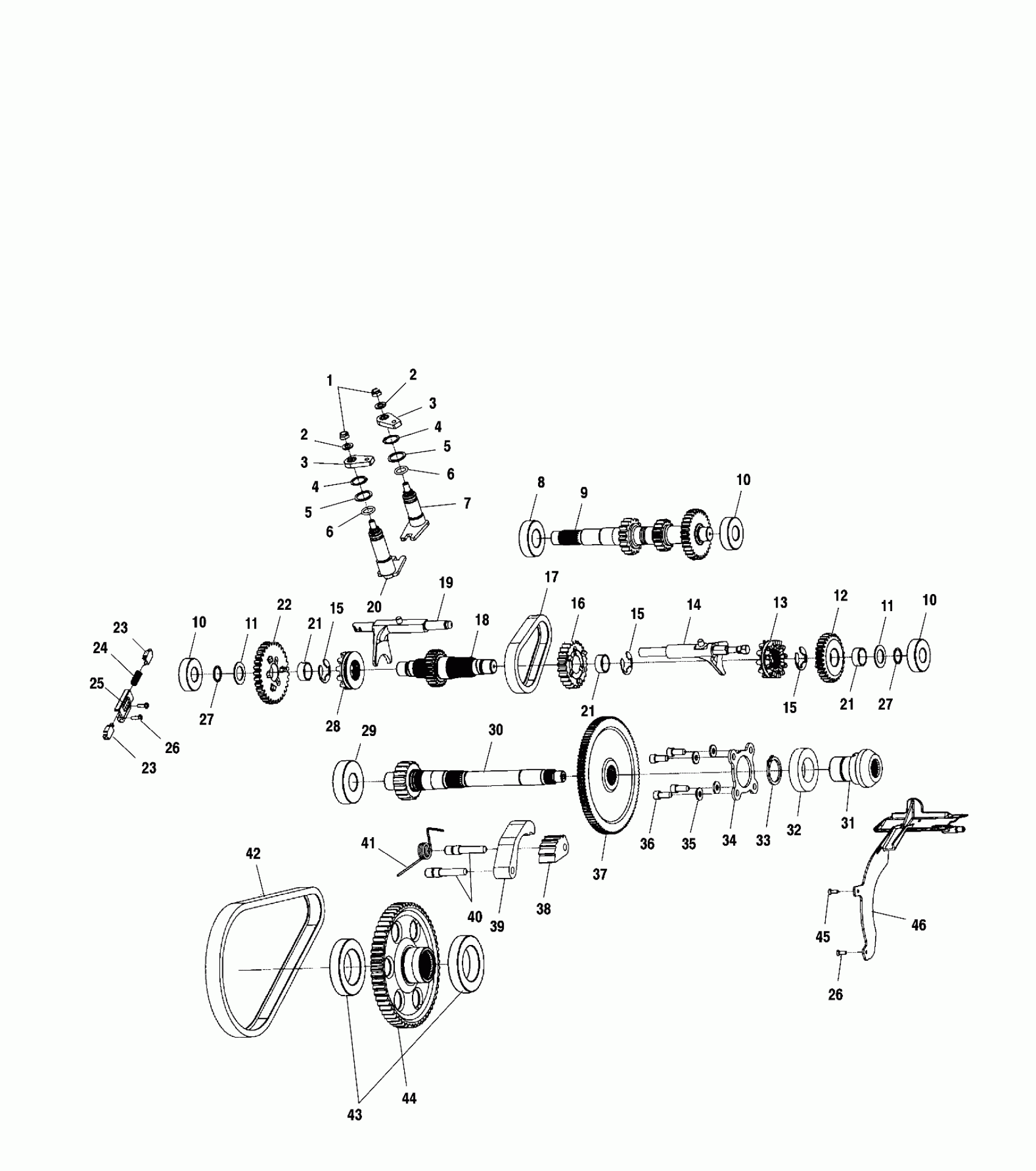

Polaris SPORTSMAN 500 - A00CH50AE GEARCASE (INTERNAL COMPONENTS) - A00CH50AK (4954805480D005) Diagram
#
-
GEARCASE,SHAFT,PRD,500INTL (See Footnote) (Incl. 1-37 and all on Gearcase (Cases and Snorkel) Pg. D7) (If built after 9/10/99)
1341332
Unavailable
1
Nut
3233055
Unavailable
2
Washer
3233054
$6.46
2
Washer
3233054
$6.46
3
Bellcrank
3233153
$27.99
3
Bellcrank
3233153
$27.99
4
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
4
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
5
Washer
3233040
$9.59
5
Washer
3233040
$9.59
6
O-Ring
3233548
$27.99
6
O-Ring
3233548
$27.99
7
SHAFT-SHIFT
3233662
Unavailable
8
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
9
SHAFT,INPUT,31T,HCR
3233361
Unavailable
10
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
10
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
10
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
11
Washer
3233176
$9.59
11
Washer
3233176
$9.59
12
GEAR,30T,12PT
3233744
Unavailable
13
DOG,ENGAGE,HIGH/REV 12PT
3233743
Unavailable
14
FORK,SHIFT,H/R
3233664
Unavailable
15
RING,RET-RING,EXTERNAL
3233720
$9.59
15
RING,RET-RING,EXTERNAL
3233720
$9.59
15
RING,RET-RING,EXTERNAL
3233720
$9.59
16
SPROCKET,24T
3233719
$109.27
17
CHAIN,SILENT,34P
3233036
Unavailable
18
SHAFT,REVERSE,29T
3233742
$174.60
19
FORK,SHIFT,LOW
3233663
$188.10
20
SHAFT-SHIFT
3233661
Unavailable
21
BEARING,NDL,SPLIT CAGE
3233718
$35.99
21
BEARING,NDL,SPLIT CAGE
3233718
$35.99
21
BEARING,NDL,SPLIT CAGE
3233718
$35.99
22
GEAR,33T
3233731
Unavailable
23
PIN,INTERLOCK
3233308
Unavailable
23
PIN,INTERLOCK
3233308
Unavailable
24
Spring
3233189
Unavailable
25
BRACKET,INTERLOCK
3233309
$20.63
26
SCREW-TAPPING,W/LOCK WASHER
3233747
Unavailable
26
SCREW-TAPPING,W/LOCK WASHER
3233747
Unavailable
27
RING,RETAINING
3233177
$6.39
27
RING,RETAINING
3233177
$6.39
28
DOG,ENGAGEMENT,LOW
3233732
$169.98
29
BEARING
3233020
$47.99
30
SHAFT-CENTER DRIVE
3233715
Unavailable
31
GEAR,16T,SPIRAL BEVEL,SNORKEL
3233365
Unavailable
32
BEARING-BALL 6007 C3 35 X 62 X 14
3233265
$39.99
33
RING,RETAINING
3233364
$6.39
34
COVER,CTR.DRIVE BRG.
3233263
Unavailable
35
LOCK WASHER(10)
7552901
$1.49
36
Screw
3233262
$1.83
37
GEAR,O/P,100T,HCR
3233360
Unavailable
38
CAM,CHAIN TENSIONER
3233434
$12.79
39
SHOE,CHAIN TENSIONER
3233433
$27.99
40
PIN,DOWEL
3233432
$7.19
41
SPRING,TORSION
3233431
$23.99
42
CHAIN,SILENT
3233430
Unavailable
43
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
44
SPOCKET-60T,36T SP
3233670
Unavailable
45
Screw
3233282
Unavailable
46
DEFLECTOR-OIL
3233669
$7.94
