- SPORTSMAN 500 - A00CH50AE
GEARCASE (Internal Components) - A00CH50AK (4954805480D003)

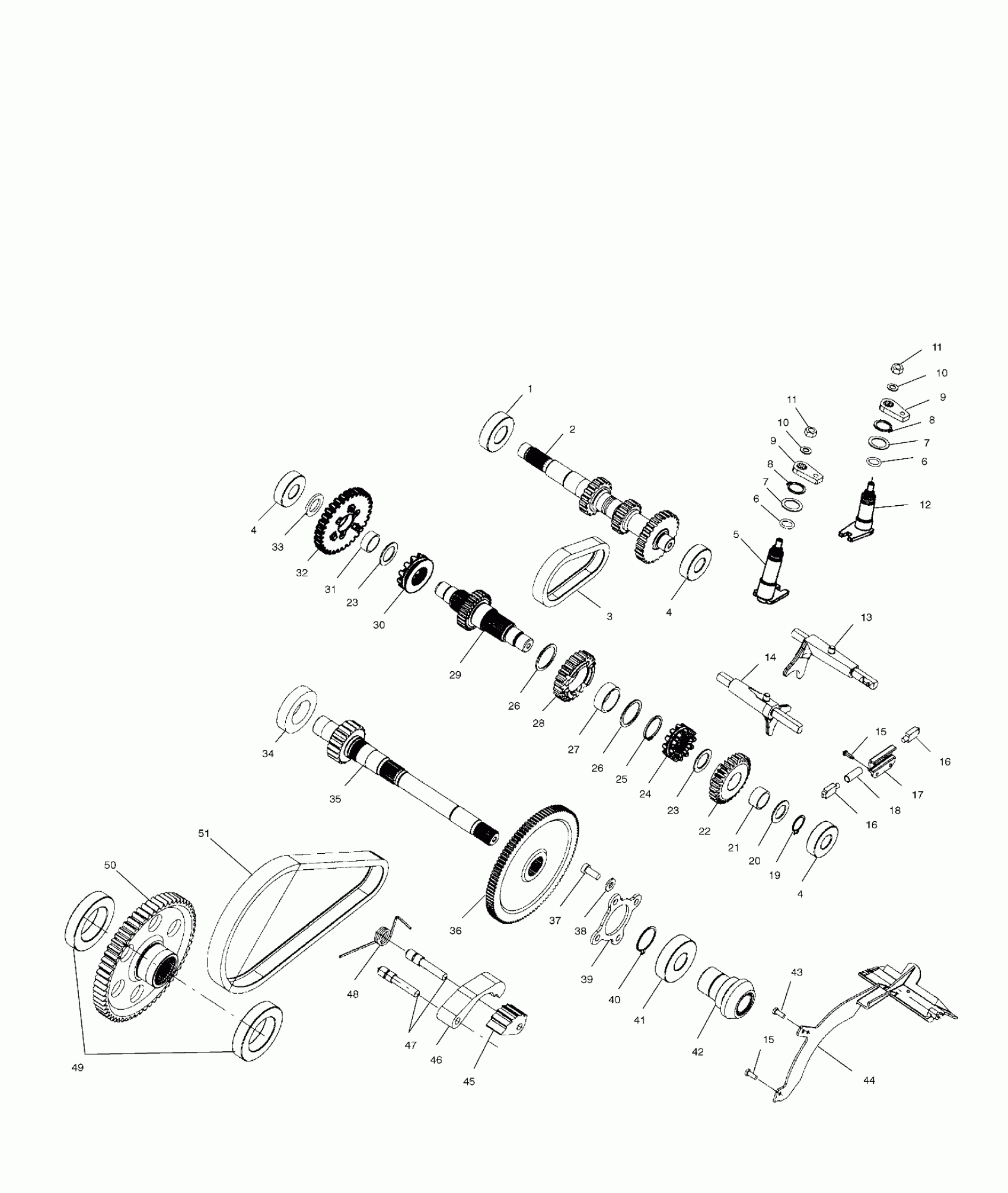

Polaris SPORTSMAN 500 - A00CH50AE GEARCASE (Internal Components) - A00CH50AK (4954805480D003) Diagram
#
-
GEARCASE SHAFT,PRD,ASM. Substituted by 1341332 (See Footnote) (Incl. 1-36 and all on Gearcase (Cases and Snorkel) Pg. D7) (If built before 9/10/99)
1341310
Unavailable
1
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
2
SHAFT,INPUT,31T,HCR
3233361
Unavailable
3
CHAIN,SILENT,34P
3233036
Unavailable
4
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
4
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
4
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
5
SHAFT-SHIFT
3233661
Unavailable
6
O-Ring
3233548
$27.99
6
O-Ring
3233548
$27.99
7
Washer
3233040
$9.59
7
Washer
3233040
$9.59
8
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
8
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
9
Bellcrank
3233153
$27.99
9
Bellcrank
3233153
$27.99
10
Washer
3233054
$6.46
10
Washer
3233054
$6.46
11
Nut
3233055
Unavailable
11
Nut
3233055
Unavailable
12
SHAFT-SHIFT
3233662
Unavailable
13
FORK,SHIFT,LOW
3233663
$188.10
14
FORK,SHIFT,H/R
3233664
Unavailable
15
SCREW Substituted by 3233747
3233033
Unavailable
15
SCREW Substituted by 3233747
3233033
Unavailable
16
PIN,INTERLOCK
3233308
Unavailable
16
PIN,INTERLOCK
3233308
Unavailable
17
BRACKET,INTERLOCK
3233309
$20.63
18
Spring
3233189
Unavailable
19
RING,RETAINING
3233177
$6.39
20
Washer
3233176
$9.59
21
BEARING,NEEDLE
3233017
$35.99
22
GEAR,30T
3233668
Unavailable
23
Washer
3233010
Unavailable
23
Washer
3233010
Unavailable
24
ENGAGEMENT-DOG
3233667
Unavailable
25
RING,RETAINING
3233029
$5.59
26
WASHER
3233012
Unavailable
26
WASHER
3233012
Unavailable
27
BEARING, NEEDLE
3233014
$43.99
28
SPROCKET,24T,12-POINT
3233532
Unavailable
29
SHAFT,REV,29T,HCR
3233362
Unavailable
30
ENGAGEMENT-DOG,LOW
3233666
$100.24
31
BEARING,NEEDLE
3233009
$39.99
32
GEAR,33T
3233665
Unavailable
33
WASHER
3233007
Unavailable
34
BEARING
3233020
$47.99
35
SHAFT-CENTER DRIVE
3233715
Unavailable
36
GEAR,O/P,100T,HCR
3233360
Unavailable
37
Screw
3233262
$1.83
38
LOCK WASHER(10)
7552901
$1.49
39
COVER,CTR.DRIVE BRG.
3233263
Unavailable
40
RING,RETAINING
3233364
$6.39
41
BEARING-BALL 6007 C3 35 X 62 X 14
3233265
$39.99
42
GEAR,16T,SPIRAL BEVEL,SNORKEL
3233365
Unavailable
43
Screw
3233282
Unavailable
44
DEFLECTOR-OIL
3233669
$7.94
45
CAM,CHAIN TENSIONER
3233434
$12.79
46
SHOE,CHAIN TENSIONER
3233433
$27.99
47
PIN,DOWEL
3233432
$7.19
48
SPRING,TORSION
3233431
$23.99
49
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
50
SPOCKET-60T,36T SP
3233670
Unavailable
51
CHAIN,SILENT
3233430
Unavailable
