- SPORTSMAN 500 - A00CH50AE
GEAR SELECTOR - A00CH50AA (4954805480C014)

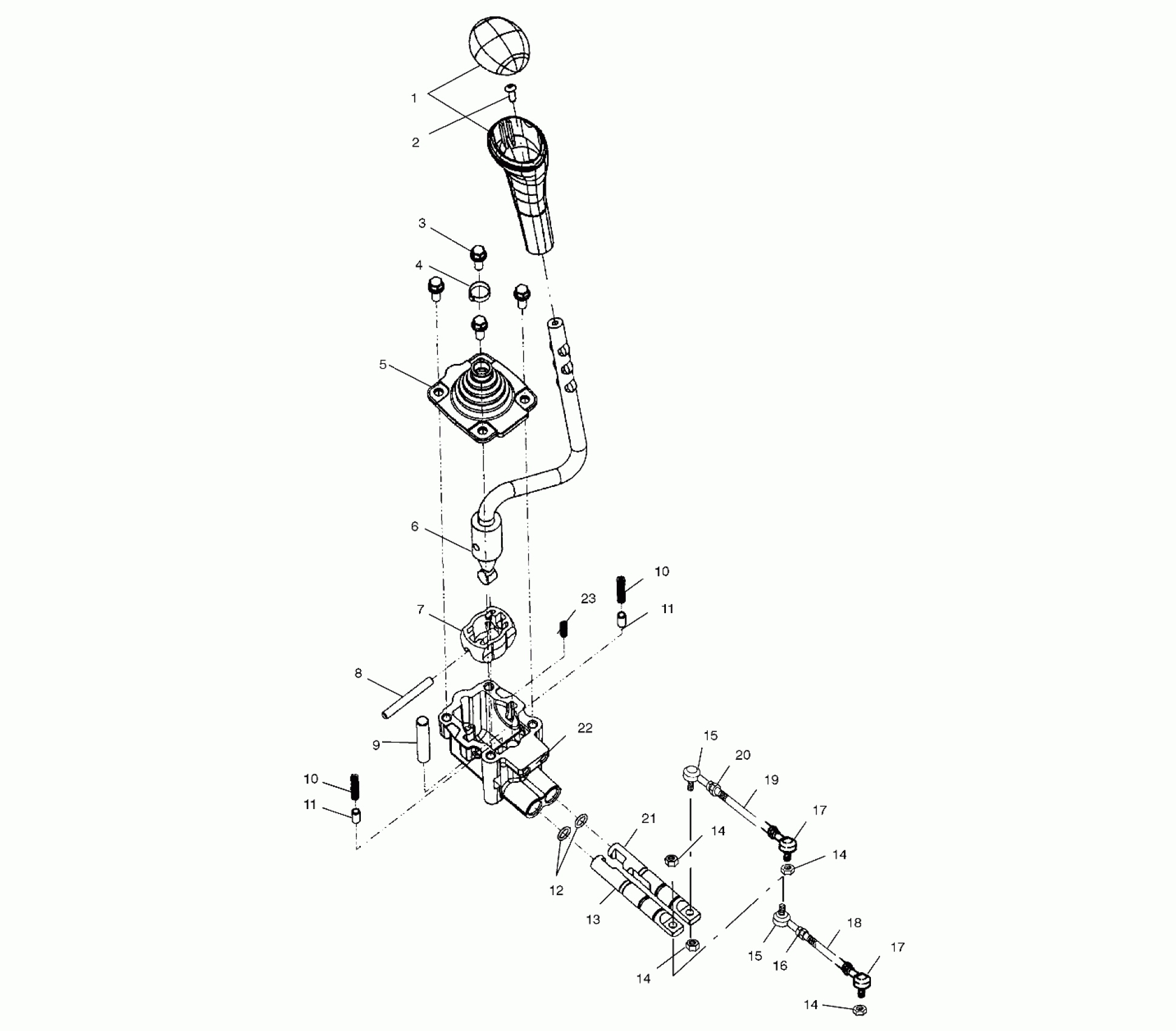

Polaris SPORTSMAN 500 - A00CH50AE GEAR SELECTOR - A00CH50AA (4954805480C014) Diagram
#
Description
Price
-
SELECTOR ASM,GEAR (Incl. 1-13,21-23)
1341271
Unavailable
1
KNOB ASM,HI/LO/REV. Substituted by 3233195-070
3233195
$49.99
2
SCREW,(10)
7512024
$4.79
3
Screw
3233649
Unavailable
4
Strap, Wire
3233131
$9.70
5
COVER-GEAR SELECTOR BOOT
3233648
$31.99
6
SUBASM-HANDLE GEAR SELECTOR
3233658
Unavailable
7
PLASTIC-SPHERE
3233646
$14.07
8
PIN-DOWEL
3233754
$9.99
9
PIN-DOWEL
3233644
$7.99
10
SPRING-DETENT
3233642
$16.99
10
SPRING-DETENT
3233642
$16.99
11
BULLET,DETENT
3233060
$64.99
11
BULLET,DETENT
3233060
$64.99
12
O-RING
3233076
$6.39
13
SLIDE-LOW
3233639
Unavailable
14
NUT(10) Substituted by 7546703
7546707
Unavailable
14
NUT(10) Substituted by 7546703
7546707
Unavailable
14
NUT(10) Substituted by 7546703
7546707
Unavailable
14
NUT(10) Substituted by 7546703
7546707
Unavailable
15
ROD END,RH,6MM.
7061014
$65.99
15
ROD END,RH,6MM.
7061014
$65.99
16
NUT(10)
7546701
$3.99
17
ROD END,LH,6MM.
7061013
$65.99
17
ROD END,LH,6MM.
7061013
$65.99
18
ROD,SHIFT LINKAGE,LOW RANGE
5020824
$63.99
19
ROD-SHIFT LINKAGE,HI RANGE
5020823
$63.99
20
NUT(10)
7546702
$1.49
21
SLIDE-HIGH/REV
3233640
Unavailable
22
GEAR,SELECTOR,BODY
3233641
$99.99
23
SPRING-CENTERING
3233643
$52.79
