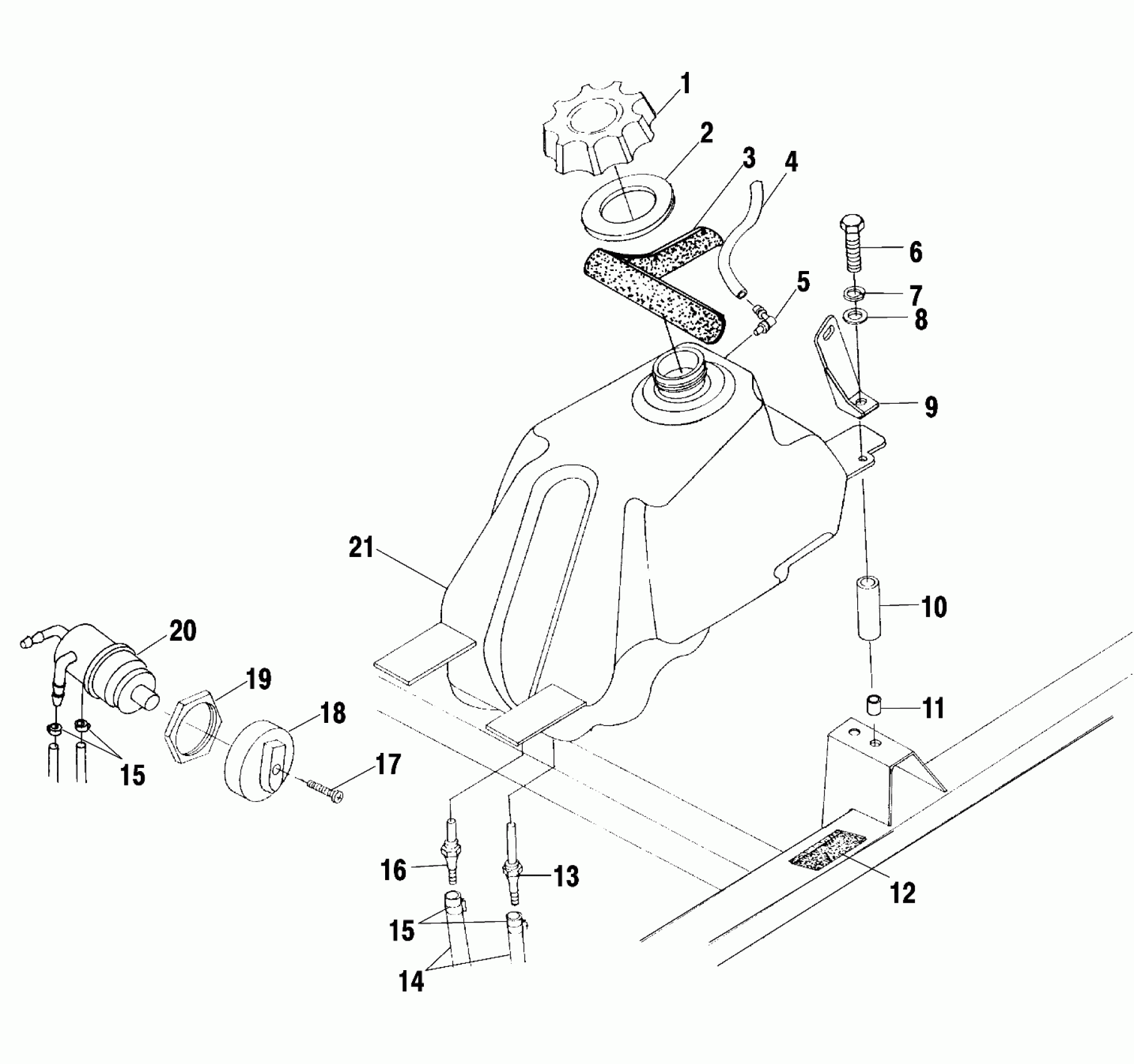

Polaris SPORTSMAN 500 - A00CH50AE FUEL TANK - A00CH50AA (4954805480B003) Diagram

#

Description
Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.59

3

SEAL-FOAM,21 IN

5811310

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

BOLT(10) (AF)(AH)(AK)(AJ)

7512247

$2.39

6

BOLT (AA)(AB)

7517451

$5.59

7

LOCK WASHER(10)

7552801

$1.59

8

WASHER(10)

7558301

$1.49

9

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

9

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

10

SPACER (AA)(AB)

5332457

Unavailable

11

NUTSERT,HEX(10)

7547069

$3.99

12

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

13

FITTING,FUEL OUT,MAIN,4",Y

7052150

$27.99

14

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

16

FITTING,FUEL OUT,RES.,Z

7052149

$23.99

17

SCREW(10)

7517505

$1.59

18

KNOB,FUEL VALVE

5432559

$10.39

19

NUT,FUELVALVE,ATV

5432733

Unavailable

20

VALVE,3-WAY

7052161

$39.99

21

TANK ASM,FUEL (Incl. 13,16)

2520144

Unavailable
