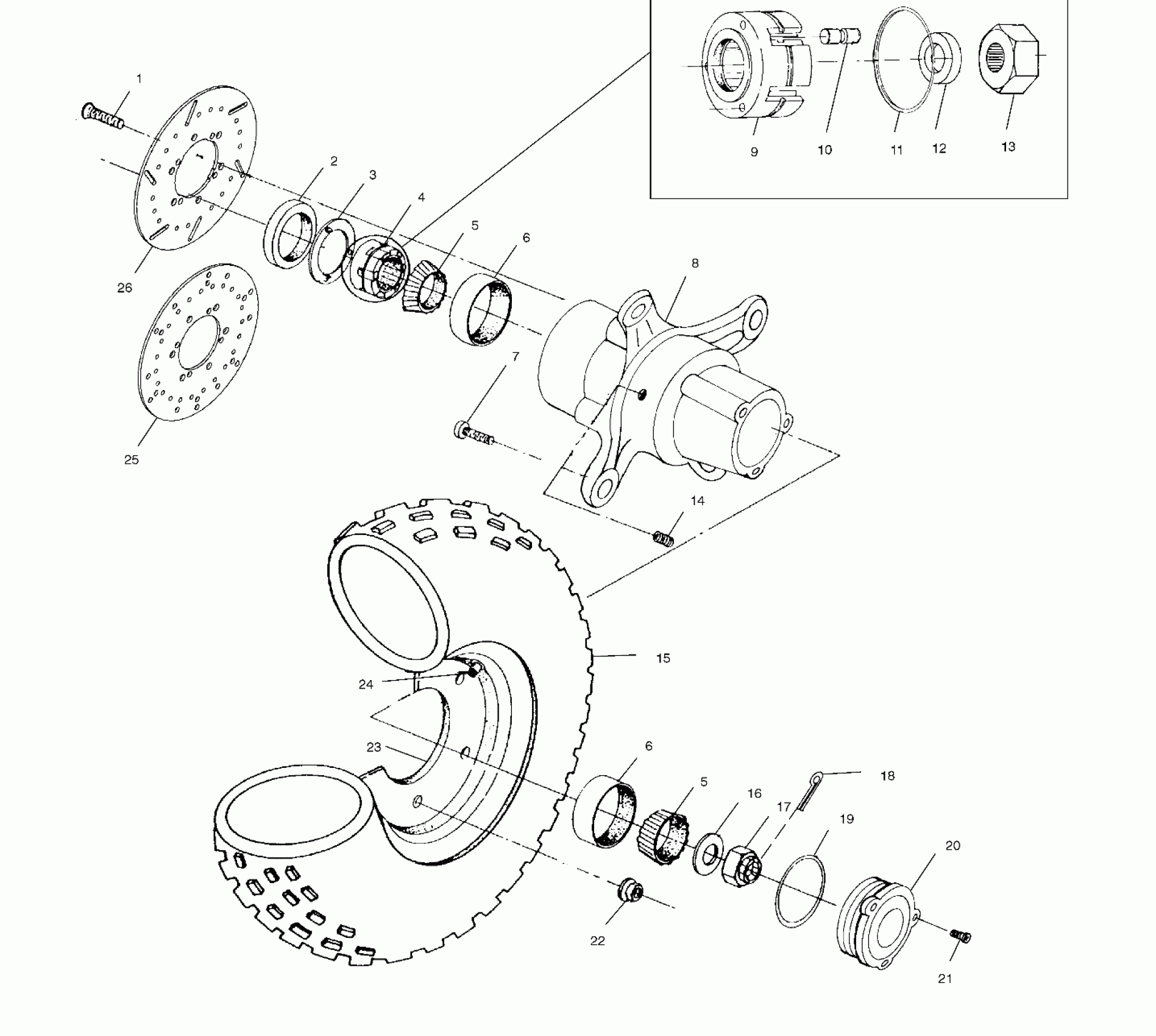

Polaris SPORTSMAN 500 - A00CH50AE FRONT WHEEL - A00CH50AA (4954805480B009) Diagram

#

Description
Price

1

BOLT(10)

7512325

$2.38

2

SEAL, FR. HUB

3610019

$36.41

3

Plate, Armature

5211148

$28.32

4

CLUTCH,FR HUB E/M

1520281

$374.99

5

BRG,TAPER.ROLL.CONE

3554506

$31.75

5

BRG,TAPER.ROLL.CONE

3554506

$31.75

6

BRG,TAPER,ROLL CUP

3554507

$31.75

6

BRG,TAPER,ROLL CUP

3554507

$31.75

7

STUD(10)

7515523

$3.17

8

HUB ASM,SHRT(3-LOBE)W/BRG RACE (Incl. 2,6,7)

1520243

Unavailable

9

Cage, Roll

3250028

Unavailable

10

ROLLS

3250010

$24.74

11

SPRING,GARTER

3250032

$17.46

12

Spacer

1321814

$24.99

13

Cam

3250030

$208.16

14

PLUG,PIPE

7052045

$13.75

15

TIRE,FR(25X8-12) (25x8-12)

5410947

$99.74

16

WASHER

7556004

$7.14

17

NUT, SLOTTED(10)

7542810

$3.17

18

COTTER PIN(10)

7661401

$0.79

19

O RING

5410470

$2.41

20

CAP,HUB,3-LOBE,AWD

5432611

$14.56

21

SCREW(10)

7512027

$1.19

22

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

23

RIM,FRONT,BLK (AA)(AC)(AE)(AF)(AK)(AJ)

1520269-067

$90.87

23

RIM,FRONT,(SILVER) (AB)(AH)(AL)(EB)

1520269-117

$90.87

24

VALVE-RIM

1525017

$6.46

25

DISC,BRAKE,8.95 OD,.158 (AF)(AH)(AK)(AL)(AJ)(EB)

5243676

Unavailable

26

DISC,BRAKE (AA)(AB)(AC)(AE)

5242935

$89.03
