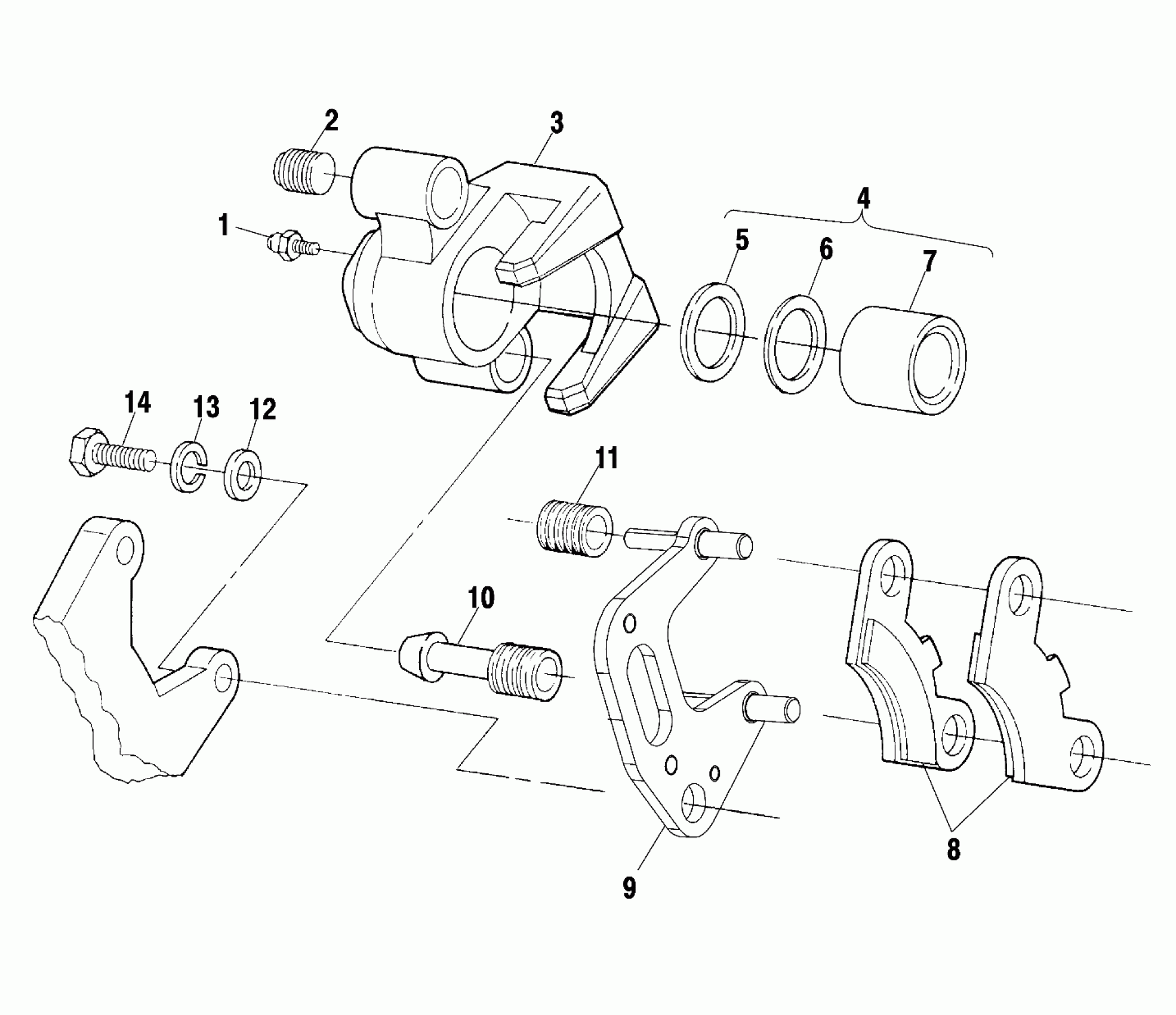

Polaris SPORTSMAN 500 - A00CH50AE FRONT BRAKE - A00CH50AA (4954805480B010) Diagram

#

Description
Price

-

CALIPER,BR,FR,RH. (Incl. 1-7,9,10)(AA)(AB)(AC)(AE)

1910310

$288.87

-

CALIPER,BR,FR,LH. (Incl. 1-7,9,10)(AA)(AB)(AC)(AE)

1910309

$288.87

-

CALIPER,ASM,BRAKE,FRONT,LH (Incl. 1-7,9,10)(AF)(AH)(AK)(AJ)(AL)(EB)

1910427

Unavailable

-

CALIPER,ASM,BRAKE,FRONT,RH (Incl. 1-7,9,10)(AF)(AH)(AK)(AJ)(AL)(EB)

1910428

Unavailable

1

SCREW,BLEEDER

7080352

$3.19

2

SETSCREW,SKT.HD.(10)

7515489

$5.59

3

KIT-BOOT,FRONT BRAKE

1930642

$11.19

3

CALIPER,LH,BRAKE,MACH. Substituted by 5131261

5131115

Unavailable

3

CALIPER,RH,BRAKE,MACH. Substituted by 5131262

5131116

Unavailable

4

PISTON & SEAL,KIT (Incl. 5-7)

1930665

$55.99

5

SQUARE RING-MOLDED (.094) (.094)

5410779

$10.51

6

RING,SQUARE,MOLDED (.103 x .134)

5410780

$10.51

7

PISTON-BRAKE,LONG Substituted by 1930665

5132294

$54.04

8

BRAKE PADS,AFT,FRONT (AF)(AH)(AK)(AJ)(AL)(EB)

2201398

Unavailable

8

KIT,BRAKEPAD,FRONT (AA)(AB)(AC)(AE)

2200465

$47.99

8

KIT,FR.BRAKEPAD,HVY.DUTY (AA)(AB)(AC)(AE)

2200901

$55.99

8

KIT,BRAKEPAD,FR,(ATV) (AA)(AB)(AC)(AE)

2201149

$55.99

9

MOUNT,ASM,CALIPER

1910411

$50.18

10

Boot, Bushing

5410495

Unavailable

11

Boot, Pin Seal

5410494

Unavailable

12

Washer (See Front Strut Pg.B8, Ref. 4)

-------

Unavailable

13

Washer (See Front Strut Pg. B8, Ref. 8)

-------

Unavailable

14

Screw (See Front Strut Pg. B8, Ref. 7)

-------

Unavailable
