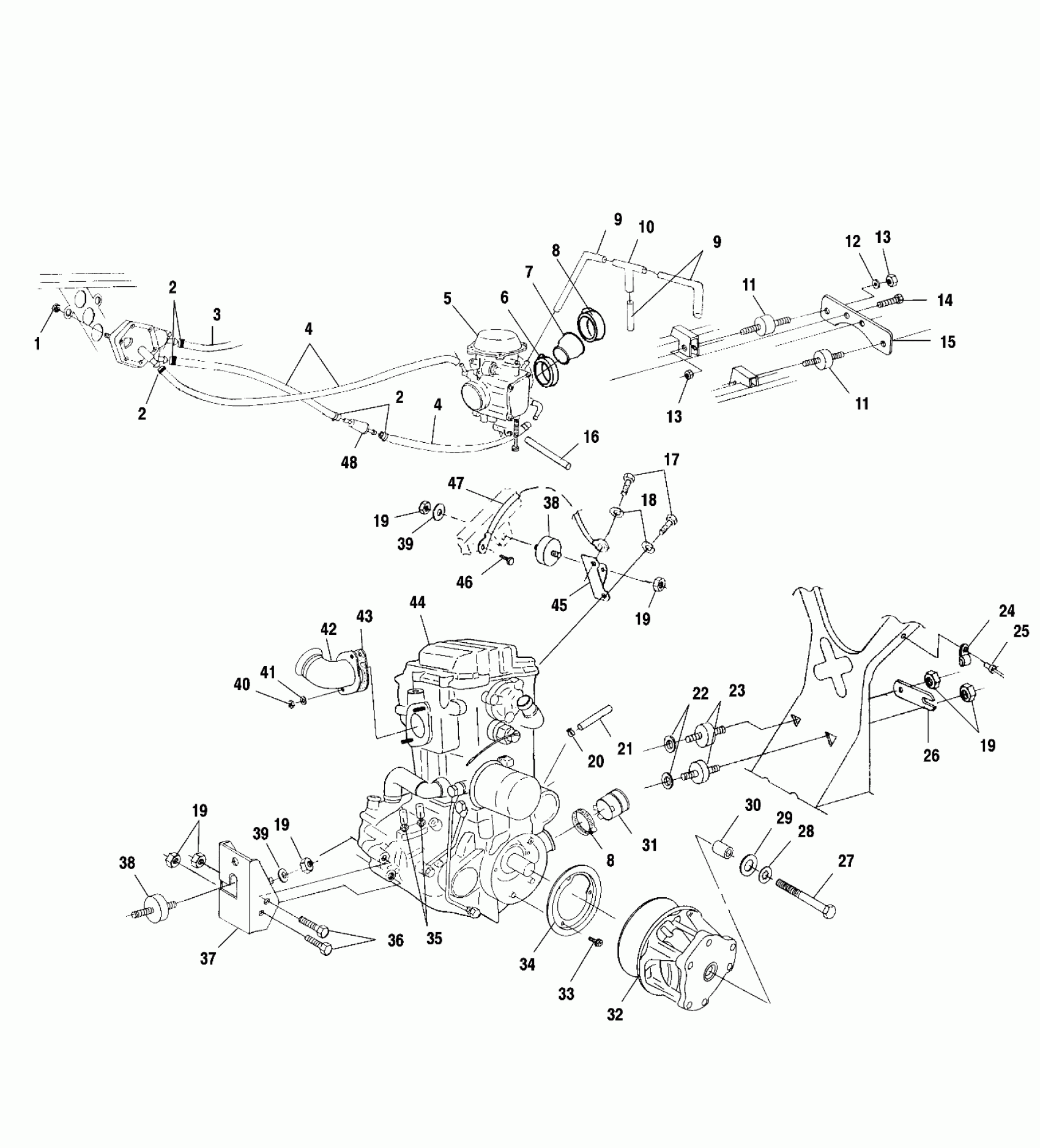

Polaris SPORTSMAN 500 - A00CH50AE ENGINE MOUNTING - A00CH50AA (4954805480B001) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

3

HOSE,(.25 IDX1.75"LG.)

5811490

Unavailable

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

Asm., Carburetor (See Carburetor Pg. D14, Ref. 47)

-------

Unavailable

6

CLAMP,BAND,NARROW

7080413

$3.19

7

BOOT,CARB

5410995

Unavailable

8

CLAMP, NARROW BAND(10)

7080511

$4.79

8

CLAMP, NARROW BAND(10)

7080511

$4.79

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

10

FITTING, TEE

7052075

$9.59

11

Mount, Rubber

3110032

$7.99

11

Mount, Rubber

3110032

$7.99

12

WASHER(10)

7552605

$5.27

13

NUTSERT,HEX(10)

7547069

$3.99

13

NUTSERT,HEX(10)

7547069

$3.99

14

Screw and Washer (See Carburetor Pg. D14, Ref. 48)

-------

Unavailable

15

STRAP,CARB.MT,BLK.

5211626-067

Unavailable

16

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

17

BOLT(10)

7512315

$4.79

18

LOCK WASHER(10)

7552901

$1.49

19

NUT

7547108

$4.79

19

NUT

7547108

$4.79

19

NUT

7547108

$4.79

19

NUT

7547108

$4.79

19

NUT

7547108

$4.79

20

CLAMP,HOSE,SPRING

7080694

$6.53

21

Hose, Breather (See Air Box Pg. B4, Ref. 16)

-------

Unavailable

22

WASHER, FLAT(10)

7555815

$3.99

23

MOUNT,RUBBER,FRONT

3110046

Unavailable

24

CLAMP,NYLON,CABLE(10)

7080539

$4.79

25

RIVET(50)

7621462

$1.49

26

STRAP,FRAME SUPPORT,BLK

5224658-067

Unavailable

27

BOLT(10)

7512566

$30.79

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

29

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

30

BUSHING-.437 X.770 X.50

5430261

$7.19

31

BOOT,CLUTCH INTAKE

5410421

$11.19

32

Asm., Drive Clutch, Braking (See Drive Clutch Pg. C5, Ref. 17)

-------

Unavailable

33

Screw and Washer (See Crankcase Pg. D8, Ref. 6)

-------

Unavailable

34

Bracket, Retainer, Seal (See Clutch Cover Pg. C7, Ref. 24)

-------

Unavailable

35

CLAMP-HOSE,.875-SS

7080474

$8.40

36

BOLT(10)

7515417

$4.79

37

MOUNT,FR.ENGINE,BLK.

5241150-067

Unavailable

38

MOUNT,RUBBER,TOP

3110044

Unavailable

38

MOUNT,RUBBER,TOP

3110044

Unavailable

39

WASHER(10)

7555801

$3.99

39

WASHER(10)

7555801

$3.99

40

Nut (See Cylinder Pg. D10, Ref. 22)

-------

Unavailable

41

Washer (See Cylinder Pg. D10, Ref. 23)

-------

Unavailable

42

MANIFOLD,BLK

1260771-029

Unavailable

43

Gasket, Exhaust (See Cylinder Pg. D10, Ref. 20)

-------

Unavailable

44

ENG.(S.B.)EH50PLE-01 (EH50PLE09)

3085556

Unavailable

45

MOUNT,ENG,TOP,BLK

5241453-067

Unavailable

46

BOLT(10)

7512232

$1.49

47

CABLE,GND-ENGINE

4010132

Unavailable

48

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
