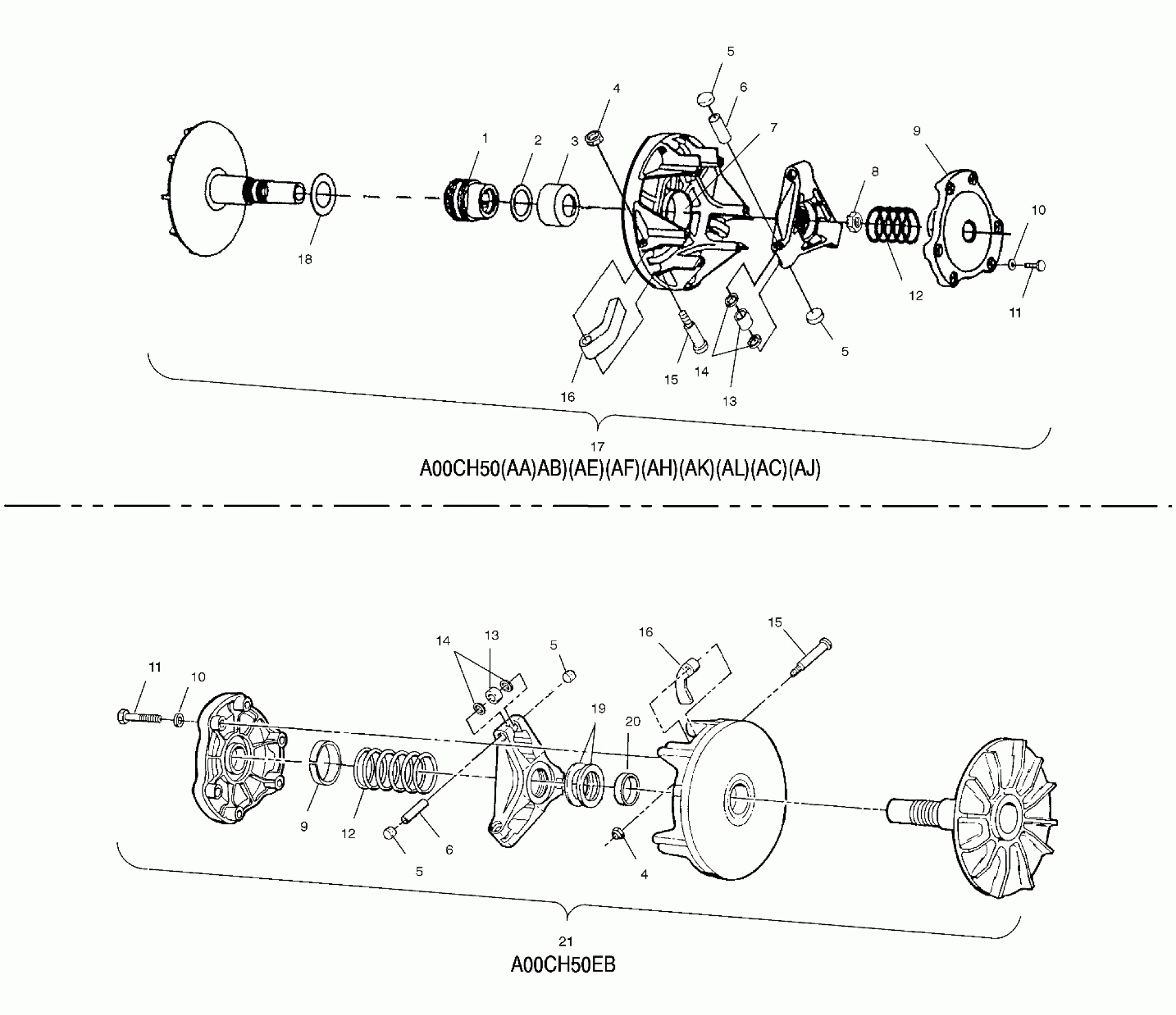

Polaris SPORTSMAN 500 - A00CH50AE DRIVE CLUTCH - A00CH50AA (4954805480C005) Diagram

#

Description
Price

1

CLUTCH,DRIVE,1-WAY,HLRD

1520231

$309.99

2

WASHER Substituted by 7556202

7556009

$6.46

3

SPACER-1.25X2.25,PM

5631119

Unavailable

4

NUT FLEX LOC(10)

7541906

$3.17

4

NUT FLEX LOC(10)

7541906

$3.17

5

BUTTON,CLUTCH

5431936

$8.08

5

BUTTON,CLUTCH

5431936

$8.08

5

BUTTON,CLUTCH

5431936

$8.08

5

BUTTON,CLUTCH

5431936

$8.08

6

PIN-ROLLER

5020422

$2.38

6

PIN-ROLLER

5020422

$2.38

7

Bearing

3585712

$31.75

8

NUT,JAM Substituted by 2201615

7547130

Unavailable

9

BEARING, COVER,(10)

3576510

$9.52

9

BEARING, COVER,(10)

3576510

$9.52

10

LOCK WASHER(10)

7552801

$1.59

10

LOCK WASHER(10)

7552801

$1.59

11

BOLT(10) Substituted by 7512163

7512176

$3.97

11

BOLT(10) Substituted by 7512163

7512176

$3.97

12

SPRING,CLUTCH

7041157

$48.56

12

SPRING,CLUTCH

7041157

$48.56

13

ASM-ROLLER AND BUSHING

1321457

$40.46

13

ASM-ROLLER AND BUSHING

1321457

$40.46

14

WASHER,MULTILUBE

5430945

$1.59

14

WASHER,MULTILUBE

5430945

$1.59

15

BOLT,SPECIAL(10)

7512266

$3.17

15

BOLT,SPECIAL(10)

7512266

$3.17

16

WT,SHIFT, 10MH(6)

5630513

$32.37

16

WT,SHIFT, 10MH(6)

5630513

$32.37

17

CLUTCH,DRIVE,BRAKING (Incl. 1-11,13-15,18)(AA)AB)(AE)(AF)(AH)(AK)(AL)(AC)(AJ)

1321706

$683.99

18

WASHER Substituted by 7556204

7556008

$11.11

19

SPACER(10) (.050")

5210754

Unavailable

19

SPACER(10) (.025")

5242981

Unavailable

19

SPACER(10) (.020")

5210752

Unavailable

19

SPACER(10) (.032")

5210753

Unavailable

20

BUSHING, DRIVEN

3576504

$23.81

21

CLUTCH,DRIVE(ATV-06) (Incl. 4-6,10-16,19,20)(EB)

1321632

$697.13
