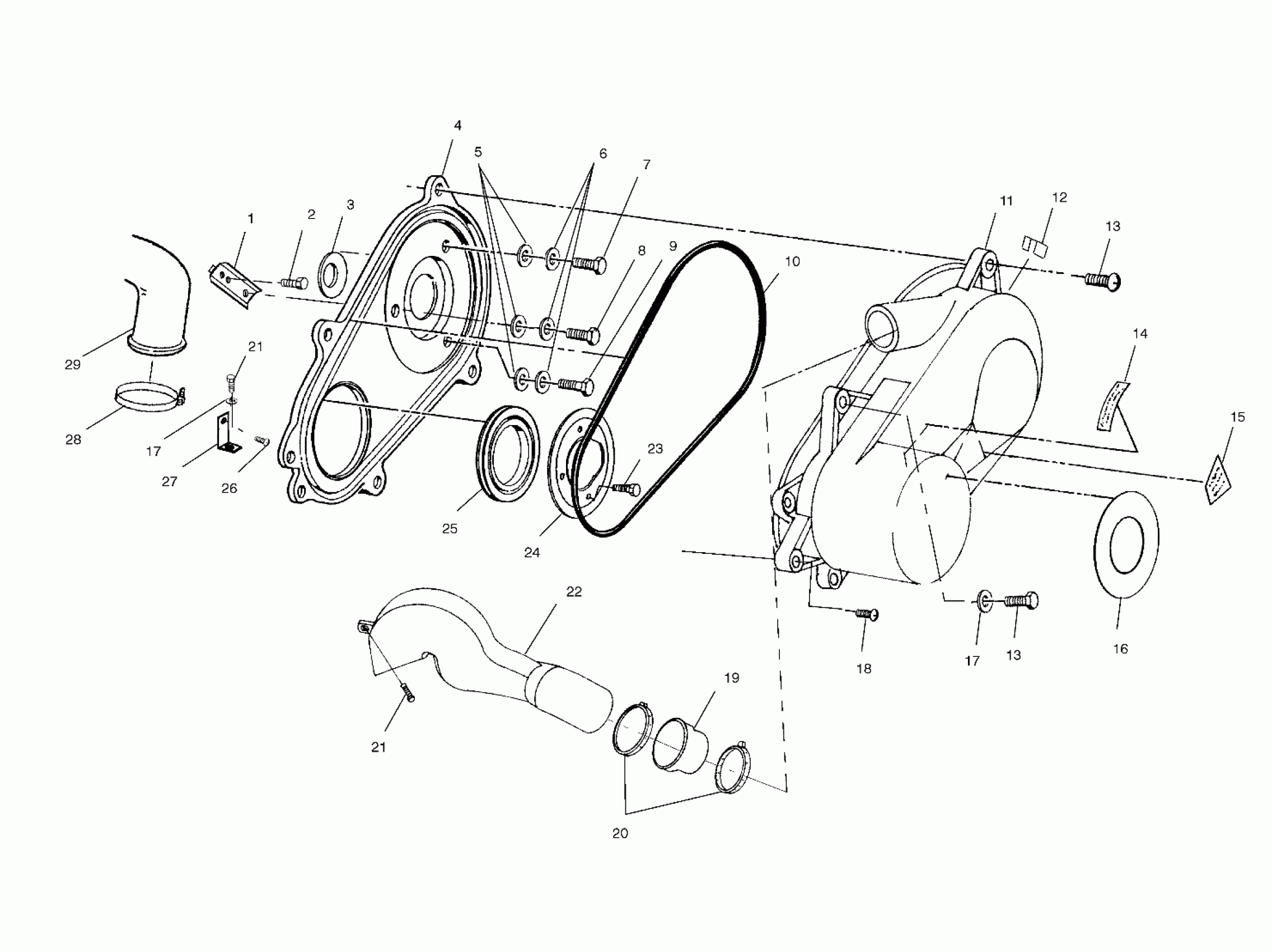

Polaris SPORTSMAN 500 - A00CH50AE CLUTCH COVER - A00CH50AA (4954805480C007) Diagram

#

Description
Price

1

BRKT,R.CLUTCH CVR,BLK.

1040519-067

Unavailable

2

BOLT(10)

7512240

$3.99

3

SEAL,COVER CASE (If built before 3/13/00)

5410489

$13.59

3

SEAL-CLUTCH COVER,TRANSMISSION (If fuilt after 3/13/00)

5411901

Unavailable

4

COVER,CLUTCH,INNER,500,SVC,KIT (Incl. 13,18,26)

2201160

$121.41

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

6

WASHER(10)

7552605

$5.27

7

BOLT(10)

7512247

$2.39

8

BOLT(10)

7512277

$4.79

9

BOLT(10)

7512278

Unavailable

10

SEAL,CLUTCHCOVER

5521301

$30.88

11

COVER,CLUTCH-OUTER,HV,BLK (If built after 3/13/00)

5433451-070

$178.08

11

COVER-CLUTCH,OUTER,HV,ST-801 (If built before 3/13/00)

5433540

$175.99

12

CLIP,CLUTCH COVER(10)

7670051

$2.99

13

SCREW(10) (If built before 3/13/00)(Use 7512094 if built after 3/13/00)

7512093

$1.49

13

SCREW(10) (If built before 3/13/00)(Use 7512094 if built after 3/13/00)

7512093

$1.49

14

DECAL,WARNING,CLUTCH CVR (If built after 10/04/99)

7078689

Unavailable

14

DECAL,CLUTCH COVER Substituted by 7078689 (If built before 10/04/99)

7074946

Unavailable

15

DECAL,ENG/CLUTCH MOD. Substituted by 7078689 (If built before 10/04/99)

7077377

Unavailable

16

DECAL"AUTO./EBS",CLUTCH

7077666

Unavailable

17

WASHER(10)

7555935

$2.39

17

WASHER(10)

7555935

$2.39

18

SCREW(10) (If built before 3/13/00)(Use 7512278 if built after 3/13/00)

7512094

$1.59

19

BOOT,DUCT,HI-FLOW

5411489

Unavailable

20

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

21

BOLT(10)

7512232

$1.49

21

BOLT(10)

7512232

$1.49

22

DUCT,CLUTCH OUTLET,16.6 Substituted by 5433980 (If built before 3/01/00)

5432947

Unavailable

22

DUCT-CLUTCH OUTLET,16.6 (If built after 3/01/00)

5433980

Unavailable

23

Screw and Washer (See Crankcase Pg. D8, Ref. 6)

-------

Unavailable

24

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

25

Seal, Cover Case

5410575

Unavailable

26

SCREW(10)

7512095

$4.79

27

BRKT-CLUTCH COVER,BLK

5241156-067

Unavailable

28

CLAMP, NARROW BAND(10)

7080511

$4.79

29

Duct, Air Inlet (See Air Box Pg. B4, Ref. 9)

-------

Unavailable
