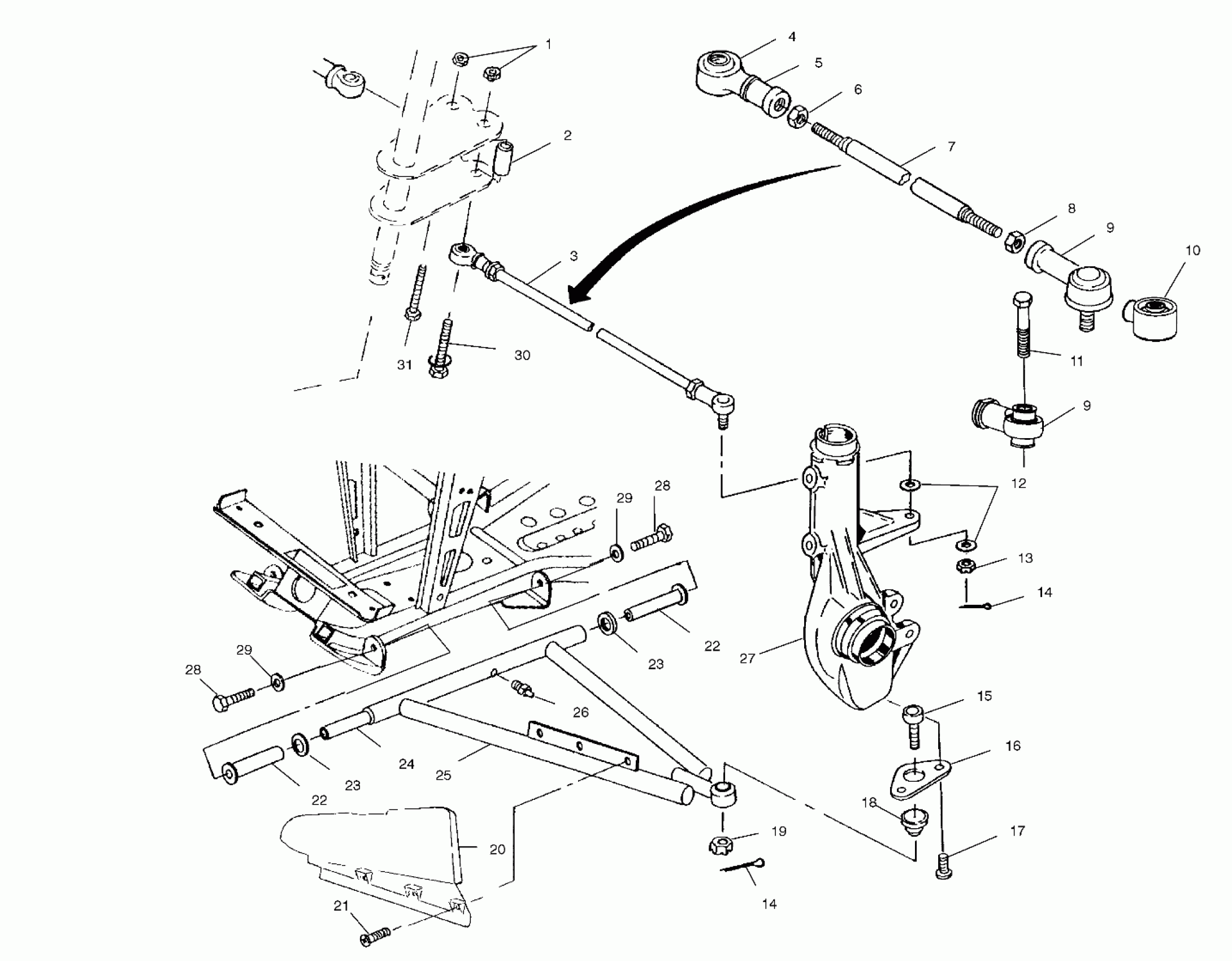

Polaris SPORTSMAN 500 - A00CH50AE A-ARM/STRUT MOUNTING - A00CH50AA (4954805480C004) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BUSHING

5333367

$6.63

3

TIEROD ASM,1/2-20X13.40 Substituted by 2201741 (Incl. 4-9)(If Built before 8/16/99)

1820567

$157.84

3

TIE,ROD,1/2-20X13.4,ASM. (Incl. 4-9)(If Built after 8/16/99)

1820805

Unavailable

4

SEAL,BOOT,ROD END,1/2 IN

5411291

Unavailable

5

ROD END,RH

7061034

$54.04

6

NUT-JAM(10)

7542711

$2.39

7

ROD,TIE

5020926

$39.99

8

NUT,LH,JAM(10)

7547028

$2.39

9

ROD,END,10MM,1/2-20LH,42 DEG (If built after 8/16/99)

7061054

Unavailable

9

ROD END,LH Substituted by 2201743 (If built before 8/16/99)

7061033

$56.65

9

ROD,END,10MM,1/2-20LH,42 DEG (If built after 8/16/99)

7061054

Unavailable

9

ROD END,LH Substituted by 2201743 (If built before 8/16/99)

7061033

$56.65

10

BOOT,SEAL,ROD END,10MM

5411920

Unavailable

11

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909 (If built after 8/16/99)

7517674

Unavailable

12

WASHER(10) (If built before 8/16/99)

7555806

$1.49

12

WASHER (If built after 8/16/99)

7556099

$1.59

13

NUT, CASTLE(10)

7546904

$4.79

14

PIN COTTER(10)

7661203

$1.49

14

PIN COTTER(10)

7661203

$1.49

15

BALL-JOINT,52 DEG,ATV

7080927

$76.89

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

Boot, Rubber

5410548

Unavailable

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

SHIELD,LH.CV,BLK.

5431837

Unavailable

20

SHIELD,RH.CV,BLK.

5431838

Unavailable

21

SCREW(10)

7512084

$1.49

22

BUSHING,A ARM,LONG

5433066

$5.01

22

BUSHING,A ARM,LONG

5433066

$5.01

23

BUSHING,A-ARM SPACER(10)

5020677

$10.39

23

BUSHING,A-ARM SPACER(10)

5020677

$10.39

24

Shaft, A-Arm

5020681

Unavailable

25

A-FRAME,KIT,LH (1541448)

2201607

$138.99

25

A-FRAME,KIT,RH (1541449)

2201608

$138.99

26

ZERK,FITTING,THREADED(10)

7080433

$1.49

27

Asm., Heavy Hubstrut (See Front Strut Pg. B8, Ref. 16)

-------

Unavailable

28

SCREW(10)

7512492

$1.49

28

SCREW(10)

7512492

$1.49

29

WASHER(10)

7552603

$1.49

29

WASHER(10)

7552603

$1.49

30

BOLT (10)

7517527

$29.99

31

BOLT(10)

7515415

$1.49
