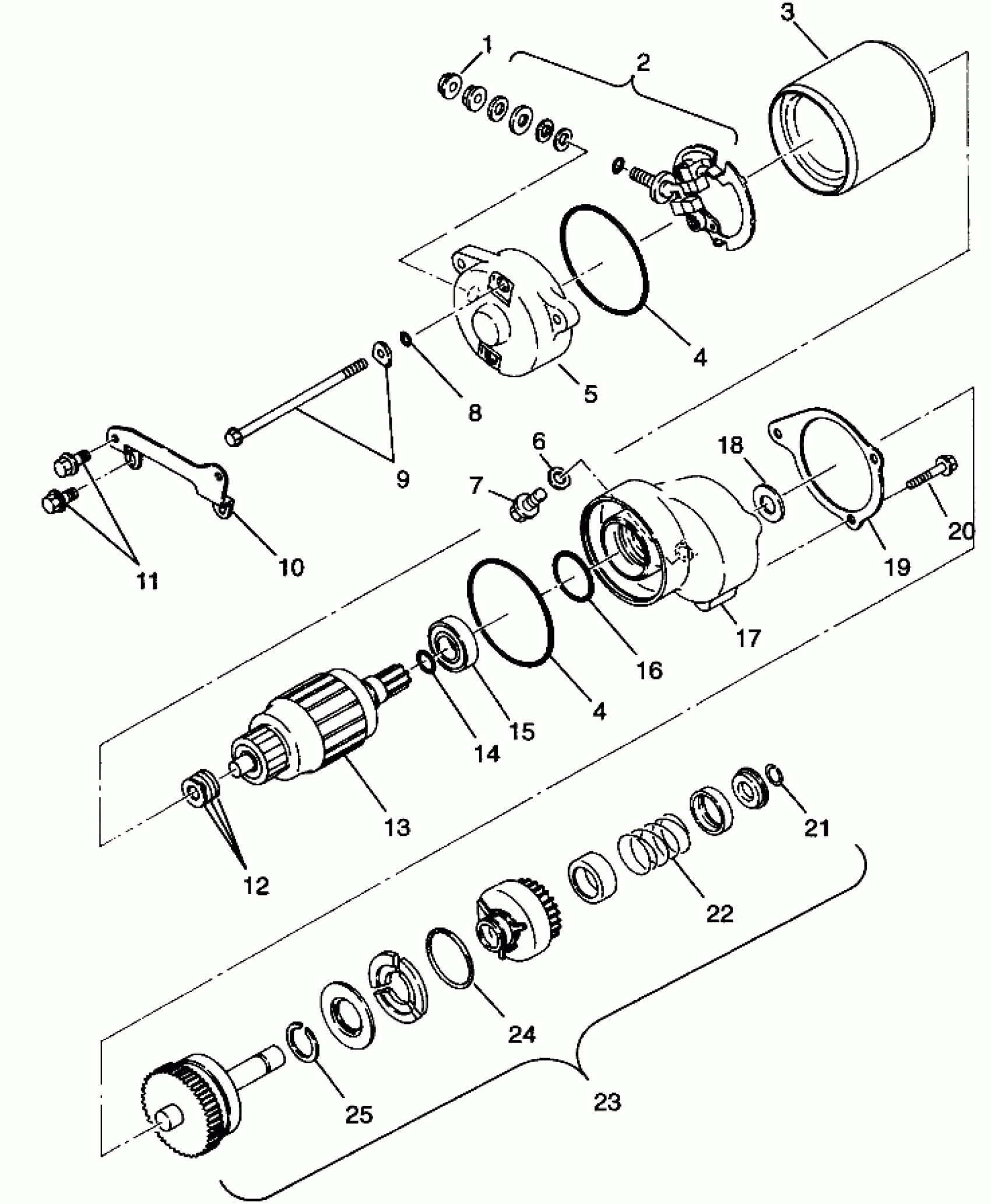

Polaris SPORTSMAN 4X4 - W968040 STARTING MOTOR Sportsman 4x4 W968040 (4935943594D006) Diagram

#

Description
Price

1

NUT, FLANGE(10)

3083649

$3.99

2

BRUSH,COMPL.2-POLE *

3084406

Unavailable

3

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 1, 2, 4, 5, 8-10, 12-17)

3084403

Unavailable

3

MOTOR,STARTING Substituted by 3085392 (Incl. 1-10, 12-18, 21-25)

3085282

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

COVER,REAR,STARTER(300-400) (Incl. 3, 16)

3085032

$82.39

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

8

O-RING

3084408

Unavailable

9

Bolt, Through

3084407

Unavailable

10

BRACKET Substituted by 3086780

3084214

Unavailable

12

Washer Set

3083754

$2.39

13

ARMATURE ASM. * (Incl. 14, 15)

3084404

$207.99

14

O RING

3083934

Unavailable

15

BALL BEARING

3083777

$31.99

16

O RING

3083741

$9.37

17

COVER, FRONT (Incl. 16)

3085305

$123.02

18

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

19

GASKET,STARTER(NON-ASBESTOS)

3085283

Unavailable

20

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

21

CLIP

3084409

$7.19

22

SPRING, RETURN

3084410

$2.47

23

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 18, 21-25)

3083647

Unavailable

24

SPRING, WEIGHT

3084411

$15.67

25

CLIP

3084412

$9.59
