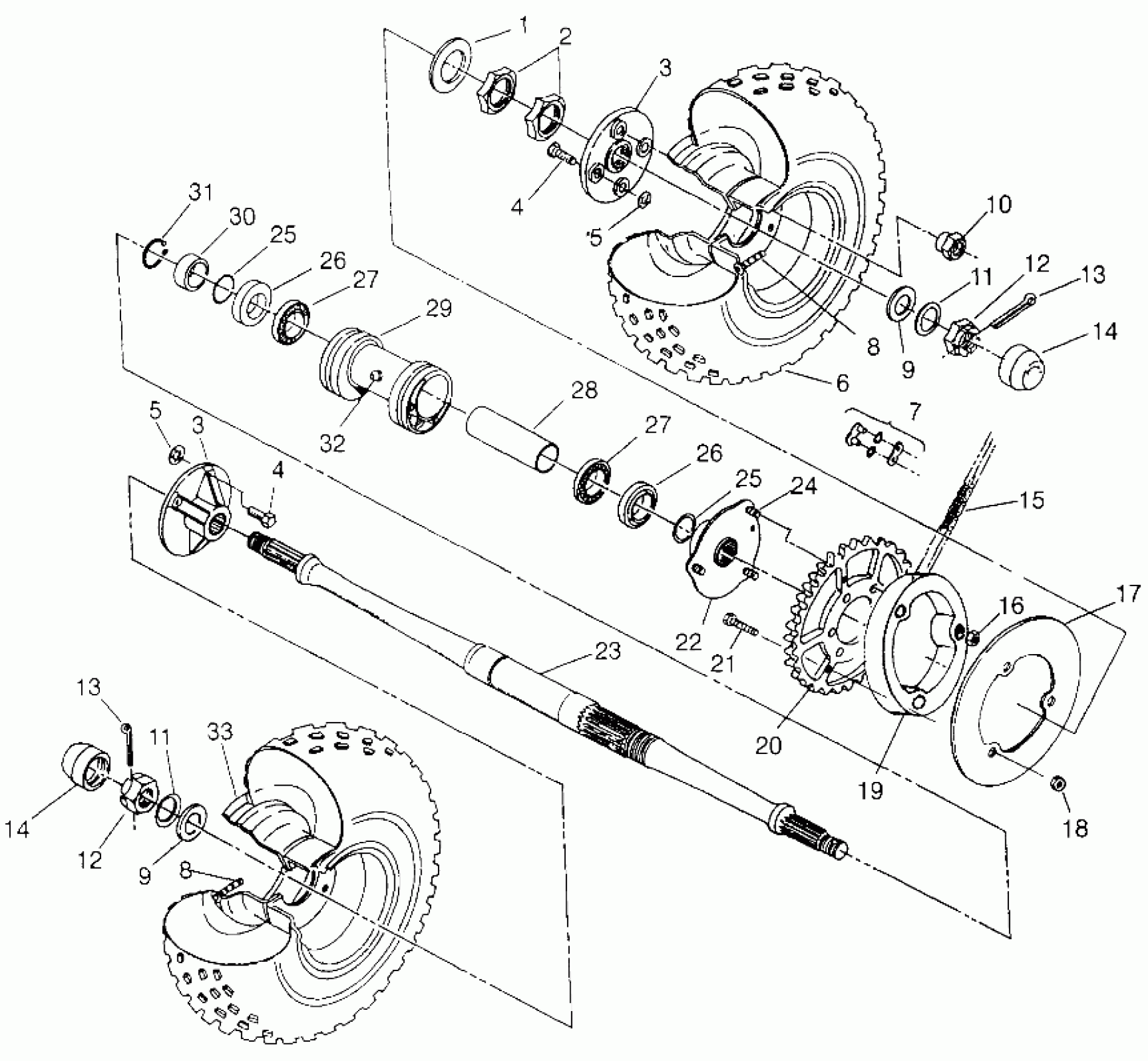

Polaris SPORTSMAN 4X4 - W968040 REAR WHEEL DRIVE Sportsman 4x4 W968040 (4935943594C006) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

KIT, MACH.HUB (Incl. 11)

2200341

$93.08

3

KIT, MACH.HUB (Incl. 11)

2200341

$93.08

4

BOLT, WHEEL(10)

7512673

$3.17

4

BOLT, WHEEL(10)

7512673

$3.17

5

PUSHNUT, BOLT(10)

7670081

$3.97

5

PUSHNUT, BOLT(10)

7670081

$3.97

6

TIRE,R.,AT25X11-10,TRACKER (25x11x10)

5410948

Unavailable

7

CONNECTOR LINK

3225024

$24.27

8

VALVE-RIM

1525017

$6.46

8

VALVE-RIM

1525017

$6.46

9

WASHER(10)

7555745

Unavailable

9

WASHER(10)

7555745

Unavailable

10

NUT, WHEEL(10)

7542714

$1.59

11

WASHER, CONE(10)

7555796

$7.94

11

WASHER, CONE(10)

7555796

$7.94

12

NUT, CASTLE(10)

7543005

Unavailable

12

NUT, CASTLE(10)

7543005

Unavailable

13

PIN, COTTER(10)

7661404

$4.76

13

PIN, COTTER(10)

7661404

$4.76

14

DUSTCOVER, HUB

5411164

$28.32

14

DUSTCOVER, HUB

5411164

$28.32

15

CHAIN, DRIVE, 84P Substituted by 3224056-084 (Incl. 7)

3224047

$145.70

16

NUT LOCK(10)

7542403

Unavailable

17

GUARD,SPKT,34T

5211617-067

$41.27

18

NUT-LOCK(10)

7542439

$1.19

19

SPACER-SPROCKET GUARD

5630586

Unavailable

20

SPROCKET,34T,(ATV)

3222068

$109.99

21

BOLT(10)

7515540

$4.76

22

SPROCKET HUB ASM. (Incl. 24)

1520170

Unavailable

23

AXLE, REAR

5020789

Unavailable

24

STUD(10)

7515513

$1.19

25

O RING, 1 5/16(10)

5410415

Unavailable

25

O RING, 1 5/16(10)

5410415

Unavailable

26

SEAL, REAR AXLE

3610013

Unavailable

26

SEAL, REAR AXLE

3610013

Unavailable

27

Bearing, Ball

3515501

$27.78

27

Bearing, Ball

3515501

$27.78

28

TUBE,BEARING SPACER

5010204

Unavailable

29

HOUSING, AXLE

5130663

Unavailable

30

SPACER,BEARING

5010206

Unavailable

31

RING, SNAP(10)

7710405

$4.76

32

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

33

RIM,REAR,(SPORTSMAN)

1520183-067

Unavailable
