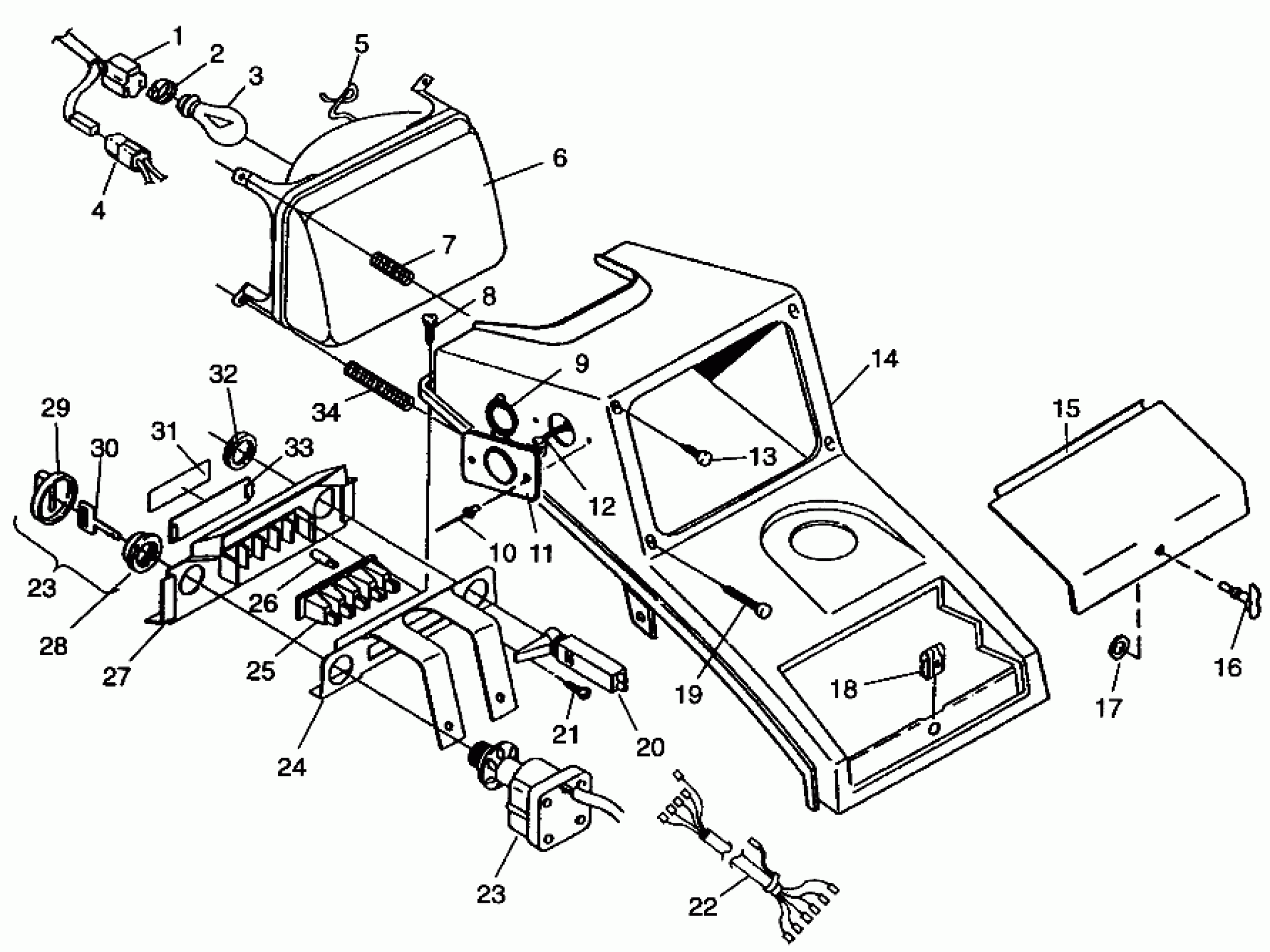

Polaris SPORTSMAN 4X4 - W968040 HEADLIGHT Sportsman 4x4 W968040 (4935943594B001) Diagram

#

Description
Price

1

HARNESS, HEADLIGHT

2460424

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

Unavailable

4

HSG,DUAL,FEMALE

4040024

$3.97

5

RETAINER,H/L BULB

4032063

Unavailable

6

H/L ASM,W/BULBSEAL (Incl. 3, 5)

4032065

Unavailable

7

SPRING-ADJ

4032002

Unavailable

8

SCREW(10)

7512017

$4.76

9

COVER,12VOLT PLUG

5411081

Unavailable

10

RIVET(50)

7621334

$1.49

11

POWERPLUG ASM,12V

2410025

Unavailable

12

HARNESS,12V OUTLET *

2460471

Unavailable

12

Harness, Main Wire w/Conn. + (See Pg. NO TAG, Ref. NO TAG) NOTE: Order part numbers marked "

----

Unavailable

13

SCREW, ADJ.(10)

4032003

$5.99

14

COVER,OILTANK/HL,W/HOLE

5431660

$65.87

15

DOOR,ACCESS,BLK.

5431201-070

$61.90

16

FASTENER, 1/4 TURN(10)

7670064

$6.19

17

RING,SPLIT RETAINER(10)

7670065

$1.98

18

RECEPTACLE,CLIP-ON(10)

7670066

$3.81

19

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

20

KIT-CHOKE CONTROL

2200188

$28.32

20

CABLE, CHOKE

7080371

$97.13

21

SCREW, SEM(10)

7511862

Unavailable

22

HARNESS,H/L,W/ CON (See Footnote with Ref. 12)

2460592

Unavailable

23

SWITCH,IGN.W/ CON NOTE: Ignition key may be ordered by sing the 4 digit number on the ignition switch. (

4110209

Unavailable

23

SWITCH, IGNITION * (Incl. Key)

4110194

Unavailable

23

SWITCH,IGN.W/ CON NOTE: Ignition key may be ordered by sing the 4 digit number on the ignition switch. (

4110209

Unavailable

23

SWITCH, IGNITION * (Incl. Key)

4110194

Unavailable

24

BRKT, IGN. PANEL

5220965-067

Unavailable

25

STRIP, SOCKET

4032037

$26.98

26

BULB

4030042

$8.08

27

PANEL, IGNITION

5430995

Unavailable

28

NUT,IGN.SWITCH

5432090

Unavailable

29

COVER, KEY Substituted by 5433534

5431964

$13.75

30

KEYBLANK,ATV IGN,31 SER. (See Footnote)

4110141

Unavailable

31

DECAL, PANEL [No Longer Available]

7072528

Unavailable

32

Nut

7080229

$19.84

33

LENS ASM,PILOT LIGHT (Incl. 31)

2652049

Unavailable

34

SPRING,ADJ.

4032041

Unavailable
