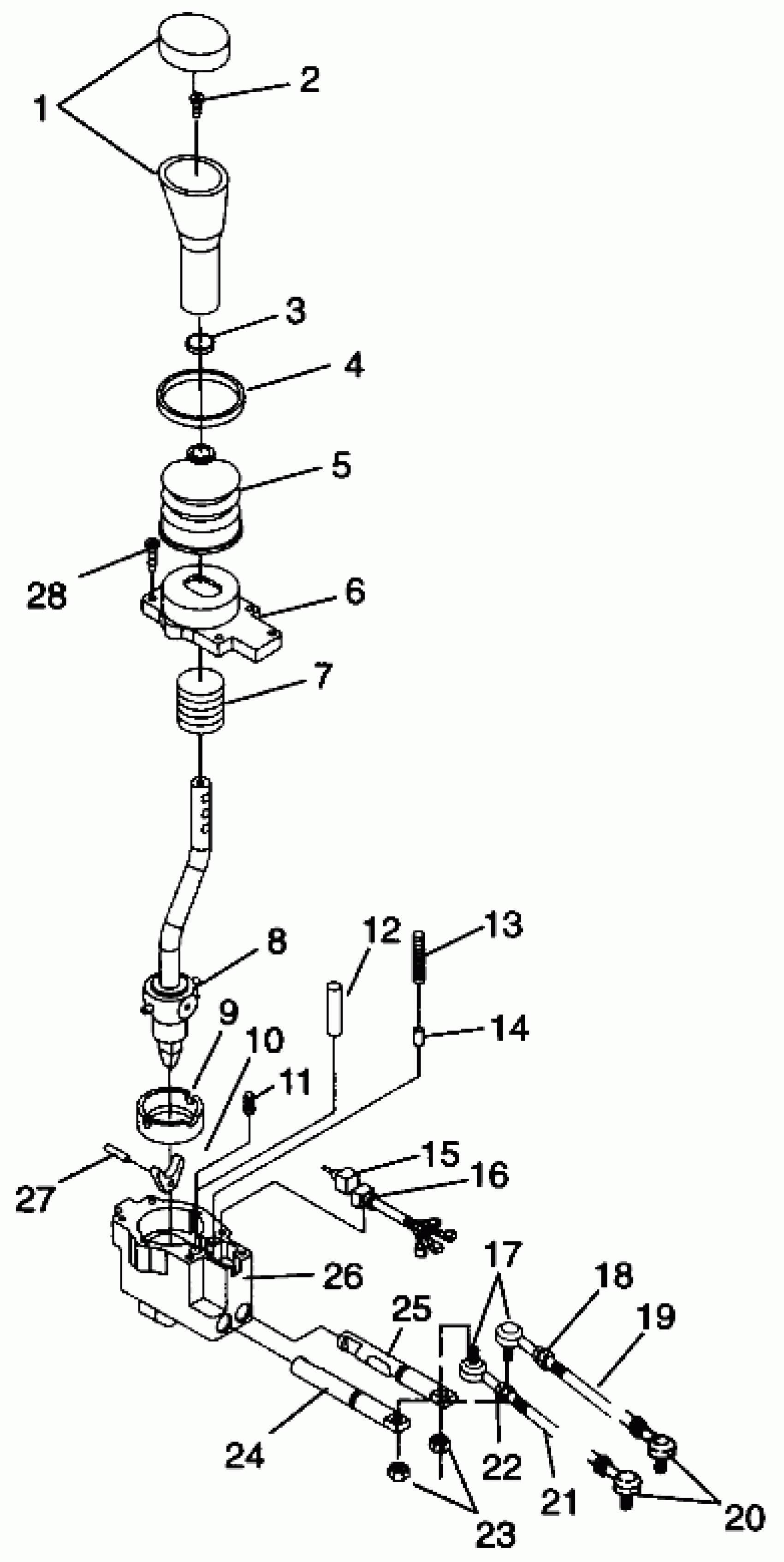

Polaris SPORTSMAN 4X4 - W968040 GEAR SELECTOR Sportsman 4x4 W968040 (4935943594C010) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR,(400) * (Incl. 1-16, 24-28)

1341179

Unavailable

-

SELECTOR ASM,GEAR,W/ CONN (Incl. 1-16, 24-28)

1341194

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$74.79

6

COVER,GEAR SELECTOR

3233213

Unavailable

7

SPRING,HOLDING

3233158

Unavailable

8

HANDLE,(SUBASSEMBLY)

3233163

Unavailable

9

CUP,BEARING

3233063

$15.99

10

INTERLOCK,BUTTERFLY

3233084

Unavailable

11

SPRING,CENTERING

3233083

Unavailable

12

PIN, STOP

3233062

Unavailable

13

SPRING,DETENT

3233069

Unavailable

14

BULLET,DETENT

3233060

$64.99

15

SWITCH,GEAR SELECTOR *

3233223

Unavailable

15

SWITCH,GEAR SELECTOR (See Footnote above Ref. 1)

3233369

Unavailable

16

STRAP, WIRE

3233090

$2.86

17

ROD END,RH,6MM. (6mm)

7061014

$65.99

18

NUT(10) (6mm)

7546702

$1.49

19

ROD,HI-RA.SHIFTLINK

5020729

Unavailable

20

ROD END,LH,6MM. (6mm)

7061013

$65.99

21

ROD,LOW-RA.SHIFTLINK

5020730

Unavailable

22

NUT(10) (6mm)

7546701

$3.99

23

NUT(10) Substituted by 7546703

7546707

Unavailable

24

SLIDE ASM,LOW

3233218

Unavailable

25

SLIDE ASM,HIGH/REV

3233217

Unavailable

26

BODY,GEAR SELECTOR

3233216

Unavailable

27

PIN,INTERLOCK

3233070

Unavailable

28

SCREW Substituted by 3233498

3233085

Unavailable
