Description

Price

1

BOLT(10)

7515321

$1.49

2

DISC, BRAKE Substituted by 5242935

5211326

$89.03

3

SEAL, FR. HUB

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

1520214

$354.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

8

HUB ASM,W/BRG.RACE (Incl. 3, 7, 14)

1520182

Unavailable

9

Cage, Roll

3250028

$218.56

10

ROLLS

3250010

$35.99

11

SPRING,GARTER

3250032

$17.59

12

SPACER Substituted by 1321814

3250031

$24.99

13

Cam

3250030

$198.48

14

STUD(10)

7515523

$3.19

15

PLUG,PIPE

7052045

$12.79

16

TIRE,FR(25X8-12) (25x8x12)

5410947

Unavailable

17

HUB ASM,(3-LOBE)W/BRG.RACE (Incl. 3, 7, 14)

1520227

Unavailable

18

CAP,HUB,3-LOBE,(AWD) Substituted by 5432611

5432347

$13.89

19

SCREW(10)

7517250

Unavailable

20

CAP, HUB

5431368

$23.99

21

O RING

5410470

$2.41

22

RING,RETAINING(10)

7710436

$4.79

23

NUT,LH THREAD

7543204

Unavailable

23

NUT,RH THREAD

7543201

Unavailable

24

WASHER(10)

7555903

Unavailable

25

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

26

RIM,FRONT(SPORTSMAN) Substituted by 1520269-067

1520179-067

Unavailable

27

VALVE-RIM

1525017

$5.59

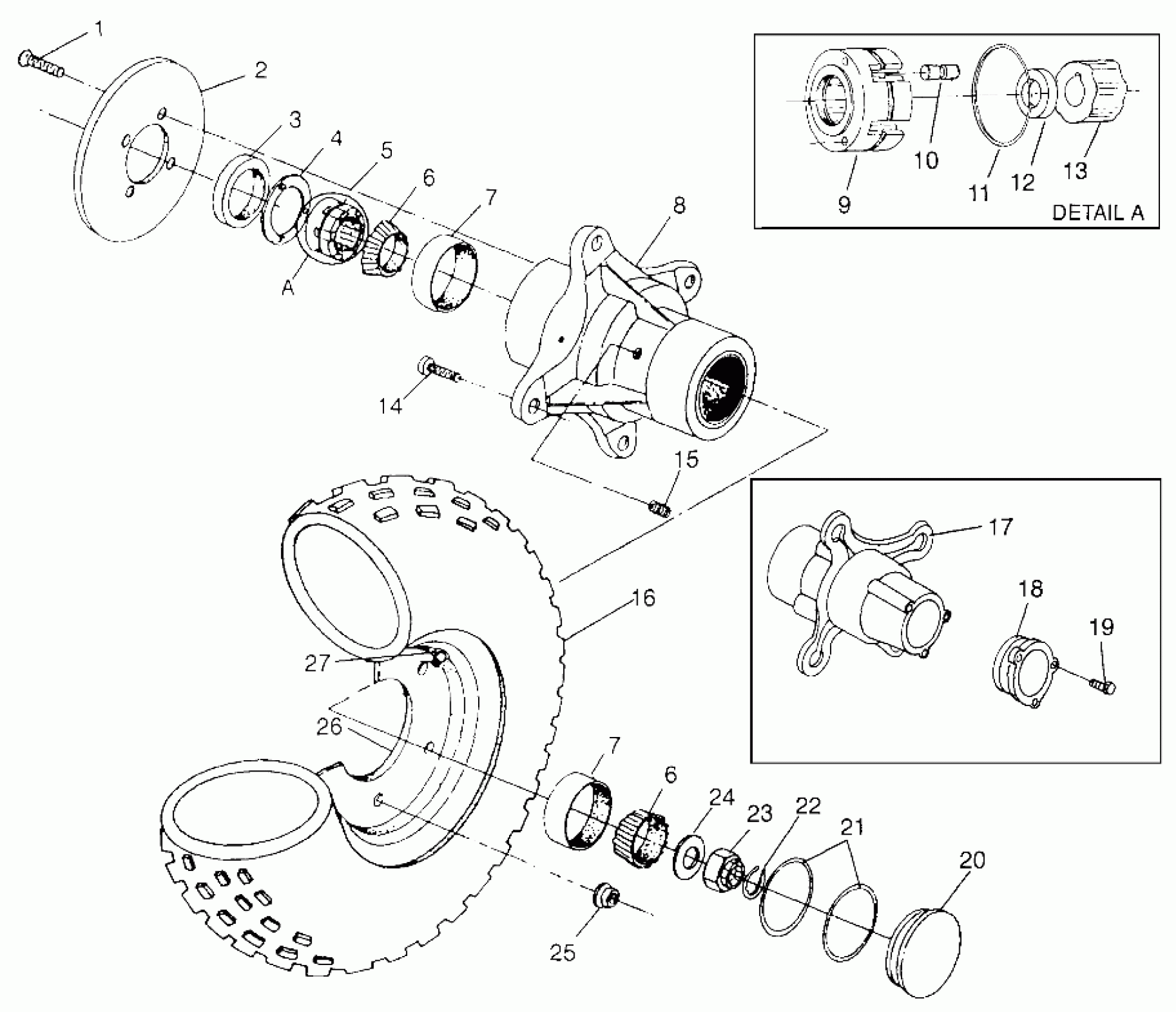

Polaris SPORTSMAN 4X4 - W968040 FRONT WHEEL Sportsman 4x4 W968040 (4935943594B007) Diagram

BOLT(10)

DISC, BRAKE Substituted by 5242935

SEAL, FR. HUB

Plate, Armature

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

HUB ASM,W/BRG.RACE (Incl. 3, 7, 14)

Cage, Roll

ROLLS

SPRING,GARTER

SPACER Substituted by 1321814

Cam

STUD(10)

PLUG,PIPE

TIRE,FR(25X8-12) (25x8x12)

HUB ASM,(3-LOBE)W/BRG.RACE (Incl. 3, 7, 14)

CAP,HUB,3-LOBE,(AWD) Substituted by 5432611

SCREW(10)

CAP, HUB

O RING

RING,RETAINING(10)

NUT,LH THREAD

NUT,RH THREAD

WASHER(10)

NUT-HXFL-3/8-24 B ZTB P-A

RIM,FRONT(SPORTSMAN) Substituted by 1520269-067

VALVE-RIM
